Framing a Pre-hung Interior Door




If you're building a new partition wall that includes an interior door, you'll need to frame the door opening properly. A properly constructed door opening reinforces the wall above and on either side of the door.


You can save yourself some potential headaches by purchasing the pre-hung door unit you plan to install before beginning the framing. That way, you can be sure the opening you build is about 3/4 inch wider than the pre-hung door unit. This allows enough room to make the necessary adjustments. In moist basements, it's a good idea to use pressure-treated wood for the sole plate.




WHAT YOU NEED FOR THIS JOB:

TOOLS:

MATERIALS:

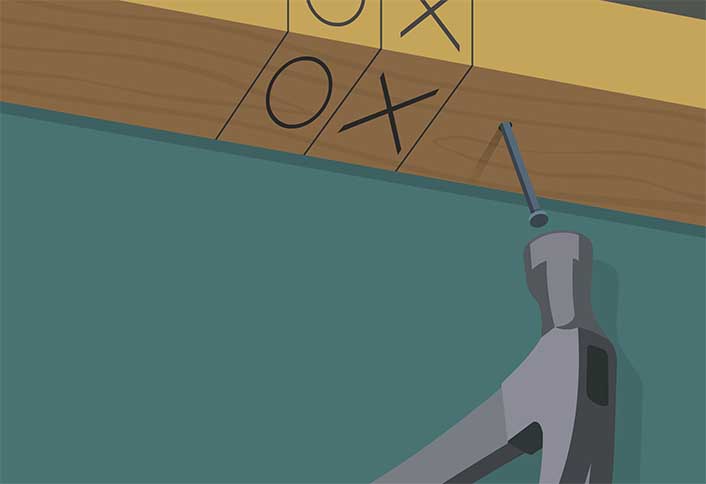

Step 1: Snap chalk line and nail top plate

Step 1: Nail the top plate through the ceiling On the ceiling, snap a chalk line to indicate where the top plate of the new wall will be installed. Cut the material for the top plate to length, then nail the top plate through the ceiling into the ceiling joists or blocking.

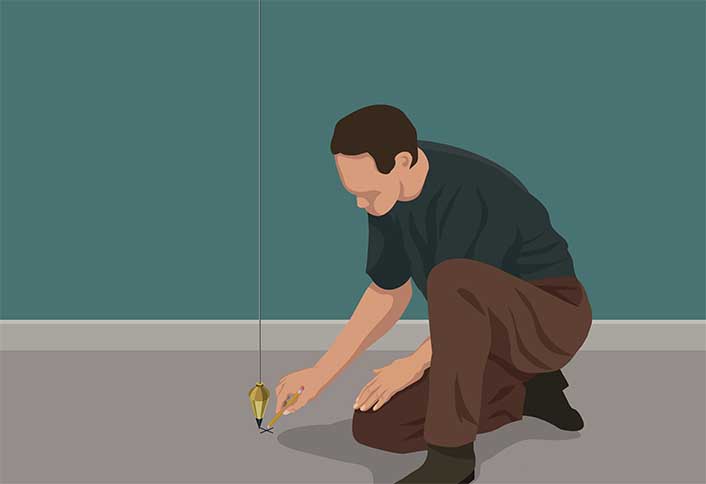

Step 2: Nail sole plate

Step 2: Mark the floor using plumb bob

Use a plumb bob to mark the floor where the sole plate will be installed. Nail the sole plate to the floor, driving the nails into the floor joists or blocking. Remember; don't nail the sole plate to the floor between the jack stud locations because this portion of the plate will be removed before the door is installed.

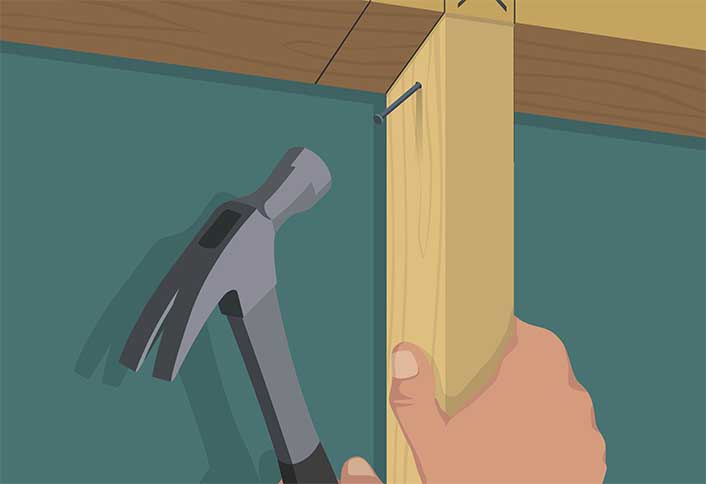

Step 3: Cut king studs

Step 3: Measure and cut the king studs Measure and cut the king studs, and position them at the markings. Drive nails at a 45-degree angle to make a toenailed joint, or you can attach the studs with metal connectors.

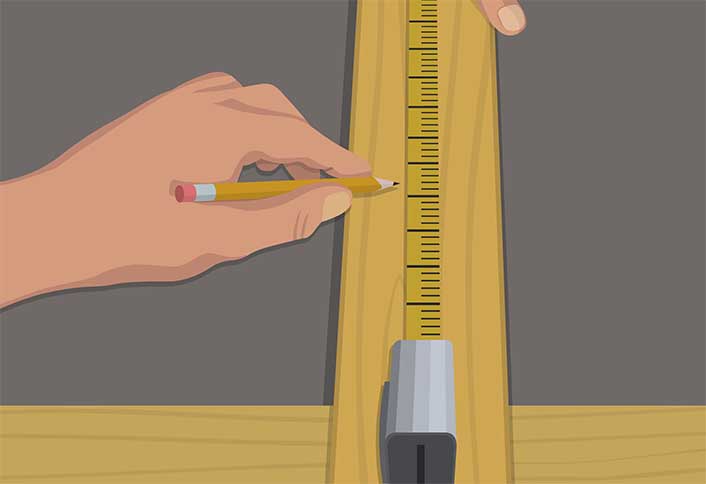

Step 4: Mark and cut jack studs

Step 4: Mark the jack stud and cut them to size Measure the length of the jack studs to 80 7/8 inches. Mark and cut them to size.


Step 5: Construct header

Step 5: Cut the header to fit between the king studs Make a header by sandwiching two 2x4s around a 1/2-inch piece of plywood. Cut the header to fit between the king studs. Install a cripple stud between the header and the top plate, halfway between the king studs. Toenail the cripple stud to the top plate and the side of the header.


Step 6: Nail jack studs into place

Step 6: Nail through the king studs into the header Position the jack studs against the inside of the king studs, and nail them in place. Nail through the king studs into the header.


Step 7: Cut portion of sole plate

Step 7: Saw through the sole plate at the inside edges of the jack studs Saw through the 2x4 sole plate at the inside edges of the jack studs. Remove the cut portion of the plate.
