Installing a New Flush Valve in Your Toilet


The flush valve, located in the middle of the toilet tank, includes the overflow tube, the hole where water enters the bowl when the toilet is flushed and the rubber tank ball or flapper that covers the hole when the tank is full. A broken flush valve prevents your toilet tank from forming a seal to hold water in the tank. If you hear your tank leaking, first try replacing the flapper. If that doesn't work, replacing your flush valve will help conserve water and keep your toilet operating properly.

WHAT YOU NEED FOR THIS JOB:

TOOLS:

MATERIALS:


Step 1: Drain and Remove Toilet Tank

Step 1: Drain and Remove Toilet Tank 1.  Turn off the water at the shutoff valve and drain tank by flushing the toilet.

2.  Disconnect the water supply line with an adjustable wrench.

3.  Unscrew the tank bolts using a screwdriver and an adjustable wrench.

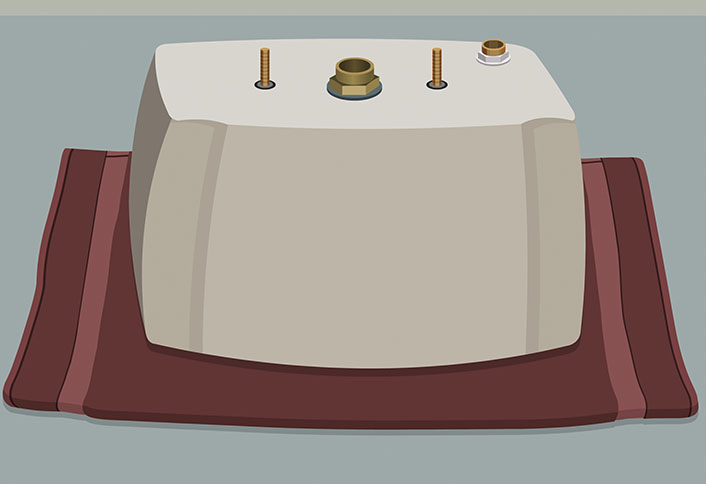

4.  Remove the toilet tank - you may require help removing the tank because it is
     heavier than it appears - and gently place it upside down on an old towel
     or rug.


Step 2: Install New Flush Valve

Step 2: Install New Flush Valve

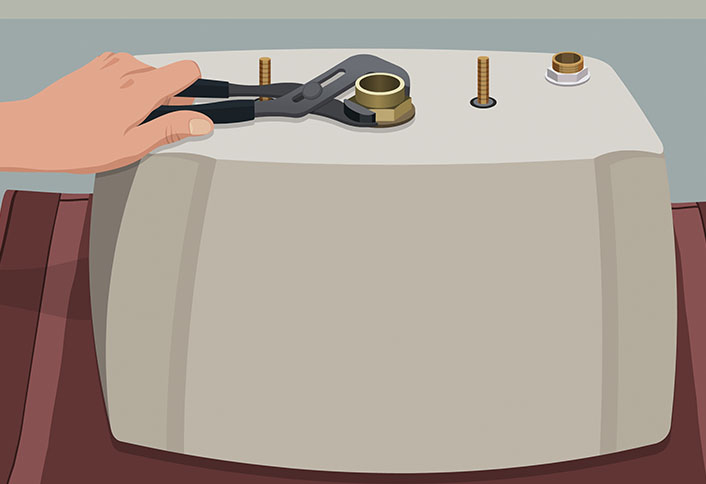

1.  Unscrew the spud nut with a spud wrench or a pair of slip joint pliers and remove
     the old flush valve.

2.  Slide the cone washer onto the tailpiece of the new flush valve - the beveled side
     of the cone washer should point toward the end of the tailpiece - and insert the
     flush valve into the tank opening so that the overflow pipe faces the fill valve.

3.  Screw the spud nut back onto the tailpiece of the new flush valve, tighten with a
     spud wrench or a pair of slip joint pliers, and place the soft spud washer over
     the tailpiece.



Step 3: Replace Toilet Tank and Replace Flapper

Step 3: Replace Toilet Tank and Replace Flapper

1.  Reinstall the toilet tank and connect water supply line.

2.  Replace the flapper and reconnect the refill tube to the top of the overflow tube.

3.  Turn on the water and check for leaks.
