Installing a New Fill Valve in Your Toilet

1-2 hours

Repair worn-out fill valves to keep your toilet running smoothly and quietly

Homedepot Image

The fill valve is the part of the toilet that is responsible for refilling the tank after each flush. Over time, a fill valve may become worn, or out of alignment due to wear on the valve's components.

If your fill valve leaks, or if water continues to run after you flush, it may be time to replace the fill valve.

This guide will show how to make this quick and inexpensive adjustment to your toilet.

We can help with installation solutions for your bathroom. Click here to learn more.

WHAT YOU NEED FOR THIS PROJECT

1
Disconnect supply line
Homedepot Image

• Turn off the water at the shutoff valve and drain the tank by flushing the toilet.
• Place a small basin below the toilet tank to catch any excess water left in the tank, and soak up any remaining water in the tank with a sponge.

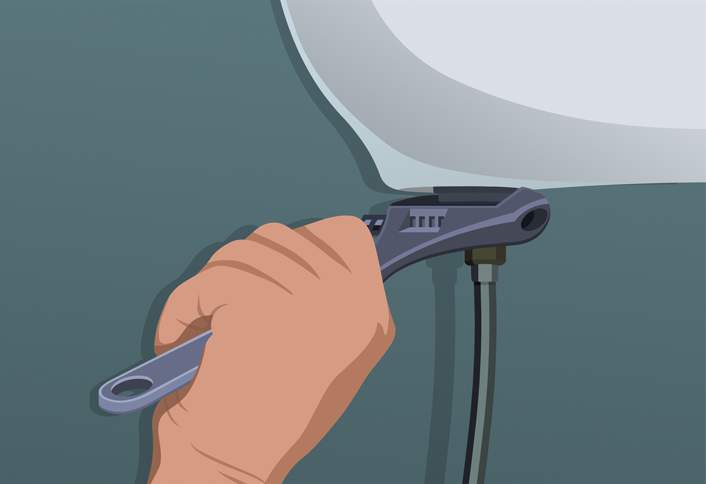

• Disconnect the old supply line.

Homedepot Image



2
Remove old fill valve
Homedepot Image

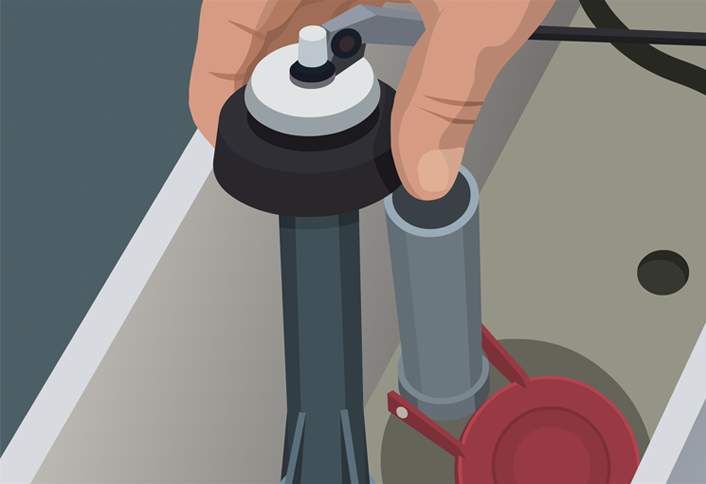

Remove the fill valve nut, and then remove the fill valve.

3
Adjust new fill valve
Homedepot Image

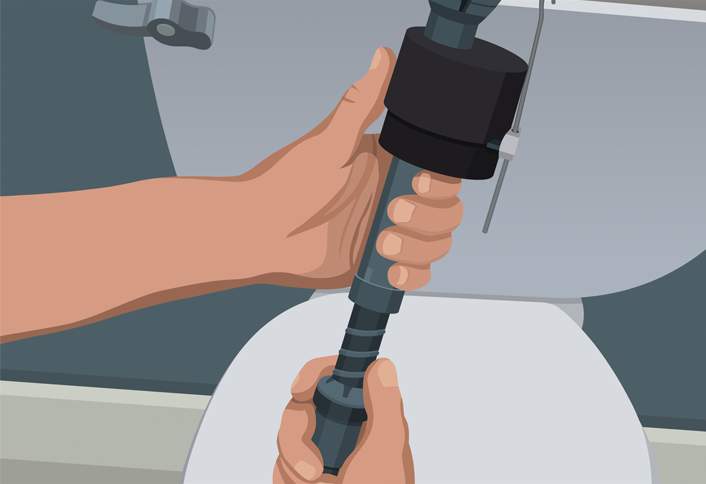

Adjust the height of the valve so the marking on top of the valve is at least 1 inch above the overflow tube.

4
Insert new fill valve and connect supply line
Homedepot Image

• Place the valve shank onto the fill valve, then insert the fill valve into the tank opening.
• Push down on the valve shank, and tighten the locknut one-half turn beyond hand tight.
• Connect the supply line.

5
Attach refill tube
Homedepot Image

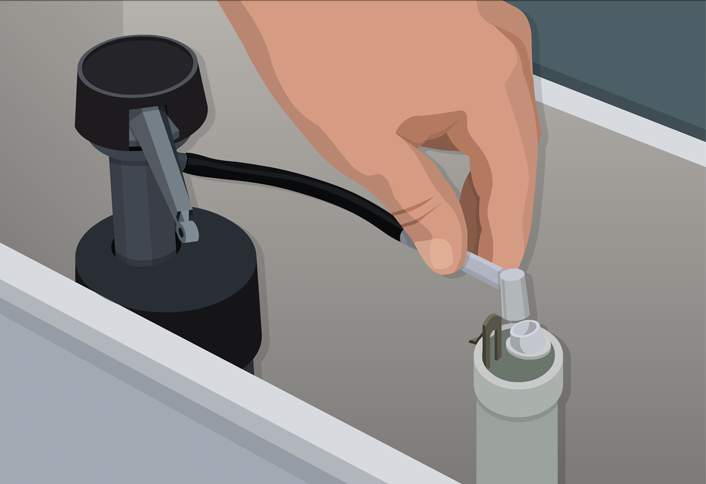

Inside the tank, attach the refill tube (trim if necessary to avoid any kinks) and angle adaptor to the overflow.

6
Adjust water level
Homedepot Image

• Turn the water back on.
• Allow the tank to fill.

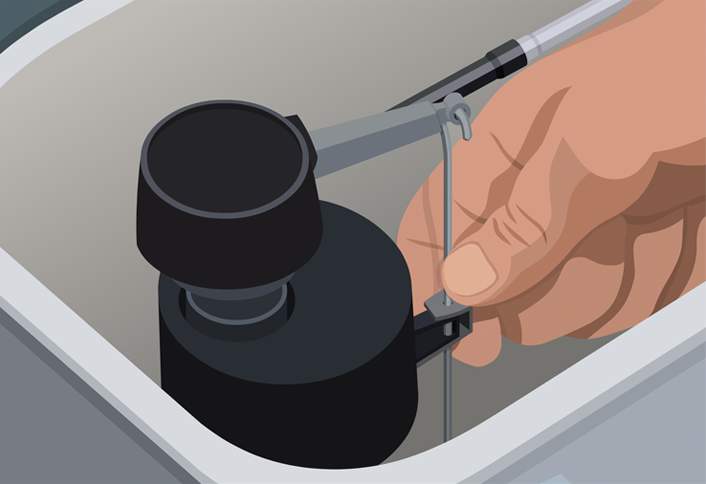

• Adjust the water level by squeezing the adjustment clip and moving the float up or down. On some models the float is adjusted using a threaded screw sitting next to the float.
