Installing a Pedestal Sink


Most pedestal sinks actually hang from a bracket attached to a mounting brace (or framing) in the wall; the pedestal is only a secondary support. It's likely the process of installing the framing and patching the wall afterward will be more time consuming than installing the sink itself. Take care of brace installation and patching and painting the wall prior to sink installation. You may be able to hide the plumbing behind the pedestal if the plumbing is installed in a tight arrangement and the pedestal is wide. You may decide to hide only the trap and leave the supply lines visible on either side. If you go that route, using ornate stop valves and solid chrome supply tubing will result in an attractive appearance.

WHAT YOU NEED FOR THIS JOB:

TOOLS:

MATERIALS:


Step 1: Install the mounting brace

Step 1: Install the mounting brace Follow manufacturer’s instructions for locating the sink brace. Cut a hole in the wall spanning from stud to stud and cut a piece of 2×8 to fit snugly between the studs. At this point, you may also choose to move the stop valves closer to the trap, in order to hide them behind the pedestal. Attach the brace with angle-driven screws. Patch the hole, sand smooth, and paint.


Step 2: Attach the mounting bracket

Step 2: Attach the mounting bracket Assemble the sink on top of the pedestal and hold against the wall to mark for the position of the mounting bracket. Anchor the bracket by driving screws into the 2×8 inside the wall. Check that the bracket is level as you attach it.


Step 3: Set the sink

Step 3: Set the sink

Install the faucet, most of the trap, and the pop-up assembly onto the sink. Set the sink onto the bracket. Check that the pedestal will fit; you may need to adjust the position of the bracket.

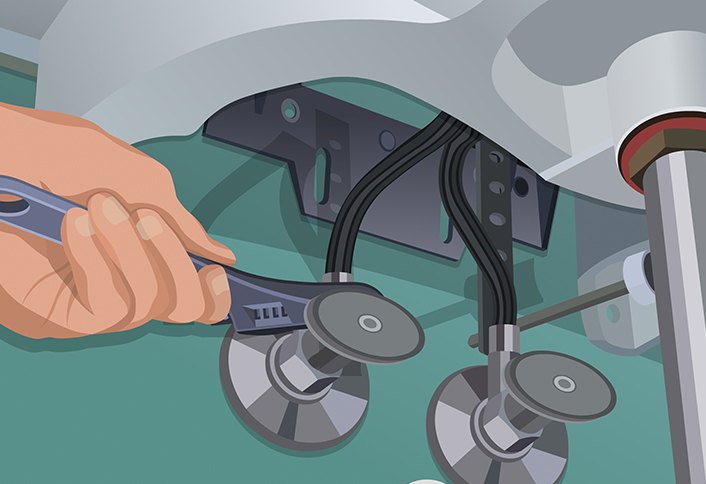

Step 4: Attach the plumbing

Step 4: Attach the plumbing Connect the trap and the supply lines. Turn on the water and check for leaks.


Step 5: Slip in the pedestal

Step 5: Slip in the pedestal You may need to gently lift the sink a bit as you slide the pedestal in place. Check again for leaks.


Step 6: Install the pedestal lag bolts

Step 6: Install the pedestal lag bolts Some pedestals attach to the floor using screws or bolts. Snug the screws, but don’t tighten too much or you could crack the pedestal.


Step 7: Connect the basin to the wall

Step 7: Connect the basin to the wall

If the sink attaches with screws, first drill pilot holes, then insert and alternately tighten the screws until just snug don’t overtighten.
