Glass Window Installation




The age-old problem with glass window panes remains the same today:  they can break. There are many issues that can occur while doing window replacement, window installation and window repair. Antique leaded-glass panes often loosen and rattle and modern panes exhibit some problems as well. A double pane may tend to fog if moisture gets between its layers, and a plastic pane will yellow over time. Whatever the problem, the tools you need to work on windows are few and simple. When cutting glass, always wear work gloves and safety goggles.



Look to The Home Depot Installation Services to help make your home projects easier. We provide professional home services with insured installation service providers to ensure that your project is done right and on time. View our variety of window home installation services and get started today.




WHAT YOU NEED FOR THIS JOB:

TOOLS:

MATERIALS:

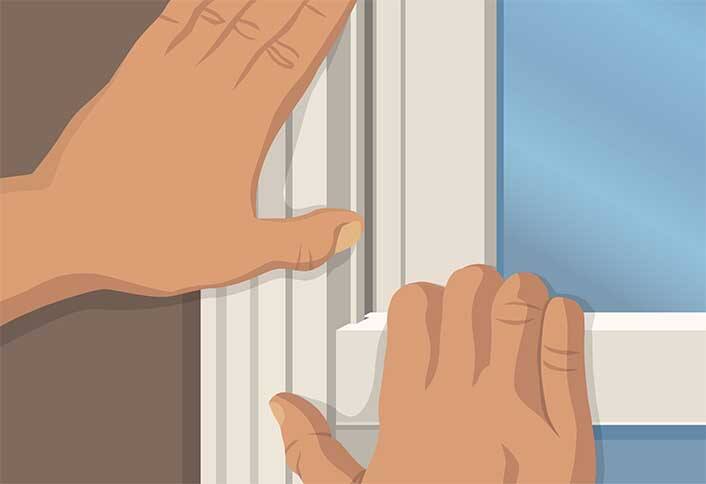

Step 1: Remove the window

Step 1: Push against the flexible vinyl channels to release the channel pins Remove the spring-loaded double-hung windows by pushing against the flexible vinyl channels to release the channel pins. Older double-hung windows can be repaired while the window remains in the frame.

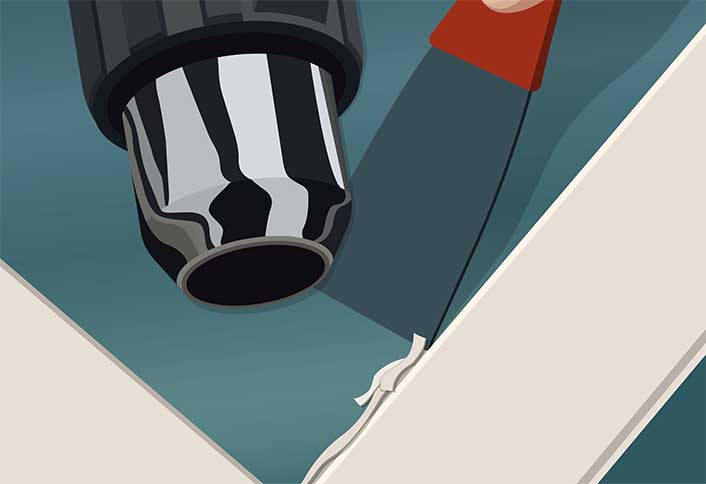

Step 2: Scrape away old putty

Step 2: Scrape away the soft putty with a putty knife With traditional glazing, soften the old putty with a heat gun or torch, being careful not to scorch the wood. Scrape away the soft putty with a putty knife. On newer windows, simply pry out the vinyl glazing strips.

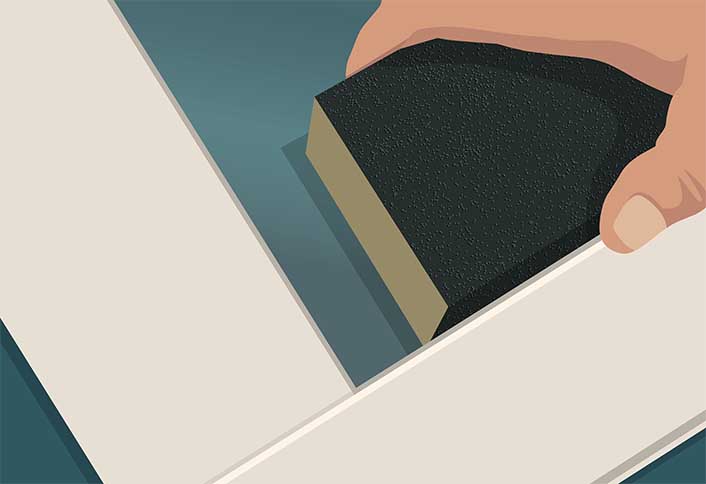

Step 3: Remove old glass and metal glazing points

Step 3: Sand the grooves to clean away the old paint and putty Remove the broken glass and metal glazing points from the frame; then sand the L-shaped grooves to clean away the old paint and putty. Coat the bare wood with a sealer and let dry.

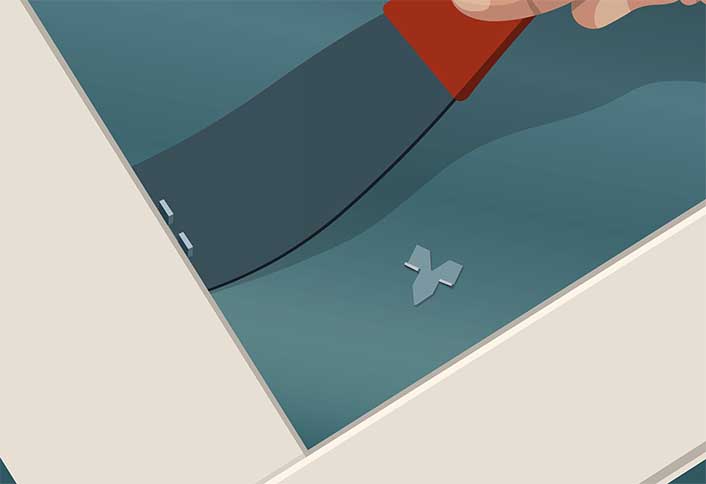

Step 4:Apply glazing compound and bed new glass

Step 4: Apply a thin layer of glazing compound in the primed grooves Apply a thin layer of glazing compound in the primed grooves. Press the glass lightly to bed it. Press in new glazing points every 10 inches with the tip of a putty knife. (Note: Do not put any downward pressure on the glazing points when inserting, or they could break the glass)

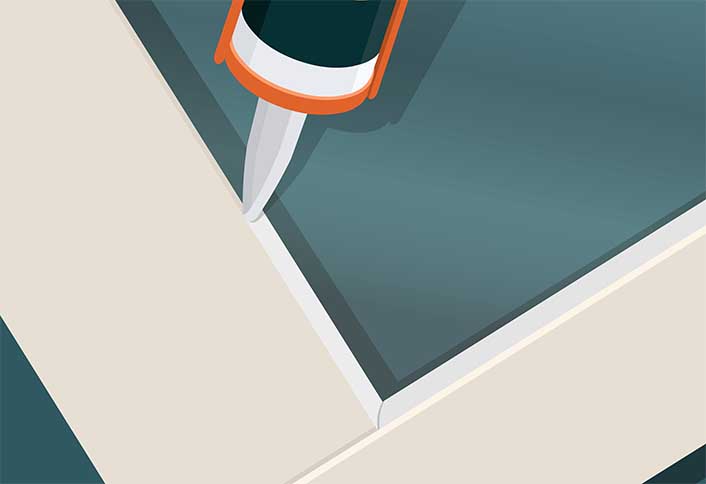

Step 5: Apply additional glazing compound

Step 5: Apply glazing compound Apply additional glazing compound. Move the tube tip along the edge of the glass while steadily squeezing the trigger. Smooth the glazing with a wet finger or cloth.

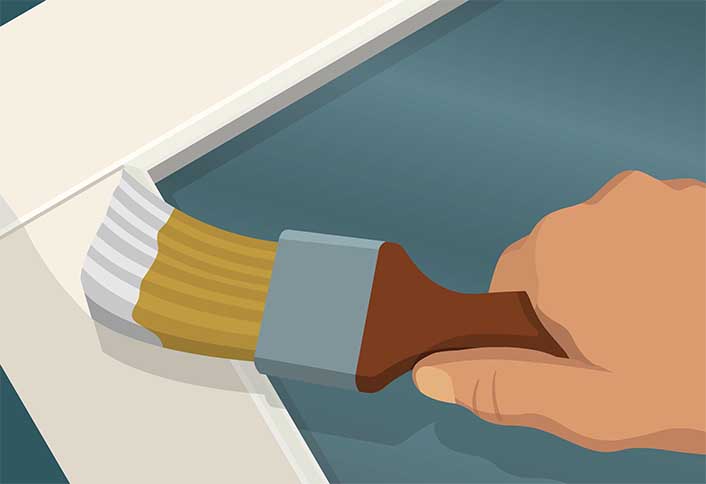

Step 6: Paint the window frame

Step 6: Latex glazing can usually be painted the same day Latex glazing can usually be painted the same day. Overlap the paint onto the glass by 1/16 inch to improve its weather seal.
