0784891326493

Model 9427P

Internet #100599270

Store SO SKU #1000114006

70 CFM Ceiling Exhaust Fan with 2 - 250-Watt Infrared Bulb Heater

$89.00 /each
  • Motor operates at 3.5 sones

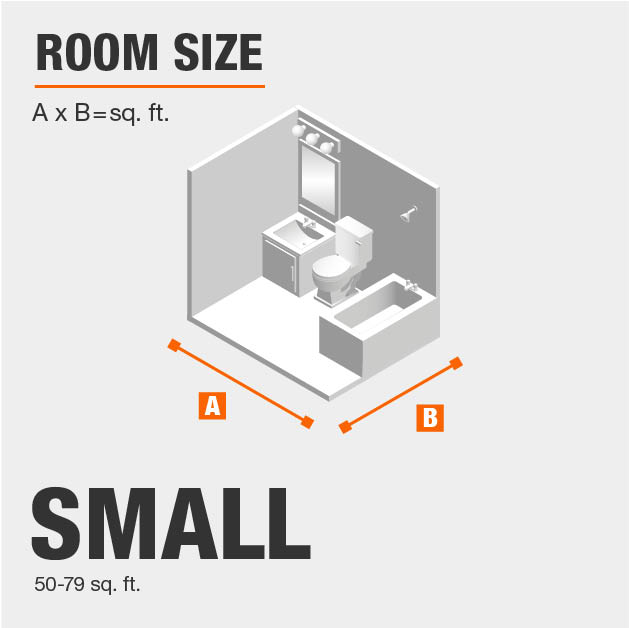

  • For ventilating rooms up to 60 sq. ft.
  • Uses two 250-watt R40 infrared bulbs (not included)

Frequently Bought Together

Product Overview

The NuTone 70 CFM White Exhaust Fan with Light and Heater conveniently offers ventilation and lighting in rooms up to 60 sq. ft. The permanently lubricated, removable motor operates at 3.5 sones. Use two 250-Watt R40 infrared bulbs (not included) with the fan. This UL listed heater features steel housing for durability.

  • White polymeric grille matches most decors
  • Steel housing offers durability
  • 70 CFM reduces moisture to help prevent mildew
  • 70 CFM at 3.5 sones
  • Permanently lubricated, removable motor assembly
  • Manages moisture in bathrooms up to 65 sq. ft.
  • 500-Watt heater provides comfort without turning up the central thermostat

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.

Specifications

Dimensions

Details

Warranty / Certifications

More Products With These Features

Search

Customer Questions & Answers

18 Questions28 Answers

Customer Questions & Answers

70 CFM Ceiling Exhaust Fan with 2 - 250-Watt Infrared Bulb Heater
70 CFM Ceiling Exhaust Fan with 2 - 250-Watt Infrared Bulb Heater

Ask your questions. Share your answers.



Clear Search Term


Sort By:
This question is from 70 CFM Ceiling Exhaust Fan with 2 - 250-Watt Infrared Bulb Heater

3 answers

The Specs say 3.5 sones.

This question is from 70 CFM Ceiling Exhaust Fan with 2 - 250-Watt Infrared Bulb Heater
Asked by
Erie, PA
Read all my Q&A
April 9, 2014
A couple of the reviews said the fan was quiet and I think one said the fan was loud.

The display at Home Depot said 4.0 sones is LOUD and 2.0 sones is fairly quiet. Is it loud or quiet?

3.5 sones seems pretty loud...(?)
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers (3)

July 27, 2014
Answer:
Loudness is very subjective, which is why they specify sones. If 3.5 sones seems loud to you then go for a lower sones unit.
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0

Asked by
New Jersey
Read all my Q&A
Home Improvement Profile: DIYer
July 6, 2014
Answer:
I just installed mine and it was very quiet. My old one sounded like an old industrial vent fan and made horrid sounds (probably bad bearings). The new one is about as loud as the cooling fan on a laptop.
+2points
2out of 2found this answer helpful.
Was this helpful?helpful2unhelpful0

April 9, 2014
Answer:
Thank you for your question regarding this bulb heater/fan unit. I can see why anyone would question the sone level since there is conflicting information. According to our spec sheet, the sone rating is 4.0. So let’s talk about sones for a moment. If the number is low, the fan will operate very quietly. Once you get past 3.0 sones, you will hear a definite difference. 4.0 sones are going to be Read More
Thank you for your question regarding this bulb heater/fan unit. I can see why anyone would question the sone level since there is conflicting information. According to our spec sheet, the sone rating is 4.0. So let’s talk about sones for a moment. If the number is low, the fan will operate very quietly. Once you get past 3.0 sones, you will hear a definite difference. 4.0 sones are going to be noticeable, but not unbearable. If you have further questions concerning the sone ratings, please dial 888-336-6151 and speak with a member of our Technical Support Department. Thanks, again. Read Less
+2points
2out of 2found this answer helpful.
Was this helpful?helpful2unhelpful0
This question is from 70 CFM Ceiling Exhaust Fan with 2 - 250-Watt Infrared Bulb Heater

3 answers

does this fan come with the fan,light, heater control switch

This question is from 70 CFM Ceiling Exhaust Fan with 2 - 250-Watt Infrared Bulb Heater
Asked by
jhiggins
October 21, 2011
+2points
2out of 2found this question helpful.
Was this helpful?helpful2unhelpful0

Answers (3)

Asked by
Andover, MA, USA
Read all my Q&A
April 3, 2012
Answer:
No it does not. That is an item that will have to be purchased separately.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Asked by
Nevada
Read all my Q&A
December 27, 2011
Answer:
Switch is sold seperately.
0points
1out of 2found this answer helpful.
Was this helpful?helpful1unhelpful1

October 21, 2011
Answer:
Thank you for your e.mail / request. The switch for the model 9427P must be purchased separately. This unit can be wired several ways, depending on how you wish it to operate. You can review these wiring options by accessing the Installation Instructions on our web site: www.nutone.com. In the upper right-hand corner is a Model Search. Type in 9427P and it will take you directly to page. There you can Read More
Thank you for your e.mail / request. The switch for the model 9427P must be purchased separately. This unit can be wired several ways, depending on how you wish it to operate. You can review these wiring options by accessing the Installation Instructions on our web site: www.nutone.com. In the upper right-hand corner is a Model Search. Type in 9427P and it will take you directly to page. There you can see the installation instructions. The recommended switches are as follows: 2-function model 68W or 68V; or a 3-function switch 66W or 66V. Both of these models can be purchased on the Home Depot.com site. Again, thank you and have a good day ! Read Less
+2points
3out of 4found this answer helpful.
Was this helpful?helpful3unhelpful1
This question is from 70 CFM Ceiling Exhaust Fan with 2 - 250-Watt Infrared Bulb Heater

2 answers

Are 3 seperate switches neded? one for fan,one for heat light and one for regular non heat light

This question is from 70 CFM Ceiling Exhaust Fan with 2 - 250-Watt Infrared Bulb Heater
Asked by
Read all my Q&A
February 15, 2016
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers (2)

February 18, 2016
Answer:
You can use 3 separate switches or you can use 1 multi-function switch with the exhaust fan.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

February 17, 2016
Answer:
You can use 3 separate switches or you can use 1 multi-function switch. Please view the 66W to see the multi-function switch that works with this heater.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0
This question is from 70 CFM Ceiling Exhaust Fan with 2 - 250-Watt Infrared Bulb Heater

2 answers

Can one of the sockets for the heat lamps be a regular light bulb/ So one heat bulb and one light bulb

This question is from 70 CFM Ceiling Exhaust Fan with 2 - 250-Watt Infrared Bulb Heater
Asked by
Spring Mountain Pa
Read all my Q&A
March 9, 2015
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers (2)

March 10, 2015
Answer:
Thank you for your question about our model 9427P. This unit can accept two-250W bulbs. They can both be infrared, or they can both be a “flood”-type light, or you can do one of each. You should not exceed the total of 500 Watts between the two bulbs. If you have additional questions, just dial 888-336-3948 and our Customer Service Department can assist you further. Thanks.
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0

March 9, 2015
Answer:
Yes, that combination of lighting is acceptable in this unit.
0points
1out of 2found this answer helpful.
Was this helpful?helpful1unhelpful1
2 »
  • 2016-09-08 T12:30:11.172-05:00
  • bvseo_lps, prod_bvqa, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasquestionsanswers
  • loc_en_US, sid_100599270, prod, sort_default
2 »
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 214ms
  • QUESTIONS, PRODUCT

Customer Reviews

Rated 4.1 out of 5 by 33 reviewers.
Rated 5.0 out of 5.0 by Perfect fit into ceiling opening Tired purchasing just the fan motor--FAIL. Then decided to replace the entire unit-WIN! I ordered it on-line at about 4PM on a Thursday and it was DELIVERED at 3PM Friday--say what! Unbelievable. August 23, 2016
Rated 3.0 out of 5.0 by as expected The one detail I was annoyed about is that the exhaust port is at a fixed angle, and cannot be pivoted 90 degrees so that it points UP. I modified it by dremel-tool'ing it, cutting a groove out of the frame, drilled new bolt holes to hold the exhaust port, and managed to get it pointing upright. It was so close to being able to just disassemble and re-point-able, but NO: it is not meant to be adjustable...but I did it anyway. works as expected. February 10, 2016
Rated 4.0 out of 5.0 by Decent fan for the money Installed easy enough. Fan pushes air affectively for our bathroom measuring about 6' x 5'. Only issue I had (and this was based on the location of the fan I replaced not the new unit) was that this unit is meant to be installed in the middle of the joist/truss/rafter bay. My old unit was attached to the one truss. Once I attached some blocking the issue was resolved. Just beware if your buying this for replacement. April 29, 2014
Rated 4.0 out of 5.0 by Works well but it was a pain to install I am an older person and I thought that this would be in easy install. It took longer than expected but came out well and works great. The only downside was their instructions on wiring options. They were confusing at best and the documentation was so so. I think it would have been better if they put the schematic that is on a sticker inside the fan housing and printed that in the instructions. The reason I got this product is because I has a similar product from the same manufacturer that I put into this bathroom 29 years ago. December 29, 2015
Rated 5.0 out of 5.0 by Great fan Other than the fact I had no idea how much work is involved with installing an exhaust fan into existing construction it is AWESOME! October 13, 2015
Rated 4.0 out of 5.0 by Pretty good unit so far. Good unit. Does not seem any noisier than most fans. Will be good to have the extra heat in the winter for showering. August 25, 2015
Rated 4.0 out of 5.0 by Great fan - on the louder side though If you're looking for a soft, quiet hush fan, this is not it. But if you're looking for an effective fan that lasts for years, this may be what you're looking for. May 2, 2015
Rated 4.0 out of 5.0 by Here's the catch Lots of reviews out there about the wiring diagram. As an electrician, I assure you, the wiring diagram is exactly correct. I can also tell you that it is complicated to read for the average user. One major difference with this unit from other units, you need constant power to the unit to cycle the cooling fan when it's in heat mode. That means you need constant power, three switch legs, and neutral. In my opinion the downside to this unit is the exhaust fan being pretty small. But it is exactly what you should expect in this price range. January 22, 2015
