Model # 22791

Internet #202032997

Store SKU #639070

Store SO SKU #1000313719

null 8 in. x 1/2 in. Copper PEX Barb Stub-Out 90-Degree Elbow
0697285601376

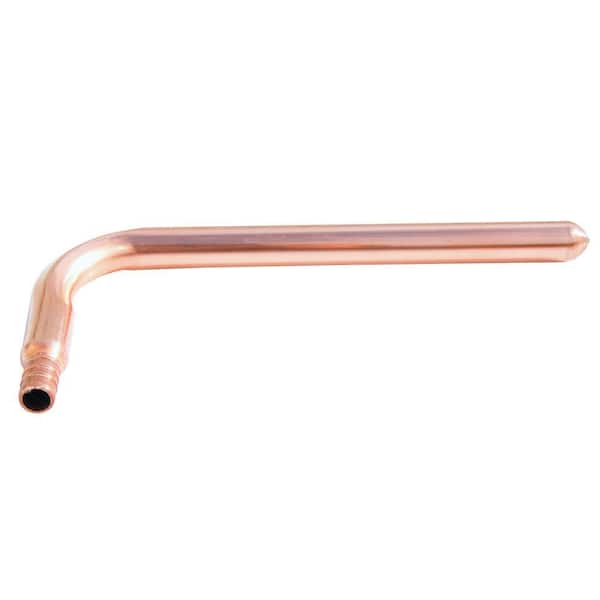

8 in. x 1/2 in. Copper PEX Barb Stub-Out 90-Degree Elbow

$750 /each

Frequently Bought Together

Product Overview

The SharkBite 1/2 in. Copper 90° Barb x Barb Stub Out Elbow features lead-free copper construction that's ideal for connecting PEX tubing in water distribution systems. Used for transition between PEX tubing and copper pipes to stub out of the walls or floors. The PEX Stub out elbow can be connected to PEX Pipe with copper rings or PEX Clamp rings.

California residents: see   Proposition 65 information

  • Lead free copper construction
  • Low-cost plumbing connection system
  • Barb connection
  • Compatible with PEX pipe
  • NSF listed
  • Meets UPC, IPC, and cUPC requirements
  • Fittings work with crimp ring or clamp connection methods
  • Rated to 200°F and 200 psi
  • Note: product may vary by store

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.

Specifications

Dimensions

Details

Warranty / Certifications

More Products With These Features

Search

Customer Questions & Answers

8 in. x 1/2 in. Copper PEX Barb Stub-Out 90-Degree Elbow?

(8 in. x 1/2 in. Copper PEX Barb Stub-Out 90-Degree Elbow) is this product used to remove the bang in the water line when associated with the clothes washer?
Asked by: Marlin
No, what you are needing is a water hammer arrestor. http://www.homedepot.com/p/SharkBite-1-2-in-Brass-Push-to-Connect-Residential-Water-Hammer-Arrestor-Tee-22630LF/204417388
Answered by: SharkBite Support
Date published: 2015-09-20

Can this product be used for the stubout for a tube spout?

Running new pex water lines for bathroom remodel. I have been told both by Delta and Moen not to run pex to the tub spout. Not wanting to really learn how to work with copper tubing and fittings just for the tub spout, I was wondering if this product could be used for the new copper tub spout? Thanks in advance any help.
Asked by: cheffner
Yes, this stub out can be used for a tub spout. Once installed, you will need to cut the stub out to the desired length and sweat a copper male adapter to attach the spout. Thanks for your interest in out products.
Answered by: SharkBite Support
Date published: 2016-08-13

Won't sweating a valve onto this ruin the pex joint inside the wall??

If I sweat a valve onto this it is going to heat up the entire piece including where it attached to the pex pipe (inside of the finished wall). Surely wrapping a wet towel around this as close to the wall as possible while attaching the valve is not the proper way. What is the correct way to do this??? Thank you!!
Asked by: MarcT
Hi Marc, The recommended way to do this is to crimp the PEX to the stubout behind the wall, hang the drywall, and then cut the end off the stubout and use a SharkBite Push to Connect angle or straight stop to connect to the stubout. With SharkBite PTC, there are no tools required. http://www.homedepot.com/p/SharkBite-1-2-in-Chrome-Plated-Brass-Push-to-Connect-x-3-8-in-O-D-Compression-Quarter-Turn-Angle-Stop-Valve-23036-0000LF/202270612?keyword=23036-0000lf
Answered by: SharkBite Support
Date published: 2016-03-11
