Model # 8015-HD

Internet #202286686

Store SKU #229541

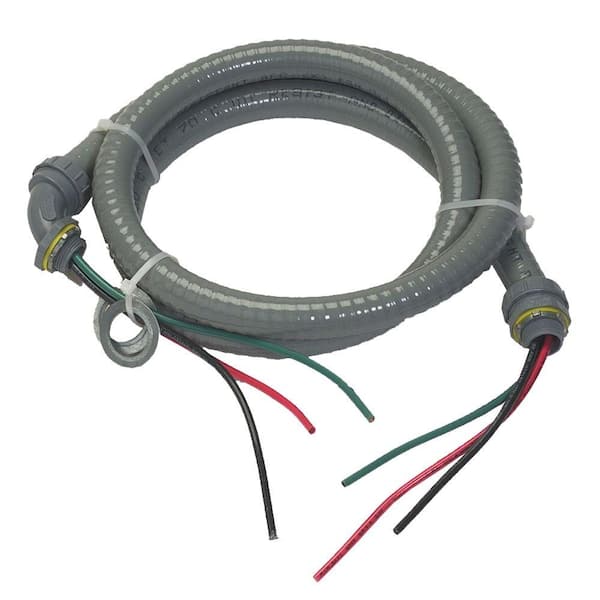

AFC Cable Systems Liquidtite 10/3 x 6 ft. AC Whip
0077680237545

AFC Cable Systems

Liquidtite 10/3 x 6 ft. AC Whip

  • Maximum Voltage Rating of 600V
  • Already assembled for quick use
  • Maximum dry temp 90 Degrees C
$1097 /each
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

This AFC Cable Systems Liquidtite 10/3 in. x 6 ft. AC Whip comes pre-assembled for use and features two non-metallic, liquid-tight connectors, 1 straight and 1 at 90-degrees.

  • Black, red and green THHN/THWN conductors
  • 1 straight non-metallic liquid-tight connector and 1 90-degree non-metallic liquid-tight connector
  • 6 ft. length
  • Pre-assembled in 10/3 in. trade size
  • Made in USA
  • Note: Product may vary by store

Specifications

Dimensions

Product Depth (in.)
10.5
Product Height (in.)
1.25
Product Length (ft.)
6 ft
Product Width (in.)
10.5

Details

Electrical Product Type
Electrical Cords & Cord Management
Product Weight (oz.)
1.906
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
Contact Manufacturer

More Products With These Features

Search

Customer Questions & Answers

what size wire is in this whip ?

Asked by: Anonymous
Good for 30 amps
Answered by: Abd9810
Date published: 2017-02-26

Shouldn't the description of this say, "10/3" instead of "10/3 in." in several places?

Shouldn't the description of this say, "10/3" instead of "10/3 in." in several places?
Asked by: tjk
Thank you for making us aware of this and we will get corrected immediately online. Thanks!
Answered by: AFCSupport
Date published: 2017-05-08

Is this 3/4" or 1/2" liquid tight?

Asked by: tony
Home Depot #202286686 / AFC #8015-HD liquidtight housing is 1/2" in diameter and with 10 gauge wires. We also offer Home Depot #202286687 / AFC #8017-HD which is 3/4" in diameter and with 8 gauge wires.
Answered by: AFCSupport
Date published: 2017-03-26

What is the differance between this 6ft a/c whip and the 4ft appliance whip besides the 2ft in length? They appear to have the same guage wire.

Are they both safe for use with a dual element 4500 watt Hot Water heater?
Asked by: SME
If each of the whips contains the same conductor size, number of conductors, and wire type, then they each have the same electrical rating. Regarding their “safe use” with a dual element 4500 watt Hot Water heater; it depends on the voltage and current requirements of the water heater. The Manufacturer’s instruction for the water heater should be consulted for the proper size and type and/or temperature rating for the electrical supply conductors. Sku 219076 is pictured and listed incorrectly on HD.com as this should be a STEEL Armor and steel fittings (and not liquid-tight) and we will update this immediately. Sku 229541 is truly a liquid-tight armor with LT fittings.
Answered by: AFCSupport
Date published: 2017-05-12
  • y_2017, m_8, d_18, h_9CST
  • bvseo_bulk, prod_bvqa, vn_bulk_1.0.0-hotfix-1
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_6
  • loc_, sid_202286686, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 95ms
  • QUESTIONS, PRODUCT

Customer Reviews

Liquidtite 10/3 x 6 ft. AC Whip is rated 4.2 out of 5 by 5.
Rated 1 out of 5 by from With all the dimensions listed ... it doesn't indicate if this is for 3/4" conduit or 1/2" or 1" ... With all the dimensions listed ... it doesn't indicate if this is for 3/4" conduit or 1/2" or 1" or what size ??
Date published: 2017-08-05
Rated 5 out of 5 by from Power Cors This product arrived on time and Installed easily and perfect.
Date published: 2016-10-20
Rated 5 out of 5 by from Great product at a great price The pre made whip saves a lot of time and works great.
Date published: 2016-09-13
Rated 5 out of 5 by from simple and easy The product was a great solution and was easy to use. It avoided the need to buy wire, water-tite conduit and connectors seperately. It was a convenient all-in -one product!
Date published: 2012-05-08
Rated 5 out of 5 by from nice product replaced old rusted out metal connection to my pool pump. Installation was simple and results were great.
Date published: 2012-01-10
