Free Shipping and BOPIS
Discontinued

BrassCraft

Model # CR1900RX R1

Internet # 202047048

Store SKU # 239172

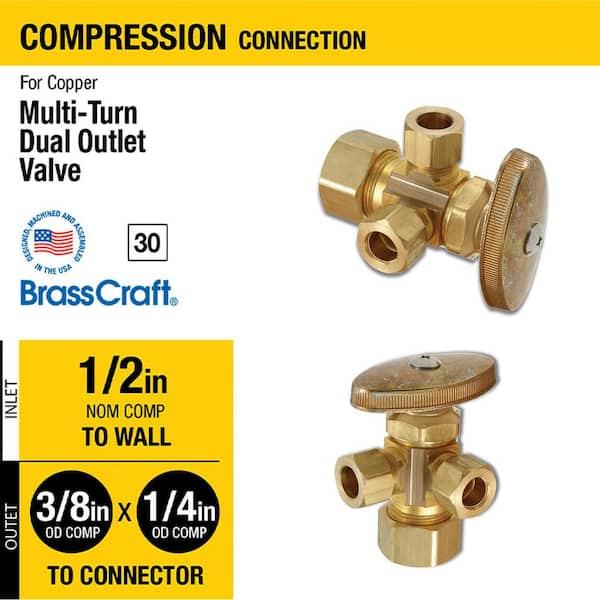

1/2 in. Nominal Compression Inlet x 3/8 in. O.D. Compression x 1/4 in. O.D. Compression Dual Outlet Multi-Turn Valve

This item has been discontinued.
The Home Depot no longer carries this specific product.

$14.53 /each
Loading...

PRODUCT OVERVIEW

Model # CR1900RX R1

Internet # 202047048

Store SKU # 239172

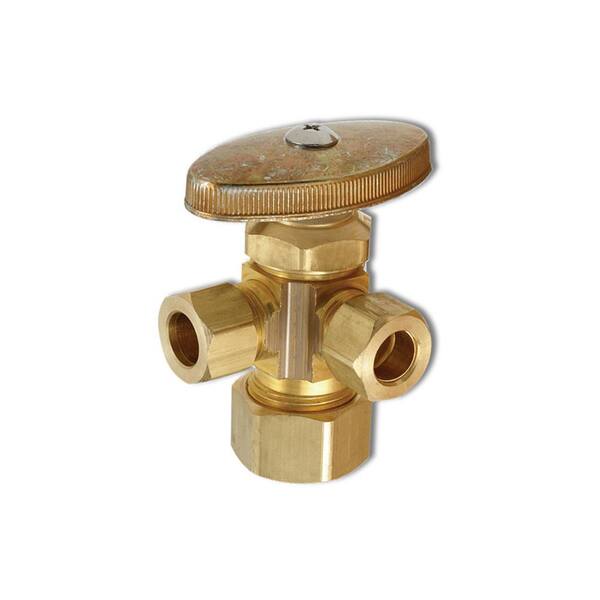

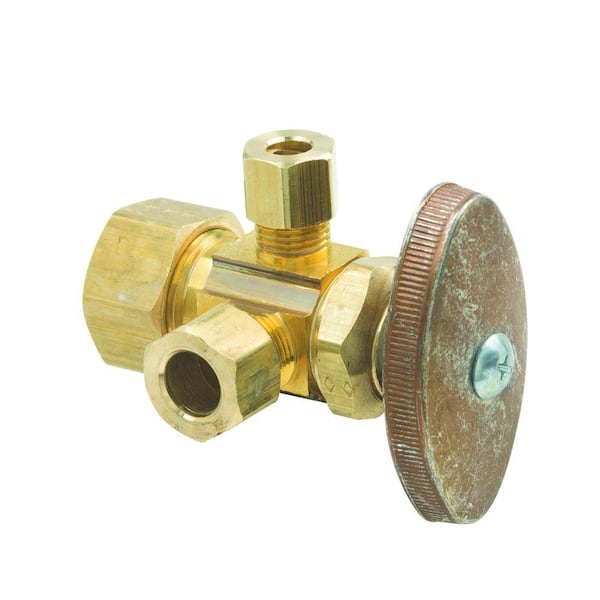

BrassCraft 1/2 in. Nominal Compression Inlet x 3/8 in. O.D. Compression x 1/4 in. O.D. Compression Dual Outlet Multi-Turn Angle Valve controls water flow to household plumbing fixtures. The dual outlet allows two independent supply lines to be attached to a single valve. Ideal for adding dishwashers, ice makers, water filters and instant hot water dispensers to existing water supply. With a few turns of the valve handle, you are able to stop or start the flow of water leading to the plumbing fixture, allowing for maintenance and repair without shutting off the water to the entire home.

  • Compatible with copper and PEX (PEX installations require a stainless steel tube insert)
  • Ideal for adding dishwashers, ice makers, water filters and instant hot water dispensers to existing water supply
  • Machined, 1-piece body construction for strength, durability and long-lasting performance
  • Easy-to-remove handle protects against accidental operation during rough-ins
  • Multi-turn operation means water flow control with only a few turns of the handle
  • Oval-knurled handle provides a secure grip for on/off operation
  • Rough brass
  • Temperature rating: 40° to 140°F
  • Pressure rating: 125 psi maximum
  • No-lead certified
  • IAPMO and CSA listed to ASME A112.18.1/CSA B125.1

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

SPECIFICATIONS

Dimensions
Product Height (in.)
2.75
Product Length (in.)
2.75 in
Product Width (in.)
2.25
Valve Inlet Diameter (in.)
.5
Valve Outlet Diameter (in.)
.375
Details
Compatible Pipe Material
Copper
Connection
Comp x Comp x Comp
Indoor/Outdoor
Indoor,Outdoor
Material
Brass
Maximum Pressure (psi)
125
Maximum Working Temperature (F)
140
Product Weight (lb.)
.24904 lb
Rating
125 psi
Returnable
90-Day
Warranty / Certifications
Manufacturer Warranty
Limited Manufacturer Warranty

CUSTOMER REVIEWS

Rated 5.0 out of 5 by 3 reviewers.
Rated 5.0 out of 5.0 by Just what I needed Just what I needed to complete the installation of my new refridgerator! August 27, 2015
Rated 5.0 out of 5.0 by Exactly what I needed This was exactly the valve I needed to install a under sink water purifier. The valve that came with the filter was plastic and leaked from the install. With the help of an associate who knew what I needed the repair and replacement was a breeze. January 14, 2014
Rated 5.0 out of 5.0 by Made excelently A very good product, I myself think it was a little high in price, but, what is not these days. At least I know this will last many many years. December 7, 2011
