Model # KTCR1901X R1

Internet #205214469

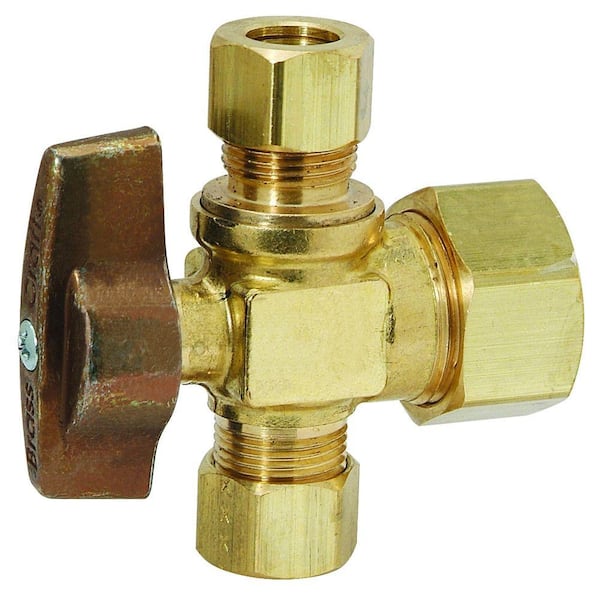

BrassCraft 1/2 in. Nominal Compression Inlet x 3/8 in. O.D. Compression x 3/8 in. O.D. Compression Dual Outlet 1/4-Turn Ball Valve
0026613150116

BrassCraft

1/2 in. Nominal Compression Inlet x 3/8 in. O.D. Compression x 3/8 in. O.D. Compression Dual Outlet 1/4-Turn Ball Valve

$3401 /each
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

BrassCraft 1/2 in. Nominal Compression Inlet x 3/8 in. O.D. Compression x 3/8 in. O.D. Compression Dual Outlet 1/4-Turn Ball Valve controls water flow to household plumbing fixtures. The dual outlet allows two independent supply lines to be attached to a single valve. Ideal for adding dishwashers, ice makers, water filters and instant hot water dispensers to existing water supply. Ideal for adding dishwashers, ice makers, water filters and instant hot water dispensers to existing water supply. With a 90° turn of the valve handle, you are able to stop or start the flow of water leading to the plumbing fixture, allowing for maintenance and repair without shutting off the water to the entire home.

  • Compatible with copper and PEX (PEX installations require a stainless steel tube insert)
  • Ideal for adding dishwashers, ice makers, water filters and instant hot water dispensers to existing water supply
  • Smooth, quarter-turn operation, on/off flow control with a 90° turn of the handle
  • Brass ball ensures smooth operation without freeze-ups even after long periods without use
  • Machined body provides strength, durability and long-lasting performance
  • Easy-to-remove handle protects against accidental operation during rough-ins
  • Rough brass
  • Temperature rating: 40° to 180°F
  • Pressure rating: 125 psi maximum
  • No-lead certified
  • IAPMO and CSA listed to ASME A112.18.1/CSA B125.1

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.

Compare Similar

Price
$34.01 /each
$34.05 /each
$37.29 /each
$39.86 /each
Name 1/2 in. Nominal Compression Inlet x 3/8 in. O.D. Compression x 3/8 in. O.D. Compression Dual Outlet 1/4-Turn Ball Valve 1/2 in. Nom Comp Inlet x 3/8 in. O.D. Comp x 3/8 in. O.D. Comp Dual Outlet Dual Shut-Off Multi-Turn Straight Valve 1/2 in. Nom Comp Inlet x 3/8 in. O.D. Comp x 3/8 in. O.D. Comp Dual Outlet Dual Shut-Off 1/4-Turn Straight Ball Valve 1/2 in. Nom Comp Inlet x 3/8 in. O.D. Comp x 1/4 in. O.D. Comp Dual Outlet Dual Shut-Off Multi-Turn Straight Valve
Brand BrassCraft BrassCraft BrassCraft BrassCraft
Ratings (0) (0) (5) (1)
Valve Outlet Diameter (in.) 0.375 0.375 0.375 0.375
Valve Inlet Diameter (in.) 0.5 0.5 0.5 0.5
Connection Comp x Comp x Comp Comp x Comp x Comp Comp x Comp x Comp Comp x Comp x Comp
View Product View Product View Product View Product

Specifications

Dimensions

Inlet Size
1/2 In.
Product Depth (in.)
1.6875
Product Height (in.)
2.75
Product Length (in.)
2.750 in
Product Width (in.)
2.25
Valve Inlet Diameter (in.)
0.5
Valve Outlet Diameter (in.)
0.375

Details

Application
Water Supply
Color/Finish
Rough Brass
Compatible Pipe Material
Copper
Compatible Product
Faucet,Ice Maker,Other
Connection
Comp x Comp x Comp
Features
Lead Free
Indoor/Outdoor
Indoor,Outdoor
Inlet Fitting End Type
Compression
Material
Brass
Maximum Pressure (psi)
125
Maximum Working Temperature (F)
180
Outlet Fitting End Type
Compression
Outlet Size
3/8 In.
Product Weight (lb.)
0.4016 lb
Returnable
90-Day
Stop Valve Type
Dual Outlet
Valve Configuration
Dual Outlet
Valve Connection
Compression
Valve Type
Stop

Warranty / Certifications

Manufacturer Warranty
Limited Manufacturer Warranty

More Products With These Features

Search

Customer Questions & Answers

Would I use this to hook up two sinks to supply lines in bathroom?

Would I use this to hook up two sinks to supply lines in bathroom?
Asked by: Dannyboens
Hi Dannyboens - Yes, the dual outlet allows two independent supply lines to be attached to a single valve. The single shut off will not allow you to shut off water to one sink without also shutting off the water to the other. If you wanted to shut off water to the sinks independently you could use our dual outlet, dual shut off valve, part # KTCR1901DVX R (angle) or part # KTCR1901DVSX R (straight).
Answered by: BrassCraft Mfg
Date published: 2017-04-04
