Model # CSSB22-36

Internet #205217297

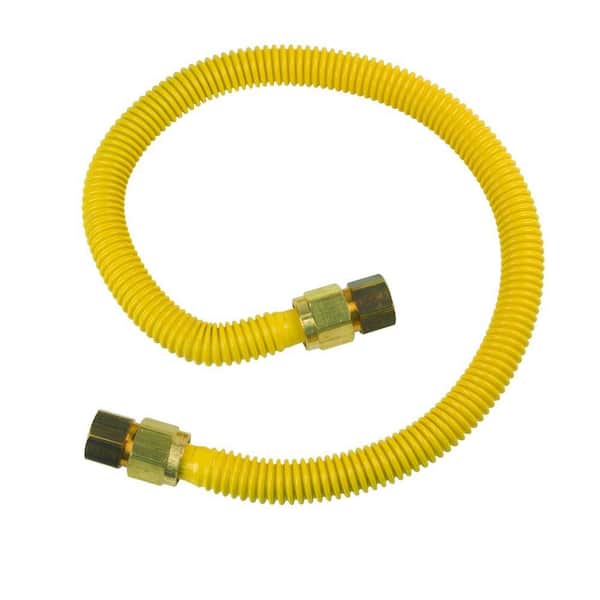

BrassCraft ProCoat 3/4 in. FIP x 3/4 in. FIP x 36 in. Stainless Steel Gas Connector 3/4 in. I.D. (255,900 BTU)
0026613119311

BrassCraft

ProCoat 3/4 in. FIP x 3/4 in. FIP x 36 in. Stainless Steel Gas Connector 3/4 in. I.D. (255,900 BTU)

$2966 /each

Product Overview

BrassCraft’s ProCoat stainless steel gas connector is engineered with added safety in mind. The proprietary polymer coating is designed to withstand prolonged exposure to harsh household chemicals, UV rays and salt. ProCoat is applied to the corrugated stainless steel connector using advanced powder-coat technology. Unlike conventional dipped or sprayed coatings, the ProCoat coating is baked directly onto the connector surface at high temperatures to provide a uniform coating over the entire length of the connector. The coating is applied only after the connector has been 100% leak tested, prior to nut and fitting assembly. This process results in the most complete corrosion resistance available.
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

BrassCraft’s ProCoat stainless steel gas connector is engineered with added safety in mind. The proprietary polymer coating is designed to withstand prolonged exposure to harsh household chemicals, UV rays and salt. ProCoat is applied to the corrugated stainless steel connector using advanced powder-coat technology. Unlike conventional dipped or sprayed coatings, the ProCoat coating is baked directly onto the connector surface at high temperatures to provide a uniform coating over the entire length of the connector. The coating is applied only after the connector has been 100% leak tested, prior to nut and fitting assembly. This process results in the most complete corrosion resistance available.
  • 3/4 in. I.D. (7/8 in. O.D.) corrugated stainless steel with corrosion resistant coating
  • Steel fittings included: 3/4 in. FIP and 3/4 in. FIP
  • ProCoat coating corrosion resistant to harsh chemicals as well as UV rays and salt
  • Use with natural and LP (propane) gases
  • 100% leak tested
  • Approved for indoor and outdoor use
  • Temperature rating: -40° to 150°F
  • Pressure rating: 1/2 psi maximum
  • CSA certified

Product Overview

BrassCraft’s ProCoat stainless steel gas connector is engineered with added safety in mind. The proprietary polymer coating is designed to withstand prolonged exposure to harsh household chemicals, UV rays and salt. ProCoat is applied to the corrugated stainless steel connector using advanced powder-coat technology. Unlike conventional dipped or sprayed coatings, the ProCoat coating is baked directly onto the connector surface at high temperatures to provide a uniform coating over the entire length of the connector. The coating is applied only after the connector has been 100% leak tested, prior to nut and fitting assembly. This process results in the most complete corrosion resistance available.

California residents: see   Proposition 65 information

  • 3/4 in. I.D. (7/8 in. O.D.) corrugated stainless steel with corrosion resistant coating
  • Steel fittings included: 3/4 in. FIP and 3/4 in. FIP
  • ProCoat coating corrosion resistant to harsh chemicals as well as UV rays and salt
  • Use with natural and LP (propane) gases
  • 100% leak tested
  • Approved for indoor and outdoor use
  • Temperature rating: -40° to 150°F
  • Pressure rating: 1/2 psi maximum
  • CSA certified

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.

Specifications

Dimensions

Inner diameter (in.)
0.75
Outer diameter (in.)
0.875
Product Depth (in.)
1.5
Product Height (in.)
36
Product Length (in.)
36.000 in
Product Width (in.)
1.5

Details

Connection type
FIP x FIP
Gas Vent Pipe and Fittings Accessory Type
Gas Appliance Connector
Inner material
Stainless steel
Maximum Pressure (psi)
.5
Maximum Working Temperature (F)
150
Minimum working temperature (F)
-40
Outer Material
Other
Product Weight (lb.)
1.2048 lb
Returnable
90-Day

Warranty / Certifications

Certifications and Listings
CSA Listed
Manufacturer Warranty
Limited Manufacturer Warranty

Specifications

Dimensions

Inner diameter (in.)
0.75
Outer diameter (in.)
0.875
Product Depth (in.)
1.5
Product Height (in.)
36
Product Length (in.)
36.000 in
Product Width (in.)
1.5

Details

Connection type
FIP x FIP
Gas Vent Pipe and Fittings Accessory Type
Gas Appliance Connector
Inner material
Stainless steel
Maximum Pressure (psi)
.5
Maximum Working Temperature (F)
150
Minimum working temperature (F)
-40
Outer Material
Other
Product Weight (lb.)
1.2048 lb
Returnable
90-Day

Warranty / Certifications

Certifications and Listings
CSA Listed
Manufacturer Warranty
Limited Manufacturer Warranty

More Products With These Features

Search

Questions & Answers

Can i use this with gas logs

Can i use this with gas logs
Asked by: Debbie
I'm sure you could but it's a really big line for a smaller demand.
Answered by: Richard
Date published: 2017-03-14
  • y_2017, m_9, d_21, h_20CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.3
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_1
  • loc_, sid_205217297, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 100ms
  • QUESTIONS, PRODUCT

Customer Reviews

ProCoat 3/4 in. FIP x 3/4 in. FIP x 36 in. Stainless Steel Gas Connector 3/4 in. I.D. (255,900 BTU) is rated 5.0 out of 5 by 3.
Rated 5 out of 5 by from Did exactly what I wanted. Couldn't find it easily... Did exactly what I wanted. Couldn't find it easily anywhere else. Smooth transaction.
Date published: 2017-08-08
Rated 5 out of 5 by from It fit exactly where I needed it.... It fit exactly where I needed it.
Date published: 2017-09-05
Rated 5 out of 5 by from This gas line looks great and functions as expected. It's a true 3/4" line. This gas line looks great and functions as expected. It's a true 3/4" line.
Date published: 2017-03-14
