Model # CSSC22-72 P

Internet #205204380

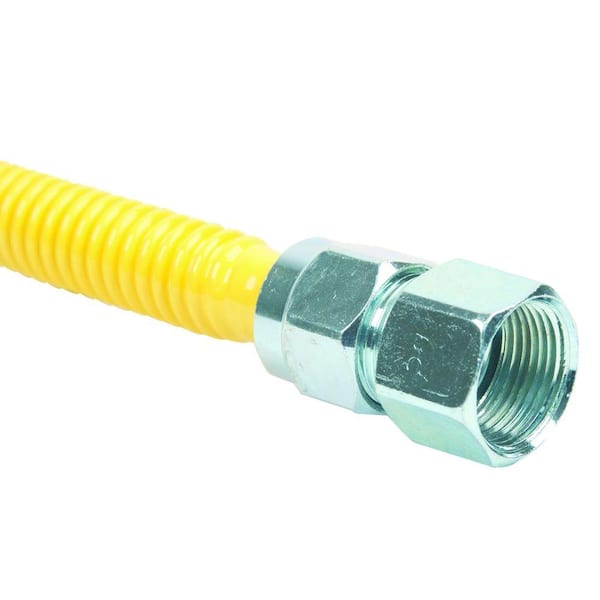

BrassCraft ProCoat 3/4 in. FIP x 3/4 in. FIP x 72 in. Stainless Steel Gas Connector 5/8 in. O.D. (86,000 BTU)


ProCoat 3/4 in. FIP x 3/4 in. FIP x 72 in. Stainless Steel Gas Connector 5/8 in. O.D. (86,000 BTU)

$3659 /each
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

BrassCraft’s ProCoat stainless steel gas connector is engineered with added safety in mind. The proprietary polymer coating is designed to withstand prolonged exposure to harsh household chemicals, UV rays and salt. ProCoat is applied to the corrugated stainless steel connector using advanced powder-coat technology. Unlike conventional dipped or sprayed coatings, the ProCoat coating is baked directly onto the connector surface at high temperatures to provide a uniform coating over the entire length of the connector. The coating is applied only after the connector has been 100% leak tested, prior to nut and fitting assembly. This process results in the most complete corrosion resistance available.

  • 1/2 in. I.D. (5/8 in. O.D.) corrugated stainless steel with corrosion resistant coating
  • Steel fittings included: (2) 3/4 in. FIP
  • ProCoat coating corrosion resistant to harsh chemicals as well as UV rays and salt
  • Use with natural and LP (propane) gases
  • 100% leak tested
  • Approved for indoor and outdoor use
  • Temperature rating: -40° to 150°F
  • Pressure rating: 1/2 psi maximum
  • CSA certified

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.



Inner diameter (in.)
Outer diameter (in.)
Product Depth (in.)
Product Height (in.)
Product Length (in.)
72.230 in
Product Width (in.)


Connection type
Gas Vent Pipe and Fittings Accessory Type
Gas Appliance Connector
Inner material
Stainless steel
Maximum Pressure (psi)
Maximum Working Temperature (F)
Minimum working temperature (F)
Outer Material
Stainless steel
Product Weight (lb.)
1.3859 lb

Warranty / Certifications

Certifications and Listings
CSA Listed
Manufacturer Warranty
Limited Manufacturer Warranty

More Products With These Features


Customer Questions & Answers

Can this be used to connect to a gas fireplace?

Curious if this can be used to connect to gas fireplace. Does this need to be bonded like the other Wardflex tubing? Is it the same wall thickness as the Wardflex tubing that susceptible to arcing during lightning strikes?
Asked by: Kevin
Dear Wolverine – Wardflex is a brand of CSST (corrugated stainless steel tubing) piping, which is an alternate gas piping system to the traditional black pipe. It’s generally installed behind the wall in your home. CSST is sold as bulk tubing and it is assembled in the field (by a qualified installer, on-site) with fittings, manifolds, etc. CSST has specific requirements for installation, which includes bonding. BrassCraft’s ProCoat gas connectors are not CSST tubing. They are “appliance connectors” and are used outside the wall to connect an appliance to the home’s gas piping system which is stubbed out within a short distance of the appliance. An appliance connector is sold as a complete product assembled (with nuts & fittings) and tested in the factory. They are designed and certified to the industry standard for gas appliance connectors. Gas appliance connectors do not require bonding (unless local jurisdiction requires it). To confirm, please contact your local building code office. So long answer short, this connector is ideal for connecting your gas log fireplace to your gas piping system. Should you have any additional questions on product selection or installation please feel free to contact our customer support team toll-free at 877-272-7755
Answered by: BrassCraft Mfg
