0050134109377

Defiant

Model # DLX71B

Internet # 202053168

Store SKU # 890100

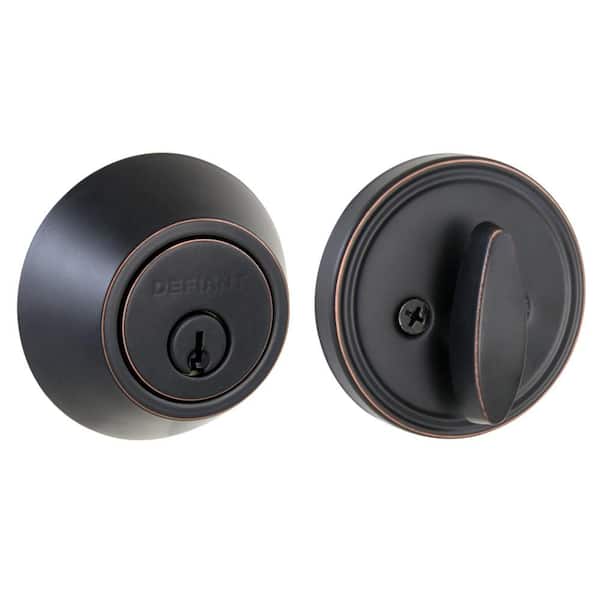

Single Cylinder Aged Bronze Deadbolt

$12.97 /each

Frequently Bought Together

Product Overview

Featuring a Lifetime Guarantee, Defiant meets or exceeds ANSI Grade 3 Standards for residential use. This lock features a radius latch with an adjustable backset and optional drive-in feature. Defiant keyed locks can be re-keyed to fit your existing KW1 keyway. The Powder coated finish will provide years of durability. When used as a replacement lock only a screwdriver is need to make installation a snap.

  • Lifetime guarantee
  • Latch features an adjustable backset to fit 2-3/8 in. or 2-3/4 in. backset
  • Latch features a radius faceplate or can be easily converted to a drive-in style
  • Includes 2 keys
  • Easy replacement installation with only a screwdriver
  • For residential use
  • Drill, saw, pick and pry resistant
  • Meets ANSI grade 3 specifications for security

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.

Specifications

Dimensions

Assembled Depth (in.)
3.82 in
Assembled Height (in.)
2.55 in
Assembled Width (in.)
2.55 in
Deadbolt bore hole diameter (in.)
2.125
Deadbolt cross bore diameter (in.)
1.0
Deadbolt strike height (in.)
2.25
Deadbolt strike width (in.)
1.0
Deadbolt throw length (in.)
1.0
Deadbolt trim ring diameter (in.)
2.5
Projection (in.)
Required door thickness (in.)
1 3/8 to 1 3/4

Details

Backset size (in.)
Adjustable
Commercial Hardware Type
Cylinders
Commercial/Residential
Residential
Deadbolt Type
Single Cylinder Deadbolt
Deadbolt strike
Round corner
Door Handing
Universal/Reversible
Door Locks & Knobs Product Type
Deadbolts
Electronic
No
Finish
Aged Bronze
Hardware Finish Family
Bronze
Hardware Included
Yes
Interior/Exterior
Exterior
Lock Type
Sgl Cyl Deadbolt
Material
Metal
Product Weight (lb.)
1.19 lb
Returnable
90-Day
Security/ANSI Grade
ANSI Grade III (Good)
Total number of keys included

Warranty / Certifications

Certifications and Listings
No Certifications or Listings
Manufacturer Warranty
Lifetime Guarantee

More Products With These Features

Search

Customer Questions & Answers

10 Questions12 Answers

Customer Questions & Answers

Single Cylinder Aged Bronze Deadbolt
Single Cylinder Aged Bronze Deadbolt

Ask your questions. Share your answers.



Clear Search Term


Sort By:

0 answers

Can I order four deadbolts and one doorknob keyed to my current number that is opens three other doors?

This question is from Single Cylinder Aged Bronze Deadbolt
Asked by
Memphis, TN
Read all my Q&A
July 10, 2016
I need to buy an additional 4 deadbolts and one doorknob in this aged bronze series with my number so all doors and gates keyed alike. Can I do this from a website or how?
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

2 answers

why can't i open the deadbolt from inside if it was locked w/key on the outside

This question is from Single Cylinder Stainless Steel Deadbolt
Asked by
florida
Read all my Q&A
June 9, 2016
You can't pull the key out unless the deadbolt is in the locked position. If you try to unlock from inside, it won't move.
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers (2)

June 10, 2016
Answer:
The deadbolt lock is only intended to be used from one side with a key.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

June 10, 2016
Answer:
You need to UN-install and RE-Install the deadbolt. You have installed the deadbolt incorrectly. 1. Insure the latch is installed with the UP arrow pointing up and it is in the unlocked position. 2. Do NOT have the key in the lock during installation (keyway should be so that the teeth of the key point up when inserting the key). 3. If you have any more issue please call our customer service line at Read More
You need to UN-install and RE-Install the deadbolt. You have installed the deadbolt incorrectly. 1. Insure the latch is installed with the UP arrow pointing up and it is in the unlocked position. 2. Do NOT have the key in the lock during installation (keyway should be so that the teeth of the key point up when inserting the key). 3. If you have any more issue please call our customer service line at 877-663-5625. Read Less
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

1 answer

how do you change the length of the shaft on the deadbolt?

This question is from Single Cylinder Stainless Steel Deadbolt
Asked by
Chicago
Read all my Q&A
May 8, 2016
I am replacing the deadbolt & knob on an existing door. The knob installed fine but the plunger on the deadbolt is too short.
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answer (1)

May 20, 2016
Answer:
Locate the "UP" arrow on the latch. To the left of the "UP" arrow, there is the cam where the torque blade goes through. Insert your screwdriver into that cam and twist the screwdriver. This should "throw the bolt" or put it in the locked position. Remove the screwdriver and take the latch in both hands. Twist your hands in opposite directions. The latch should pop out. Remember to lock the latch back Read More
Locate the "UP" arrow on the latch. To the left of the "UP" arrow, there is the cam where the torque blade goes through. Insert your screwdriver into that cam and twist the screwdriver. This should "throw the bolt" or put it in the locked position. Remove the screwdriver and take the latch in both hands. Twist your hands in opposite directions. The latch should pop out. Remember to lock the latch back into place and retract the bolt before installation.
If you should have any further questions, please contact our customer help line at 1-877-663-5625. Read Less
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

1 answer

Is this lock suitable for any door thickness?

This question is from Single Cylinder Stainless Steel Deadbolt
Asked by
Poland
Read all my Q&A
March 7, 2016
We've got a thick security doors of 75 mm width. We would like to install an additional lock like yours, but we're not sure if it will be compatible.
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answer (1)

March 8, 2016
Answer:
This deadbolt will work on a door that is between 1 1/4" - 1 3/4" thick. 44.45mm would be the thickest door that this lock would support.
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0
2 »
  • 2016-07-23 T15:42:22.279-05:00
  • bvseo_lps, prod_bvqa, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasquestionsanswers
  • loc_en_US, sid_202053168, prod, sort_default
2 »
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 235ms
  • QUESTIONS, PRODUCT

Customer Reviews

Rated 4.2 out of 5 by 98 reviewers.
Rated 5.0 out of 5.0 by good buy It is easy to install, has good quality, not much experience is needed to know where to put pocision generally good product February 12, 2016
Rated 5.0 out of 5.0 by Great product Installed easily. Works fine. Replaced an existing design house product. May 24, 2016
Rated 5.0 out of 5.0 by Deadbolt Easy installation, looks good and now I feel safe. April 14, 2016
Rated 5.0 out of 5.0 by Deadbolt lock It is great. I really feel better that I have it.. February 10, 2016
Rated 5.0 out of 5.0 by Works Great Cheap, stylish, works great. Better than the tacky polished brass in my opinion. I wish they had this item in stock in more locations. Recommended January 19, 2016
Rated 5.0 out of 5.0 by Good quality for the price. The lock was easily installed as per instruction provided. The quality was excellent for the price. July 12, 2016
Rated 5.0 out of 5.0 by Great Value Great value easy install. Took less than 5 minutes. Works like a charm. July 12, 2016
Rated 5.0 out of 5.0 by Deadbolt Excellent buy will recommend it to anyone needing extra reinforcement on their doors. July 5, 2016
