0044321750862

Design House

Model # 750869

Internet # 202675601

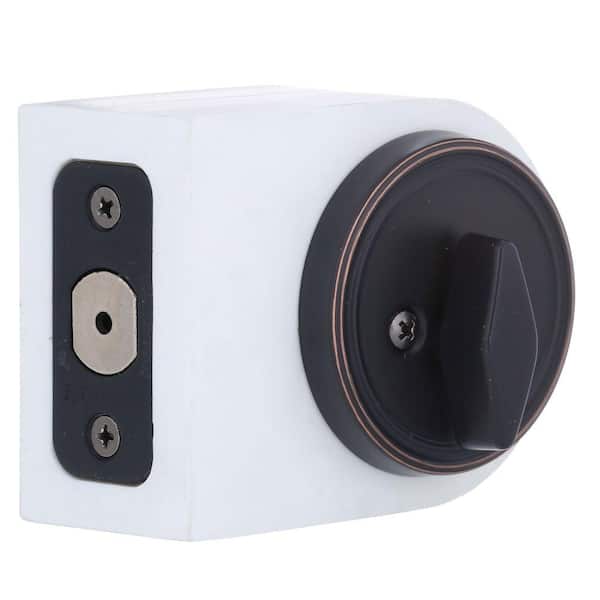

2-3/8 in. Backset Single Sided Oil-Rubbed Bronze Deadbolt with Turn-Button Interior

$14.52 /each

FREQUENTLY BOUGHT TOGETHER

PRODUCT OVERVIEW

Model # 750869

Internet # 202675601

This single side deadbolt can provide more security than the spring bolt lock, very good choice for keeping your home or business safe. Single side deadbolt means you lock the deadbolt using a thumb-turn from the interior only, no locking mechanism to the outside. Ideal for doors where additional security is required.

  • Fits doors 1-3/8 in. up to 1-3/4 in. thick
  • Ideal for interior or exterior doors where additional security is required
  • Reversible for right/left hand doors and features a thumb-turn lock mechanism on inside
  • Simple installation with basic tools, all mounting hardware included
  • Grade 3 ANSI/BHMA certified
  • UL fire rated for up to 3 hours
  • 2-3/8 in. backset
  • Full 1 in. throw, nickel plated

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.

SPECIFICATIONS

Dimensions
Assembled Depth (in.)
3.56 in
Assembled Height (in.)
2.5 in
Assembled Width (in.)
2.5 in
Deadbolt bore hole diameter (in.)
2.09
Deadbolt cross bore diameter (in.)
0.94
Deadbolt strike height (in.)
2.25
Deadbolt strike width (in.)
Deadbolt throw length (in.)
Deadbolt trim ring diameter (in.)
2.5
Projection (in.)
.938
Required door thickness (in.)
1 3/8 to 1 3/4
Details
Backset size (in.)
Adjustable
Commercial Hardware Type
Cylinders
Commercial/Residential
Residential
Deadbolt Type
One-sided Keyless Deadbolt
Deadbolt strike
Round corner
Door Handing
Universal/Reversible
Door Locks & Knobs Product Type
Deadbolts
Electronic
No
Finish
oil rubbed bronze
Hardware Finish Family
Bronze
Hardware Included
Yes
Interior/Exterior
Interior/Exterior
Lock Type
Unkeyed
Material
Steel
Product Weight (lb.)
.49 lb
Returnable
90-Day
Security/ANSI Grade
ANSI Grade III (Good)
Total number of keys included
Warranty / Certifications
Certifications and Listings
No Certifications or Listings
Manufacturer Warranty
5yrs on finish / limited lifetime on mechanics

MORE PRODUCTS WITH THESE FEATURES

Deadbolt Type: One-sided Keyless Deadbolt
Brand: Design House
Lock Type: Unkeyed
Security/ANSI Grade: ANSI Grade III (Good)
Price: $10 - $20
Hardware Finish Family: Bronze
Door Handing: Universal/Reversible
Search
1 Question1 Answer

Customer Questions & Answers

2-3/8 in. Backset Single Sided Oil-Rubbed Bronze Deadbolt with Turn-Button Interior
2-3/8 in. Backset Single Sided Oil-Rubbed Bronze Deadbolt with Turn-Button Interior

Ask your questions. Share your answers.



Clear Search Term



1 answer

Single sided?

This question is from 2-3/8 in. Backset Single Sided Oil-Rubbed Bronze Deadbolt with Turn-Button Interior
Asked by
Rogers, AR
Read all my Q&A
December 18, 2014
Being one-sided do I use the exterior part from the old one?
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answer (1)

Asked by
Atlanta, GA
Read all my Q&A
Home Improvement Profile: Professional
December 19, 2014
Answer:
Hi Scott,
I'm Travis from The Home Depot. Thanks for visiting our site.
This single sided deadbolt has only one control and it is on the inside. There is no accommodation for access to it from the outside of the door.
To install it, you drill a one-and-five-eighths (1-5/8'') inch round hole from the inside of the door, but not all the way through the door. You cannot utilize an existing hole from a Read More
Hi Scott,
I'm Travis from The Home Depot. Thanks for visiting our site.
This single sided deadbolt has only one control and it is on the inside. There is no accommodation for access to it from the outside of the door.
To install it, you drill a one-and-five-eighths (1-5/8'') inch round hole from the inside of the door, but not all the way through the door. You cannot utilize an existing hole from a previous deadbolt.
This ensures the utmost in security, since there is no access to the lock from the outside. It is only accessible from the inside.
I posted a picture from the installation guide showing the positioning.
Copy and paste this address for the full instructions:
http://www.homedepot.com/catalog/pdfImages/f1/f177ede7-770d-4c0f-808d-ffa147813fbb.pdf
Thank you for asking,
-Travis Read Less
User submitted photo
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0
1 of 1
  • 2016-06-28 T15:11:41.956-05:00
  • bvseo_lps, prod_bvqa, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasquestionsanswers
  • loc_en_US, sid_202675601, prod, sort_default
1 of 1
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 57ms
  • QUESTIONS, PRODUCT

CUSTOMER REVIEWS

Rated 4.0 out of 5 by 1 reviewer.
Rated 4.0 out of 5.0 by Good quality product The product was slightly different from the dead bolt I replaced and required a little modification to the door ( carved some wood off the door deadbolt cavity). Otherwise it was an easy install. November 29, 2011
