Model # LC6025W31

Internet #203568509

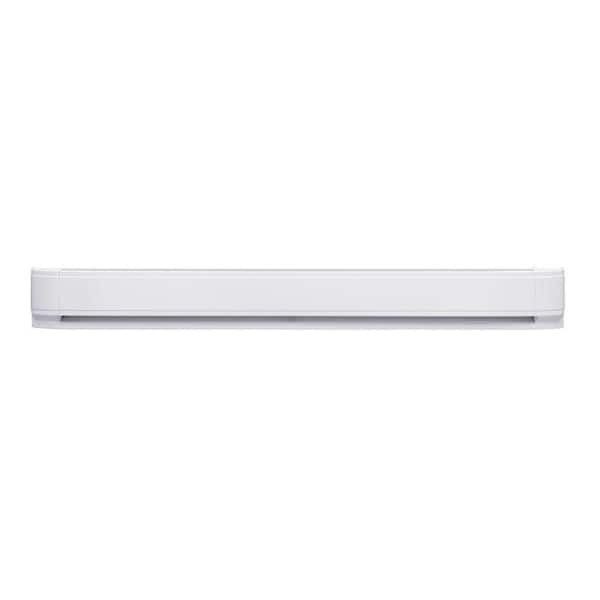

Dimplex 60 in. 2500-Watt Linear Convector Baseboard Heater
0781052064423

Dimplex

60 in. 2500-Watt Linear Convector Baseboard Heater

$5952 /each
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

The revolutionary design of the Dimplex 60 in. 2500-Watt Linear Convector Baseboard Heater provides a sleek, compact profile. Improving heater performance, reducing energy consumption and improving comfort. Dimplex baseboard heaters are the ideal heating solution for any area of your home.
  • Improved performance and reduced length through use of top heat discharge and new fin design
  • Faster heating of the room than a conventional baseboard due to rapid vertical laminar air flow, directing heat to the ceiling more quickly for dispersal throughout the room
  • Superior shark-fin blade design on a steel tubular element for improved heat transfer and longer life
  • Discreet styling, reduced length and added versatility of placement provide more options when designing a room
  • May be used with wall or top mounted built-in thermostat (not included)
  • Full length automatic overheat reset for safety
  • Installation - easily removed front caps, knock-outs on both sides of the convector, and pre-stamp mounting holes make installation easy, top mounted thermostat is optional and can be installed on either side of the LC
  • Finish - specially-formulated epoxy/polyester powder coating is environmentally friendly and resists fading and abrasion
  • Heating element - a nickel chromium element is totally enclosed within a steel sheath, providing superior life expectancy and resistance to rust, shark-fin shaped aluminum fins are firmly staked in an upright position to provide directional wicking for top discharge heat transfer
  • Applications - all residential applications, commercial offices, lobbies, washroom

Product Overview

The revolutionary design of the Dimplex 60 in. 2500-Watt Linear Convector Baseboard Heater provides a sleek, compact profile. Improving heater performance, reducing energy consumption and improving comfort. Dimplex baseboard heaters are the ideal heating solution for any area of your home.

  • Improved performance and reduced length through use of top heat discharge and new fin design
  • Faster heating of the room than a conventional baseboard due to rapid vertical laminar air flow, directing heat to the ceiling more quickly for dispersal throughout the room
  • Superior shark-fin blade design on a steel tubular element for improved heat transfer and longer life
  • Discreet styling, reduced length and added versatility of placement provide more options when designing a room
  • May be used with wall or top mounted built-in thermostat (not included)
  • Full length automatic overheat reset for safety
  • Installation - easily removed front caps, knock-outs on both sides of the convector, and pre-stamp mounting holes make installation easy, top mounted thermostat is optional and can be installed on either side of the LC
  • Finish - specially-formulated epoxy/polyester powder coating is environmentally friendly and resists fading and abrasion
  • Heating element - a nickel chromium element is totally enclosed within a steel sheath, providing superior life expectancy and resistance to rust, shark-fin shaped aluminum fins are firmly staked in an upright position to provide directional wicking for top discharge heat transfer
  • Applications - all residential applications, commercial offices, lobbies, washroom

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.

Compare Similar

Price
$41.08 /each
$59.52 /each
$100.36 /each
$121.24 /each
Name 35 in. 1250-Watt Linear Convector Baseboard Heater 60 in. 2500-Watt Linear Convector Baseboard Heater 40 in. 1500-Watt Linear Proportional Convector Baseboard Heater 60 in. 2,500-Watt Linear Proportional Convector Baseboard Heater
Brand Dimplex Dimplex Dimplex Dimplex
Ratings (9) (15) (16) (35)
Baseboard Heating Type Electric Electric Electric Electric
Voltage (volts) 240 240 240 240
View Product View Product View Product View Product

Specifications

Dimensions

Product Depth (in.)
2.38
Product Height (in.)
6.63
Product Width (in.)
60

Details

Baseboard Heating Type
Electric
Color
White
Color Family
Whites
Heat rating (BTU/hour)
8530
Heating Product Type
Baseboard
Heating Technology Type
Forced Air
Hydronic
No
Product Weight (lb.)
9.7lb
Returnable
90-Day
Thermostat
No
Vented
Yes
Voltage (volts)
240
Wattage (watts)
2500

Warranty / Certifications

Certifications and Listings
CSA Listed
Manufacturer Warranty
1 Year - Limited on components / 10 Years - Limited on elements

Specifications

Dimensions

Product Depth (in.)
2.38
Product Height (in.)
6.63
Product Width (in.)
60

Details

Baseboard Heating Type
Electric
Color
White
Color Family
Whites
Heat rating (BTU/hour)
8530
Heating Product Type
Baseboard
Heating Technology Type
Forced Air
Hydronic
No
Product Weight (lb.)
9.7lb
Returnable
90-Day
Thermostat
No
Vented
Yes
Voltage (volts)
240
Wattage (watts)
2500

Warranty / Certifications

Certifications and Listings
CSA Listed
Manufacturer Warranty
1 Year - Limited on components / 10 Years - Limited on elements

More Products With These Features

Search

Questions & Answers

Are these heaters able to be painted with a high temperature paint so they fit in their surroundi...

Are these heaters able to be painted with a high temperature paint so they fit in their surroundings?
Asked by: wildman
Some could try, and it may work-- but I wouldn't try it. I'm not sure I could do it and prevent painting the heating fans, or alternatively, the thermostat as mounted on either side.
Answered by: DHaymond
Date published: 2017-05-30

where can i get thermostat for Dimplex 60 inch baseboard heater

It is not listed on honme depot web site.
Asked by: slick
Found mine online. Search for DIMPLEX NORTH AMERICA DTK-SP Single Thermostat Kit. Budget around $10 for the thermostat. This is the basic "knob" model. You can get different models with digital readout, etc.
Answered by: DHaymond
Date published: 2017-05-30

Do these carry an Energy Star Rating? If not, are baseboard heaters in general not required to c...

Do these carry an Energy Star Rating? If not, are baseboard heaters in general not required to carry a rating? Are there any baseboards heaters that do carry an Energy Star rating? My city building department is requiring it.
Asked by: Pablo
Good Afternoon, Electric heat is sufficient and does not require Energy Star Rating. Thank you
Answered by: DimplexCustomerService
Date published: 2017-03-10
  • y_2017, m_9, d_15, h_18CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.3
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_3
  • loc_, sid_203568509, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 115ms
  • QUESTIONS, PRODUCT

Customer Reviews

60 in. 2500-Watt Linear Convector Baseboard Heater is rated 3.3 out of 5 by 15.
Rated 4 out of 5 by from As for its use, it is heating the room well (remember you will need to buy a separate thermostat ... As for its use, it is heating the room well (remember you will need to buy a separate thermostat to operate this product.) I am curious to see how long it may last before it needs replacement. I would give this a 4 star rating on installation -- not as easy as it could be. Why are we using square driver heads on the mounting screws in our age of "uniform phillips?" If they would change the heads on those screws to phillips, I would upgrade this rating to 4 stars. Also, you may want to have help in installing it to complete a clean installation, as it is long and a second pair of hands can help level it on the wall.
Date published: 2017-05-30
Rated 1 out of 5 by from Unreliable This unit does get very hot and did a good job for the first winter. Last week it started to cycle on and off following the high temperature limit switch and the room wouldn't reach the thermostat set-point. As mentioned by another revewer, the aluminum fins (and the whole heating assembly) is floating inside the casing and can rotate allowing the fins to touch the capillary of the high limit causing a premature opening of the circuit. It is a design flaw. I would not buy this particular design again.
Date published: 2015-03-10
Rated 5 out of 5 by from Works Great! I bought this heater for my basement, a space that is roughly 20' x 20'. I am using a proportional thermostat with it and it heats the space quickly and quietly. I have purchased and installed other sized Dimplex convection baseboard heaters throughout my house and it is amazing how quickly the spaces heat up. I really like how compact they are and little space the take up on the walls. I would recommend these heaters and I will use them again. I have also used the DImplex heaters with the built in thermostats, they work great too.
Date published: 2012-10-14
Rated 5 out of 5 by from We bought two regular baseboard heaters and, once installed, found that they did not heat the are... We bought two regular baseboard heaters and, once installed, found that they did not heat the area we needed. I found these and decided to give them a try. Not only are they very sleek looking, they also heat amazingly. You could feel the heat coming from the unit standing 5 feet away from it. Heated the room within minutes. I would definitely recommend these heaters!
Date published: 2017-01-25
Rated 4 out of 5 by from Not noisy Contrary to previous reviews, these heaters are not noisy. They are easy to install, far better looking that the old style and throw out a lot of heat. There are only a couple of issues as far as I can see. The first is just an inconvenience. Because they are smaller than the old heaters, replacing them means not only installing the heater, but redoing your baseboards. The second issue is only relevant if you want to install the integral thermostat which you can buy separately. (They are a little expensive for what they are by the way) The thermostat is easy to install other than the push outs on the heater are a bit of a pain to get out neatly. The main issue is that they have gone and spoiled the whole thing by supplying a cheap and nasty control knob with the thermostat. The notched barrel which fits on the spindle is a soft plastic with no reinforcement, so it feels as if it's going to twist off all the time. You have to be real gentle with it.
Date published: 2013-12-16
Rated 5 out of 5 by from Compact, no annoying ticking sounds when unit is on , Installation relatively simple didn't have ... Compact, no annoying ticking sounds when unit is on , Installation relatively simple didn't have to hire an electrician to do the job, heats up quickly and out performs the original 8 footer that I replaced it with
Date published: 2017-03-01
Rated 5 out of 5 by from great unit !!! very good and works as advertised would reccomend anytime the unit also looks great great unit !!! very good and works as advertised would reccomend anytime the unit also looks great
Date published: 2017-01-10
Rated 1 out of 5 by from My experience with using Dimplex baseboard heaters to heat my home, has been a negative one. My experience with Dimplex Baseboard Heaters, after two years use. The heaters I purchased do Heat up the wall quite HOT. I have SCORCHED PAINT spots on the wall in my daughters bedroom. Too lessen the heating off the wall, I have shimmed them out a half inch, to a couple and even a few Items have too easily dropped into these heaters, due to open top design. We experience an toy figurine being melted atop of this heater in my sons bedroom. All my Dimplex heaters do make noise even after being replaced and the replacement used for a while. The noise we experience is more problematic the longer units. The sounds are humming, as well as clicking. The aluminum heat exchanger fins have rotated over time. They are not well secured to the heating element.
Date published: 2015-02-11
