Model # 1004931BCH

Internet #202276728

Store SKU #550725

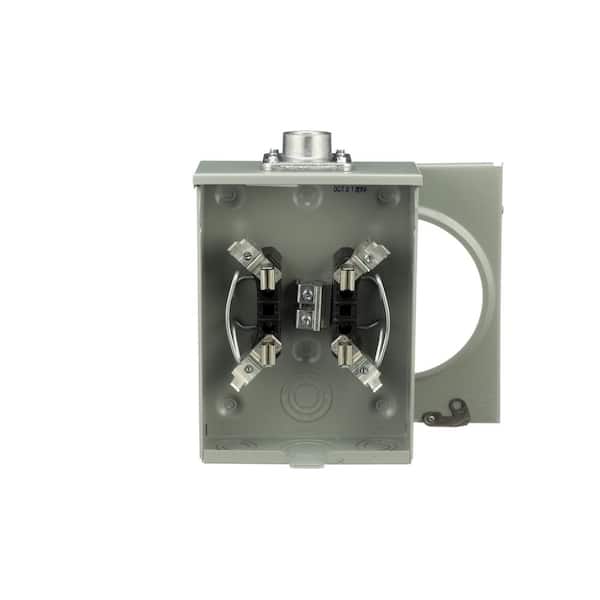

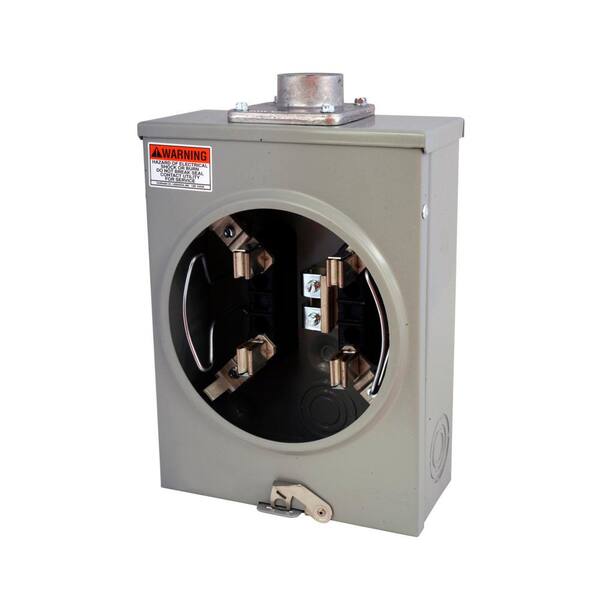

Eaton 125 Amp Overhead Meter Socket
0786685160207

Eaton

125 Amp Overhead Meter Socket

  • 1-piece enclosure eliminates tampering and extends product life
  • Ease of installation allows contractors to save time and money
  • Available in either surface or flush mounted outdoor enclosure
$3297 /each
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

  • 1-piece enclosure eliminates tampering and extends product life
  • Ease of installation allows contractors to save time and money
  • Available in either surface or flush mounted outdoor enclosure
Eaton's line of single position, self-contained meter sockets house the utilities electrical watt-hour meters in residential and commercial buildings. Sockets work with a circuit breaker distribution section in a rainproof enclosure for residential installations, rural service entrance, mobile homes, and for temporary power on construction sites. All single meter sockets are UL labeled and are supplied in surface mounted outdoor enclosures. Confirm local utility acceptance prior to order entry.
  • Meter socket amp rating is 125 Amp
  • Number of jaws - 4
  • Number of sockets - 1
  • Service-overhead
  • Opening Hub or closure plate -1-1/4 in. bolt-on hub
  • Horn bypass
  • Security type: ringless
  • Voltage rating: 600V

Product Overview

Eaton's line of single position, self-contained meter sockets house the utilities electrical watt-hour meters in residential and commercial buildings. Sockets work with a circuit breaker distribution section in a rainproof enclosure for residential installations, rural service entrance, mobile homes, and for temporary power on construction sites. All single meter sockets are UL labeled and are supplied in surface mounted outdoor enclosures. Confirm local utility acceptance prior to order entry.

  • Meter socket amp rating is 125 Amp
  • Number of jaws - 4
  • Number of sockets - 1
  • Service-overhead
  • Opening Hub or closure plate -1-1/4 in. bolt-on hub
  • Horn bypass
  • Security type: ringless
  • Voltage rating: 600V

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.

Compare Similar

Price
$29.97 /each
$32.97 /each
$35.97 /each
$43.41 /each
Name 100 Amp Single Meter Socket 125 Amp Overhead Meter Socket 200 Amp Single Meter Socket (ConEd Approved) 200 Amp Single Meter Socket
Brand Eaton Eaton Eaton Eaton
Ratings (1) (1) (0) (0)
Number of Gangs 1 1 1 1
Meter Socket Type Horn Bypass Horn Bypass Ring Horn Bypass
Service feed type Overhead/underground Overhead only Overhead only Underground only
Maximum Amperage (amps) 100 125 200 200
Number of Spaces 0 1 1 1
View Product View Product View Product View Product

Specifications

Dimensions

Product Depth (in.)
4.375
Product Height (in.)
12.13
Product Width (in.)
8.0

Details

Electrical Product Type
Meter Socket
Maximum Amperage (amps)
125
Meter Socket Type
Horn Bypass
Number of Gangs
1
Number of Phases
1
Number of Spaces
1
Power Distribution Features
No Additional Features
Product Weight (lb.)
6lb
Returnable
90-Day
Service feed type
Overhead only

Warranty / Certifications

Certifications and Listings
1-UL Listed,ANSI Certified
Manufacturer Warranty
1 Year

Specifications

Dimensions

Product Depth (in.)
4.375
Product Height (in.)
12.13
Product Width (in.)
8.0

Details

Electrical Product Type
Meter Socket
Maximum Amperage (amps)
125
Meter Socket Type
Horn Bypass
Number of Gangs
1
Number of Phases
1
Number of Spaces
1
Power Distribution Features
No Additional Features
Product Weight (lb.)
6lb
Returnable
90-Day
Service feed type
Overhead only

Warranty / Certifications

Certifications and Listings
1-UL Listed,ANSI Certified
Manufacturer Warranty
1 Year

More Products With These Features

Search

Questions & Answers

  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 140ms
  • QUESTIONS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

Customer Reviews

125 Amp Overhead Meter Socket is rated 1.0 out of 5 by 1.
Rated 1 out of 5 by from Good Material Quality but bad Quality Control. The earth ground electrode bonding block was missing the drilled and taped holes for the securing set screws. The remaining part of the unit was of good quality.
Date published: 2014-12-11
