Model # 3BR1836L150

Internet #100194442

Store SKU #193047

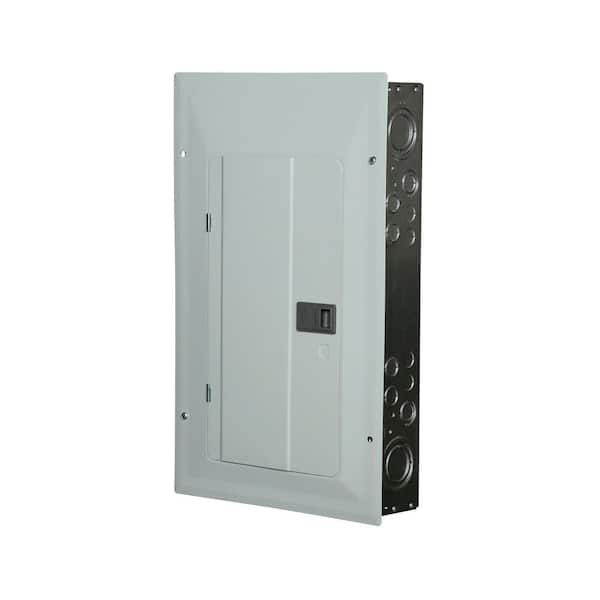

Eaton 150 Amp 18-Space 36-Circuit Type BR 3 Phase Main Lug Load Center
0786676441551

Eaton

150 Amp 18-Space 36-Circuit Type BR 3 Phase Main Lug Load Center

  • Tin plated Aluminum bus
  • Steel backpan for reliable breaker mounting
  • Twin neutral bars for ease of installation
$10900 /each
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

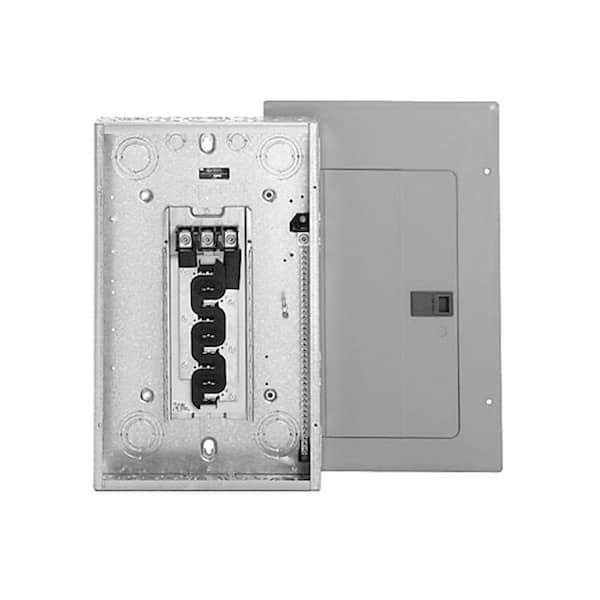

Specially designed for easy installation, Eaton's BR load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. This panel is a main lug panel which is used as sub-panel to add circuits to an existing main breaker panel. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets. The 3BR1836L150 is a 150 amp 3 phase main lug with 18 spaces and 36 circuits.

  • Amperage rating: 150A
  • Bus material: Aluminum
  • Rated NEMA 1 for indoor use
  • Interrupt rating: 25 kAIC
  • Mounting: Combination
  • Number of circuits: 36
  • Number of spaces: 18
  • Phase: Three-phase
  • Voltage rating: 208Y/120 or 240V
  • Wire size: #1-300 kcmil Cu/Al at 60°C or 75°C
  • “Tangential” center knockout easier installation for conduit applications
  • Steel back pan provides solid and reliable breaker mounting—single piece design for stability and durability
  • Single keyhole mounting -one keyhole at the top and bottom provides easier mounting and leveling
  • Drywall marking on enclosure - indicates proper mounting depth for flush applications
  • 3 Phase Applications: strip malls, small office buildings, high rise residential buildings, areas where reduced depth is required, custom homes and workshops, and 3-phase renovation projects
  • Used With: Type BR breakers
  • Learn More About Electrical Panels Here in our Buying Guide.

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.

Specifications

Dimensions

Load center depth (in.)
3.88
Load center height (in.)
29.13
Load center width (in.)
14.31

Details

Electrical Product Type
Load Center
Indoor/Outdoor
Indoor
Load Center Type
Main Lug
Maximum Amperage (amps)
150
Mounting type
Plug In
Number of Phases
3
Number of Spaces
18
Product Weight (lb.)
21.3lb
Returnable
90-Day
Voltage (volts)
120/240

Warranty / Certifications

Certifications and Listings
1-UL Listed,ANSI Certified,CSA Listed
Manufacturer Warranty
10 Years

More Products With These Features

Search

Customer Questions & Answers

what is the size of the box?

Asked by: rappid
The load center measures 14.31 x 29.13 x 3.88 inches.
Answered by: CommunityAnswer
Date published: 2016-02-24
