1/2 HP Shallow Well Jet Pump-J100A3 - The Home Depot
Discontinued

Model # J100A3

Internet # 204478343

Store SKU # 1000026697

1/2 HP Shallow Well Jet Pump


1/2 HP Shallow Well Jet Pump


This item has been discontinued.
The Home Depot no longer carries this specific product.

$188.00 / each
Loading...

PRODUCT OVERVIEW

Model # J100A3

Internet # 204478343

Store SKU # 1000026697

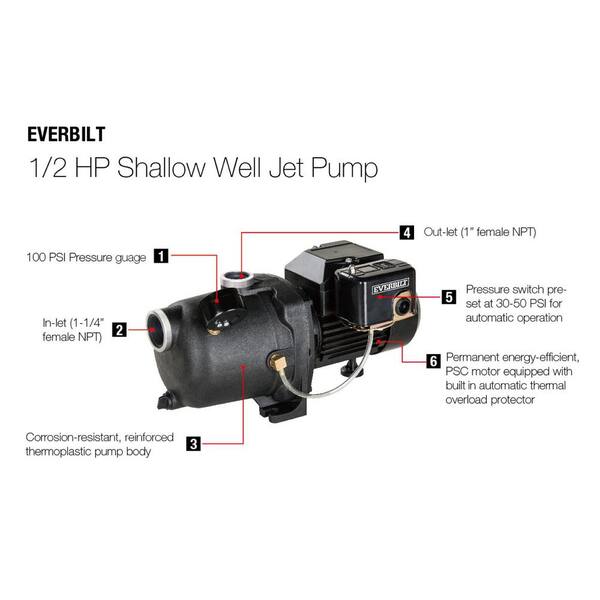

The Everbilt 1/2 HP shallow-well jet pump has a pre-wired pressure switch 30/50 psi for automatic operation and self-primes after the housing is initially filled with water. The fiberglass-reinforced thermoplastic pump housing resists corrosion. This pump comes ready to install and is designed for wells with pumping levels of 25 ft. or less. This jet pump has a fan-cooled and dual voltage 115/230-Volt motor.

  • Thermoplastic pump housing for rust free
  • Superior performance at depths to water of 25 ft. or less
  • Heavy-duty dual-voltage 115/230-Volt motor, pre-set at 230-Volt
  • Self-priming after pump housing is initially filled

SPECIFICATIONS

Dimensions
Assembled Depth (in.)  7.87 in  Assembled Height (in.)  8.07 in
Assembled Width (in.)  15.16 in  Product Depth (in.)  16.54
Product Height (in.)  8.98  Product Width (in.)  9.45
Details
Adjustable Speed  No  Amperage (amps)  3.5
Cord Length (ft.)  Corrosion Resistant  Yes
Discharge Flow 0 ft. @ 40 PSI (gallons/hour)  432  Discharge Flow 15 ft. @ 40 PSI (gallons/hour)  330
Discharge Flow 25 ft. @ 40 PSI (gallons/hour)  270  Discharge Flow 40 ft. @ 40 PSI (gallons/hour)
Discharge Flow 5 ft. @ 40 PSI (gallons/hour)  Discharge Flow 60 ft. @ 40 PSI (gallons/hour)
Discharge Flow 90 ft. @ 40 PSI (gallons/hour)  Float Switch  No
Hardware Included  No  Head Pressure (ft.)  40
Horsepower (hp)  0.5 hp  Housing Material  Thermoplastic
Inlet Connection  Threaded female  Jet Pump Product Type  Shallow Well
Maximum Pressure (psi)  63  Maximum Working Temperature (F)  77
Minimum working temperature (F)  35  Non-Clogging  No
Number of Impellers  Outlet Connection  Threaded female
Power Type Required  AC  Product Weight (lb.)  15.15 lb
Pump Switch Type  Switchless  Returnable  90-Day
Self-Priming  Yes  Thermal Overload Protection  Yes
Voltage (volts)  230  With Tank  No
Warranty / Certifications
Certifications and Listings  CSA Listed  Manufacturer Warranty  1 year

CUSTOMER REVIEWS

Rated 3.7 out of 5 by 12 reviewers.
Rated 1.0 out of 5.0 by Dissatisfied I started to install this pump today. I threaded in the intake PVC 1 1/4 inch coupling and the plastic casing split. I wrapped it with teflon tape per instructions and only had it threaded in 1/2 way and a crack developed. I'm not very happy. Will return it to the store and see what happens. December 11, 2014
Rated 4.0 out of 5.0 by Nice price, good quality I bought this pump to replace a burned out one. Easy to install, easy to follow instructions. After installing and priming, The pump ran for about one minute, over heated and quit. It did not even get to 40 psi. I did some checking to find out what was wrong, and found the expansion tank pressure was at 35 psi, I reset it to 28 psi and the pump worked fine and has been doing good for about a month. The pressure reaches it's cutoff of 50 psi and the pump shuts off, When the pressure drops to the cut in of 30 psi the pump starts and runs. no more problems. October 18, 2014
Rated 5.0 out of 5.0 by Good product, great price I used this pump to replace one I got last week at Lowes the had a rubber gasket between the pump and a deeper well adapter that had to be bolted onto the pump in order to get any pressure. That darn rubber gasket blew out three time in a week so I went to Home Depot for a simpler pump. November 4, 2014
Rated 4.0 out of 5.0 by Does what it is supposed to... This is a decent cheaper pump. It does what it is supposed to do, and that is pump water. Make sure that the electrical connections are correct for what you have, as this will run 230/120. If you hook it up wrong, it will fry. Even though it self-primes, it must be initially filled so that it can function. In my installation, I did not gauge the static pressure, but flow is around 5-6 GPM. I'm not sure how long it will work, but it's doing a fine job for right now. August 29, 2014
Rated 5.0 out of 5.0 by great product As advertised, cheap and easy to install. I was replacing a 30 year old Gould's pump and was worried about connections, but after removing the old pump the new one dropped in with no modifications necessary. Started immediately but took a while to prime (about 5 minutes). Had to disassemble twice due to leaks ( use more Teflon, not less and really tighten -you wwon't break the plastic housing) and voila...start to finish was 3 hours including 1/2 hour to the store. December 31, 2014
Rated 5.0 out of 5.0 by Shallow well jet pump It was a replacement for a 20 year old shallow well pump. The pump was easy to install since it was replacing an old one. It primed easily and actually 'pulls' more water from our well than the previous pump did. October 7, 2014
Rated 4.0 out of 5.0 by Working pump! We have water! This is basic thermoplastic shallow well pump. We purchased it to replace an old 1/2 HP pump which finaly destroyed itself rather wetly. Replacement cost/time to purchase a likekind pump was in excess of $300 and more than a week. This pump was available at the store. Physical Installation: The pump did not fit the 4"-on-center mounting holes on our well tank (it has 5"-on-center open mounts) with a foot on the motor. We had to build a plywood pump mount. Physical mounting was easy after that. It isphysically light (~14 lbs total, 16 or 17 lb. filled). Pipe installation was straightforward: 1-1/4" inlet, 1" outlet (NPT). Both inlet and outlet have some bulk/heft/strength. I installed a priming valveabovethe outlet (nipple, tee to house, valve above with plug (prime by opening valve and pour water in until inlet piping is full, close valve. Repeat as needed. Plug other side of valve when done - keeps stuff out of valve). Electrical: The pump is prewired for 230VAC. Do the switch in the cover for 115VAC. You will fry the motor otherwise. We paid attention to LINE(white) and POWER (black) locations. Startup: PRIME the pump BEFORE stating the electrical. Okay? PRIME.THE.PUMP. Started right up for me (220VAC single phase, 12' pull from water surface, good foot valve). Quality: build is OK but isn't standard C face motor (so I couldn't use the existing pump mount). Volume: it keep up with running a shower whichis what we need. I'd say it completely filled our 20 gal tank in about 4 minutes so we're getting about 5 gpm at pressure. Overall: it works, and so far it has no issues. We're happy. July 5, 2014
Rated 5.0 out of 5.0 by great pump easy to read instructions. 1/2hp pressure guage already attached to pump. 115/230volt made easy with a switch attach. August 29, 2014
