Model # 5020S13

Internet #202088376

Store SKU #707800

Everbilt 130 lbs. Extension Springs (2-Pack)
0099713033627

Everbilt

130 lbs. Extension Springs (2-Pack)

$1898 /each
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

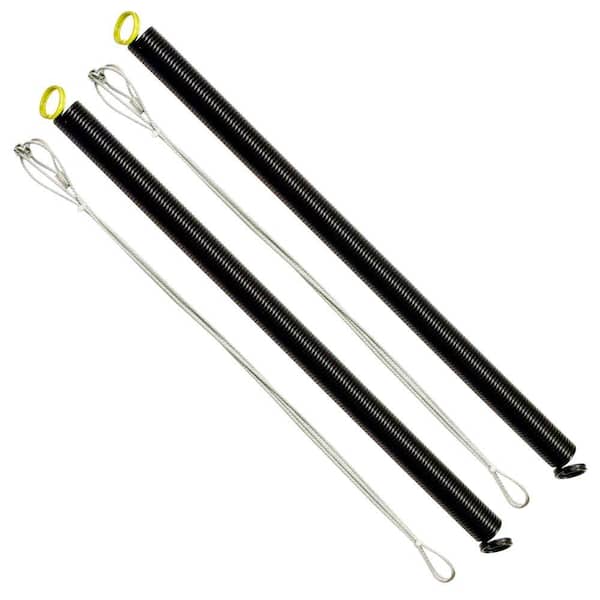

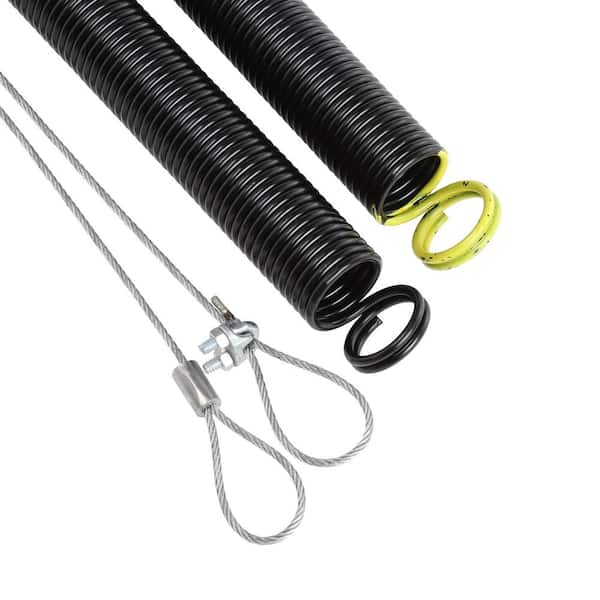

The Everbilt 130 lbs. Extension Springs (2-Pack) are made of spring steel and designed to be mounted perpendicular above the horizontal track of the garage door. They stretch to provide lifting power for the garage door. The springs have a safety cable inside to prevent injury in case of accidental breakage.

  • Ideal for single-car fiberglass doors
  • Safe length when stretched of 67 in. according to ansi/dasma 103
  • Able to lift garage doors up to 130 lbs.
  • Color-coded yellow to indicate weight-bearing capacity
  • Durable and tested to open and close the door at least 10,000 times
  • Cable clamp included

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.

Specifications

Dimensions

Details

Warranty / Certifications

More Products With These Features

Search

Customer Questions & Answers

How do I determine what spring I will need to replace the broken one?

Asked by: shark
They say to go by the color code on the end of the spring, but if yours are rust-colored, like mine were, go by the thickness of the wire. If you don't have a micrometer, you'll have to guesstimate, but when you get the new springs home, compare the weights of the new and old springs. If the new ones aren't as heavy, they're too thin. Take them back and get the next size up.
Answered by: HapHazzard
Date published: 2017-06-07

Where are the springs used?

Asked by: Arlene
on yourfront door
Answered by: Lew
Date published: 2017-05-02

the cable in the box with the springs is to short. it needs to be 12 foot long.

the one with the springs want work
Asked by: martin
my 9ft safety cable is long enough for my 4 panel 7ft high garage door its a safety cable that is suppose to be routed from back of spring from rear support bracket run through spring and tie to front support bracket if spring breaks cable stops spring from flying. maybe you have bigger garage doors or your going about it wrong
Answered by: Xavier
Date published: 2017-01-04

Stiffness question

This is related to an earlier answer: "The 130lb spring has a stiffness of 2.35 pounds per inch." Since the max. extension of 42 inches (67 - 25), and the force at that extension is 65 lb (half of the 130 lb load). Thus the calculated stiffness is more like 1.55 lb/inch. Don't understand why the answer is 2.35 above. My door weighs 120 lb, and I am wondering if I should go with the 130 lb springs.
Asked by: Glenn
Two springs share the load. One spring carries 65 lbs and the other carries 65 lbs, or 135 lbs total.
Answered by: Greg
Date published: 2017-01-16
  • y_2017, m_7, d_19, h_12CST
  • bvseo_bulk, prod_bvqa, vn_bulk_1.0.0-hotfix-1
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_11
  • loc_, sid_202088376, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 96ms
  • QUESTIONS, PRODUCT

Customer Reviews

130 lbs. Extension Springs (2-Pack) is rated 4.6 out of 5 by 43.
Rated 5 out of 5 by from The springs themselves are relatively easy to work with. The trick is where they must attach to t... The springs themselves are relatively easy to work with. The trick is where they must attach to the supports for the garage door. This varies from door to door. It is important to get springs capable of handling more than the weight of the door. I have now replaced 3 of 4 springs for my two doors due to failure of the original springs.
Date published: 2017-05-23
Rated 5 out of 5 by from Easy to install, did have to purchase an eyebolt due to the fact the old spring that broke had th... Easy to install, did have to purchase an eyebolt due to the fact the old spring that broke had the eyebolt imbedded in it. So far as so good.
Date published: 2017-03-14
Rated 5 out of 5 by from Perfect Yellow Replacement Springs for My Garage Door My garage door just would not open more th... Perfect Yellow Replacement Springs for My Garage Door My garage door just would not open more than a couple of feet. These Everbilt Extension Springs (Yellow) with Safety Cables were just what the doctor ordered. While at Home Depot I also purchased replacement pulleys and extension cables to complete the update. I first watched an installation video online and went to work taking my time and being safe, finishing in just a bit over an hour and a half. The springs and cables fit perfectly and the installation went much more easily than I expected. Everything aligned and fit and attached perfectly. I'm happy and my garage door opens and closes like it's supposed to.
Date published: 2017-07-13
Rated 1 out of 5 by from Installed 2 sets - easy and worked great. 16 months later - completely worn out. Door falls like ... Installed 2 sets - easy and worked great. 16 months later - completely worn out. Door falls like there are no springs at all, opener overloads and shuts off. Light use, one door doesn't even have a car behind it. Pitiful - what kind of metal are these - zinc?
Date published: 2017-07-06
Rated 4 out of 5 by from Good price and easy to install. But watch out, this 130lbs springs is for double garage door. I... Good price and easy to install. But watch out, this 130lbs springs is for double garage door. I tried on my single garage door, and it would not close all the way due to its tension strength. I had to return it for 90lbs, which worked perfectly.
Date published: 2017-04-14
Rated 5 out of 5 by from My neighbor installed the springs for me and my garage door works well. So much less expensive th... My neighbor installed the springs for me and my garage door works well. So much less expensive than having a new door installed. Since I do not have an automatic opener the new springs make it easier to open and close the door.
Date published: 2017-07-11
Rated 4 out of 5 by from So far so good. We'll see how long they last... So far so good. We'll see how long they last but the price was fantastic compared to the competitors. Replaced the springs and casters on both doors, both operate nice and smooth.
Date published: 2017-03-28
Rated 5 out of 5 by from These springs are sooo much better than the ones that came with the original door. Granted it has... These springs are sooo much better than the ones that came with the original door. Granted it has been a long time (doors are wood) but a nice improvement!
Date published: 2017-03-15
