Model # DP001

Internet #205675915

FloorHeat 1-Zone Preassembled Radiant Heat Distribution/Control Panel System


1-Zone Preassembled Radiant Heat Distribution/Control Panel System

$160900 /each

Frequently Bought Together

Product Overview

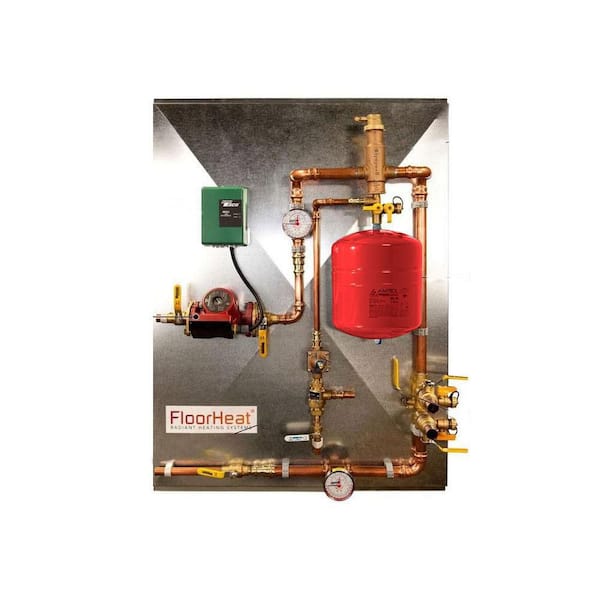

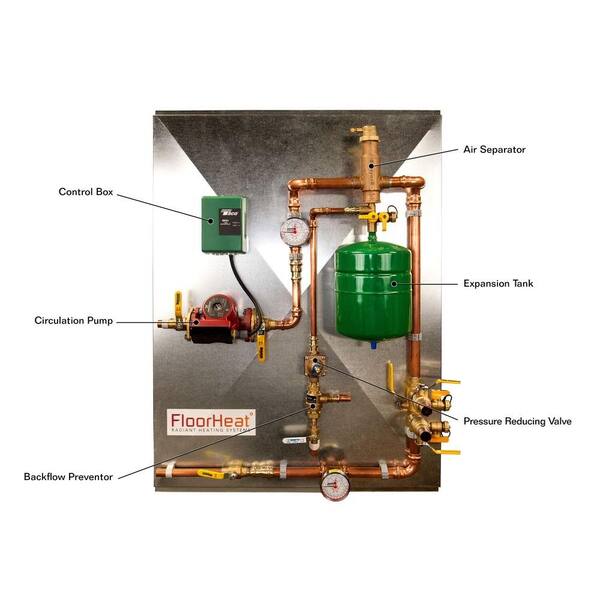

Prefabricated Distribution/Control panel helps to simplify your radiant heat installation. Our distribution panels for radiant heat have all the necessary components to operate radiant systems and pass all local building codes. The FloorHeat professionally preassembled hydronic heating control panels save time and money. On-site work will be minimized to connecting your supply and return lines to the boiler and manifolds, electrical wiring and providing make-up water supply. No soldering is required. Additionally pumps can be added to the panel making them easily expandable from 1 to 2 or 3 zones. Priming the radiant floor system and priming the boiler is convenient and easy. The 1 in. copper tubing is large enough to accommodate both large and small projects. All panels are pressure tested prior to leaving our facility and are carefully packaged to assure safe delivery.

  • Attractive space saving design to optimize interior functionality
  • Saves time, labor and money
  • Provides energy-efficient heating
  • Simplifies installation




Warranty / Certifications

More Products With These Features


Customer Questions & Answers

Does this come with instructions as to where to connect the water source, hot water that goes to ...

Does this come with instructions as to where to connect the water source, hot water that goes to the floor the return lines etc?
Asked by: Humberto
Yes, the instructions are very through.
Answered by: Gary-Floor Heat
Date published: 2017-01-31

Will this system work with underneath the flooring in crawlspace joices? Do you sell the under floorboard tubing also?

Example: I have looked at the manual and can't figure out what I did wrong.
Asked by: Wolffie
After reading your question I believe that you have a number of concerns which might be easier to talk through than to try to answer via text messages. At your convenience please call us at 888-265-5455 between 8:00 am and 5:00 pm Eastern Standard time.
Answered by: Gary-Floor Heat
Date published: 2016-12-07

Not sure what you want for verification of the question of what size tankless electric water do I need for 900 sq. ft. floor. If more is needed, ask.

Asked by: Epju64a
A better type of heat source is a (natural or propane) gas fired modulating type boiler. The fluid volume within the jacket of the modulating type boiler is smaller in comparison to a tank type electric water heater. The electric water heater has to cycle regularly to maintain the preset temperature of the actual storage of the tank itself. If not selected to the right proportion, the volume of the radiant heat loops totality can effect the call for heat and the satisfying of the of the radiant heat thermostat. In other words, an electric water will be more costly to run utility bill wise. Heating and maintaining the mass of hot water in being ready for a zone thermostat to call for heat. A modulating type boiler only runs and cycles only in direct proportion to the amount of fluid in the radiant zone run, thus saving money on the utility cost.
Answered by: dept26plumbing
Date published: 2016-09-20

How large of a tankless water heater do I need for a 900 sq ft floor with this system?

Asked by: Epju64a
There are a number of factors that enter into making this determination, the region of the country where you are located, the ambient temperature, the number of windows, the height of the ceiling, the amount of insulation etc. Ideally a heat load analysis should be done. With that said if you have a tank-less water heater that is 60,000 BTU it should more than accommodate most situations.
Answered by: Gary-Floor Heat
Date published: 2016-12-07
