Model # TSMR415CSCUGP

Internet #204326730

Store SKU #1000018638

GE 150 Amp 4 Space 8 Circuit Outdoor Combination Main Breaker/Ringless Meter Socket Load Center
0783164430929

GE

150 Amp 4 Space 8 Circuit Outdoor Combination Main Breaker/Ringless Meter Socket Load Center

  • Meets requirements from georgia power
  • Ringless meter cover
  • Single latch centrally located hasp on meter cover
$12257 /each
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

  • Meets requirements from georgia power
  • Ringless meter cover
  • Single latch centrally located hasp on meter cover
Whether a building is powered by overhead lines or underground feeder cable, you can use this GE PowerMark Gold 150 Amp 4-Space 8-Circuit Ring less Meter Socket Combination Load Center. It is approved for use in Georgia Power areas. This unit is built to withstand the toughest environments.

Product Overview

  • Meets requirements from georgia power
  • Ringless meter cover
  • Single latch centrally located hasp on meter cover
Model #: TSMR415CSCUGP
Sku #: 1000018638
Internet #: 204326730

Whether a building is powered by overhead lines or underground feeder cable, you can use this GE PowerMark Gold 150 Amp 4-Space 8-Circuit Ring less Meter Socket Combination Load Center. It is approved for use in Georgia Power areas. This unit is built to withstand the toughest environments.

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Price
$119.00 /each
$122.57 /each
$137.00 /each
$149.00 /each
Name Power Mark Gold 200 Amp 4-Space 8-Circuit Meter Socket Load Center 150 Amp 4 Space 8 Circuit Outdoor Combination Main Breaker/Ringless Meter Socket Load Center 150 Amp 4-Space 8-Circuit Combination Main Breaker/Ringless Meter Socket Outdoor Load Center 200 Amp 8-Space 16-Circuit Outdoor Combination Main Lug Meter Socket Load Center
Brand GE GE GE GE
Ratings (1) (1) (0) (1)
Mounting type Plug In Plug In Plug In Plug In
Maximum Amperage (amps) 200 200 150 200
Number of Spaces 4 4 4 8
Voltage (volts) 240 240 240 240
View Product View Product View Product View Product

Specifications

Dimensions

Load center depth (in.)
6.1875
Load center height (in.)
33.563
Load center width (in.)
14.563

Details

Electrical Product Type
Load Center
Indoor/Outdoor
Outdoor
Load Center Type
Combination
Maximum Amperage (amps)
200
Mounting type
Plug In
Number of Phases
1
Number of Spaces
4
Product Weight (lb.)
35lb
Returnable
90-Day
Voltage (volts)
240

Warranty / Certifications

Certifications and Listings
1-UL Listed
Manufacturer Warranty
Limited Lifetime

Specifications

Dimensions

Load center depth (in.)
6.1875
Load center height (in.)
33.563
Load center width (in.)
14.563

Details

Electrical Product Type
Load Center
Indoor/Outdoor
Outdoor
Load Center Type
Combination
Maximum Amperage (amps)
200
Mounting type
Plug In
Number of Phases
1
Number of Spaces
4
Product Weight (lb.)
35lb
Returnable
90-Day
Voltage (volts)
240

Warranty / Certifications

Certifications and Listings
1-UL Listed
Manufacturer Warranty
Limited Lifetime

Questions & Answers

Does this panel come equipped with a 150 amp main breaker included?

Asked by: hardwired513
Yes, it includes a 150A main circuit breaker and lugs below to add additional breakers for other circuits feeding other loads that are not fed by main circuit breaker.
Answered by: Carlos1
Date published: 2015-11-06

Main Breaker

Can you remove the 150 amp main breaker and install a 60 amp main breaker?
Asked by: Biff
Thank you for your recent inquiry with The Home Depot, Biff.. This Main Breaker is designed to be used as is from the manufacturer with no modification other than those approved as it is designed for. We appreciate your business and look forward to serving you in the future. Thank you for shopping Home Depot.
Answered by: THDSupport
Date published: 2015-10-15

does it has two box space up/down and 3 cover panels?

what does the 4 breakers with single handle do? is it main 150A breaker? which 15/20A breaker suitable for it?
Asked by: jdai

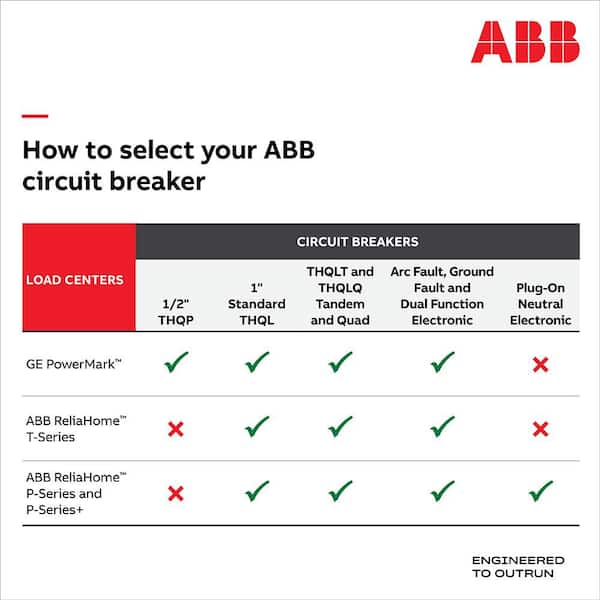

Dear Valued Home Depot Customer, We have reached out to the MFG for more information and their response is below. " The main in the picture appears to be 4 breakers but is one solid 150A main breaker. It accepts THQL 1” or THQP ½” breakers".
Answered by: Giorgio
Date published: 2015-09-20

Does the main breaker protect all loads on the feeder?

Does the main breaker serve as a main breaker for the main load combined with the 4 additional spaces or are the 4 additional spaces completely independent from the main breaker?
Asked by: bill4123
  • y_2017, m_10, d_20, h_6CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.3
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_4
  • loc_, sid_204326730, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 20ms
  • QUESTIONS, PRODUCT

Customer Reviews

150 Amp 4 Space 8 Circuit Outdoor Combination Main Breaker/Ringless Meter Socket Load Center is rated 3.0 out of 5 by 1.
Rated 3 out of 5 by from Will give tghis product a second chance without hesitation Began installing today the meter socket load center. After applying the specified torque of 275 inches-pounds (22.8 ft-lbs) on the socket lug, with copper 1 AWG wire on the neutral lug, I began applying the same torque to the first meter lug on the meter socket. Before reaching the specified torque, the plastic base broke of in pieces. I returned the unit without any issues at Home Depot as defective. These things happen every once in a while in manufacturing, and it could have been caused by a defective thermoplastic base that was not well cured. The attitude and customer service at Home Depot was so good, that I will order a second one, in spite of the inconvenience. Every seller is great when things go well, the really great ones step up when they don't go well.
Date published: 2015-06-24
