Model # THQLLX4

Internet #100674080

GE PowerMark Gold Generator Interlock Kit
0783164050936

GE

PowerMark Gold Generator Interlock Kit

$39.97 /each

Frequently Bought Together

Product Overview

The Interlock Kit is for use to make an existing meter socket load center a generator panel. It is compatible with TSM415 or TSM420 PowerMark Gold meter socket load centers. The kit includes assembled base and interlock plates, interlock label, auxiliary breaker retainer, mounting hardware and instructions. This kit is UL listed and ANSI Certified.

  • Use to make an existing meter socket load center a generator panel
  • For use with GE PowerMark gold meter socket load centers
  • Compatible with new or existing TSM415 or TSM420 PowerMark gold meter socket load centers
  • Helps ensure the main breaker is in the off position before the branch breaker is back-fed from the generator or vice versa for safety
  • ANSI certified and CSA and UL listed
  • Suitable for use in accordance with article 702 of the NEC, ANSI/NFPA 70

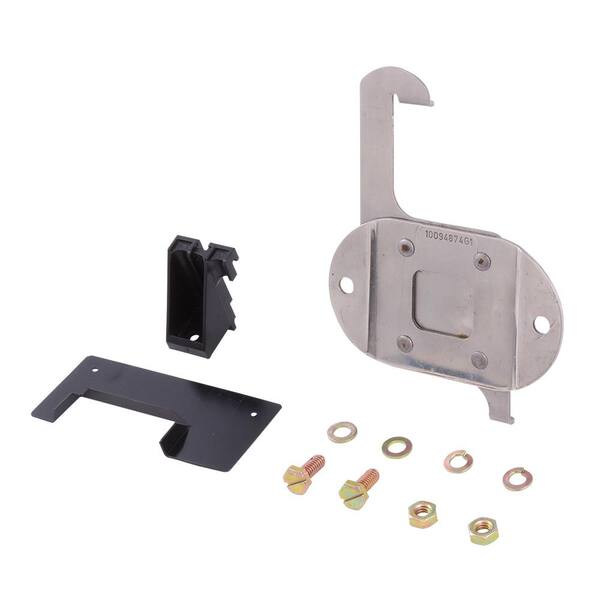

  • Includes assembled base and interlock plates, interlock label, auxiliary breaker retainer, mounting hardware and instructions
  • For more information go to geindustrial.com and search for publication DET-458A (detailed information sheet)

Specifications

Dimensions

Details

Warranty / Certifications

More Products With These Features

Search

Customer Questions & Answers

10 Questions8 Answers

Customer Questions & Answers

PowerMark Gold Generator Interlock Kit
PowerMark Gold Generator Interlock Kit

Ask your questions. Share your answers.



Clear Search Term


Sort By:

2 answers

do you have pictures of these kits installed

This question is from PowerMark Gold Generator Interlock Kit
Asked by
draymond
middletown
November 15, 2011
does one of these kits fit a 100 amp g.e panel breaker is on top and it goes left to right aswell as breakers under it and do you have any pictures on how its suppose to look installed on this one aswell as a 200 amp panel with up an down operation an breakers below it go left to right if not where can i get both of these kits thanks
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers (2)

Asked by
Miami, Florida
Read all my Q&A
Home Improvement Profile: DIYer
October 6, 2016
Answer:
I think I know what you mean. Go to GEindustrial.com and do a search for this document in their search field: DET-458A
That is a brochure with pictures.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

November 17, 2011
Answer:
Hello Valued Customer,
Thanks for your question and interest in this item. Per the vendor there is not a visual available for online viewing of Model # THQLLX4, Internet # 100674080 installed. We do apologize for the inconvenience. For trouble shooting and product compatitblity iquiries, please contact GEdirect at 1-800-431-7867.
If you have any additional questions or need assistance placing an online
Read More
Hello Valued Customer,
Thanks for your question and interest in this item. Per the vendor there is not a visual available for online viewing of Model # THQLLX4, Internet # 100674080 installed. We do apologize for the inconvenience. For trouble shooting and product compatitblity iquiries, please contact GEdirect at 1-800-431-7867.
If you have any additional questions or need assistance placing an online order, please contact our Online Customer Service department at 800-430-3376.
Thanks!
Read Less
-1point
0out of 1found this answer helpful.
Was this helpful?helpful0unhelpful1

1 answer

Will the GE Powermark Gold Generator Interlock Model #THQLLX4 work on a GE TM4020C load center with a vertical main? If not can you recommend one?

This question is from PowerMark Gold Generator Interlock Kit
Asked by
Bgsdad
Hammonton, NJ
December 25, 2012
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answer (1)

Asked by
Atlanta, GA
Read all my Q&A
January 4, 2013
Answer:
Hi BGSDad,
Thank you for your question.
I did reach out to the manufacturer on your question and they did confirm that Unfortunately there is not one available for use with a vertical main.
Hope this information helps.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

1 answer

Will this work on a TM2020CCUG panel with a 200A horizontal main that flips vertically, not side to side?

This question is from PowerMark Gold Generator Interlock Kit
Asked by
Bill
Middletown, NJ
November 18, 2012
The panel has a 200A horizontally mounted main that flips on and off vertically. The panel front is TM20EG
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answer (1)

Asked by
Atlanta, GA
Read all my Q&A
November 27, 2012
Answer:
Hi Bill,
Thank you for your questions.
I did reach out to the manufacturer and below is their comments:
No…There is not one available for load centers with vertical flipping breakers as that is an old style.
Hope this information helps.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

1 answer

interlock kit for GE Powermark Gold load center model ( tm402occu )

This question is from PowerMark Gold Generator Interlock Kit
Asked by
david
charleston wv
July 16, 2012
the box has in a row over the breakers (4 breakers for the main breaker )
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answer (1)

Asked by
Atlanta, GA
Read all my Q&A
July 19, 2012
Answer:
Hi David,
Thank you for your question.
I did reach out to the manufacturer and they recommend Model# THQLLX1 is the correct interlock kit for that load center .
I have also attached the product link below for your reference.
Hope this helps.
0points
