Gardner Bender 600 Amp 4 Functions 8 Ranges AC ClAmp Meter with Lockjaw-GCM-500 - The Home Depot
Discontinued

Gardner Bender

Model # GCM-500

Internet # 202867879

600 Amp 4 Functions 8 Ranges AC ClAmp Meter with Lockjaw

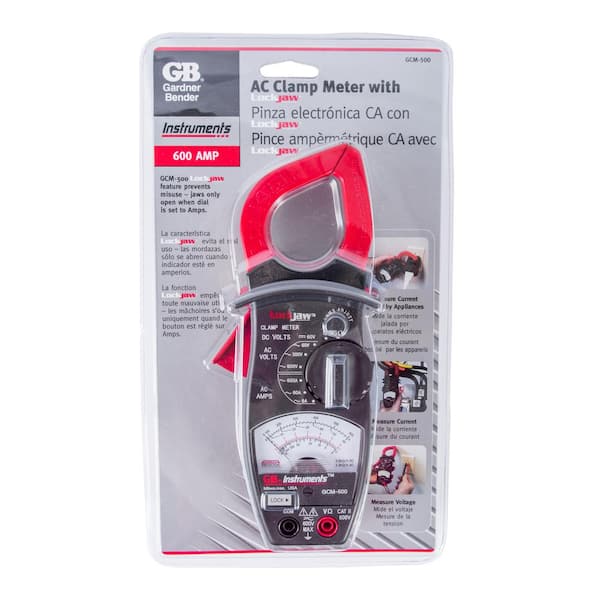

Gardner Bender 600 Amp 4 Functions 8 Ranges AC ClAmp Meter with Lockjaw


This item has been discontinued.
The Home Depot no longer carries this specific product.

$97.97 / each
Loading...

PRODUCT OVERVIEW

Model # GCM-500

Internet # 202867879

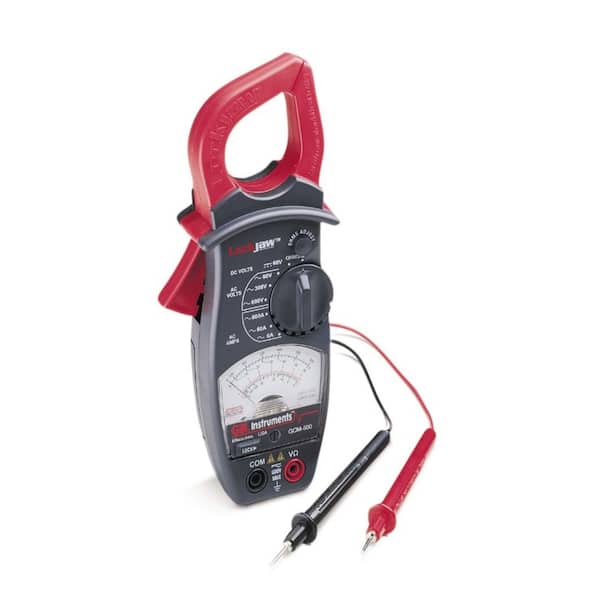

Gardner Bender manual style clAmp meter tests AC Current, AC Voltage, DC Voltage, Resistance and Continuity. Includes test leads and operating instructions. Durable case with a 3 ft. drop rating, 150 lb crush rating, and one year warranty.

  • Easy to read display
  • Lockjaw feature prevents misuse - jaws only open when dial is set to Amp s
  • Measure current
  • Measure voltage
  • Measure current drawn by appliances
  • Measurement lock features holds indicator in place
  • Uses only one AA battery
  • Uses one .5 Amp /250 Volt fuse
  • 1.25" Jaw Opening
  • ETL Listed
  • Home Depot Protection Plan:

    Home Depot Protection Plan

SPECIFICATIONS

Dimensions
Assembled Depth (in.)  2.75 in  Assembled Height (in.)  11.75 in
Assembled Width (in.)  6.75 in  Product Depth (in.)  1.5
Product Height (in.)  8.25  Product Width (in.)  3.5
Details
Audible Alert  No  Auto Ranging  No
Automatic Shut-off  Yes  Backlit  No
Batteries Included  No  Battery Charger Included  No
Battery Size  AA  Case Included  No
Category Rating  II  Control Type  Analog
Data Log/Record  No  Data hold  Yes
Display Type  Analog  Dual voltage indication  No
Handheld  Yes  Integral lead storage  No
Interchangeable leads  Yes  Low Battery Indicator  No
Measures  Resistance  Noncontact detection  No
Number of Batteries Required  Number of Functions
Number of Ranges  Product Weight (lb.)  .98 lb
RMS  No  Reference Scale Included  Yes
Returnable  90-Day  Test Meter Type  Clamp/Multimeter
Tools Product Type  Test Meter  Type  Clamp
Vibration Alert  No  Visual Alert  Yes
Voltage (volts)  60
Warranty / Certifications
Manufacturer Warranty  1 Year

CUSTOMER REVIEWS

Rated 2 out of 5 by 1 reviewer.
Rated 2 out of 5 by Seemingly great meter At first glance this meter appears to be of good qaulity. The jaw feels tight and the selecter knob feels good too. The largest problem for me is in the amperage feature. There are 3 settings, 0/6a, 10/60a, and 100 to 600 amps. Maxed out at the lowest setting you can see you are above 6 amps, so you switch over to 10/60 and you quickly realize that anywhere between 7 to 9 amps there is no way to accurately measure you load. This is a VERY COMMON range to see a 20a circuit floating in. Balancing loads would get frustrating very fast. The lockjaw feature is ok but a lot of us would like to use the jaw to hang off of something while we work in a panel etc. You're unable to do this in any other settings than amps. In the same price range and less this meter feels and looks like a radio shack piece of junk. Its about an 1 1/2" in depth and feels oversized and brittle. There is also no indicator showing battery level or that unit is working. I'll prob snag the leads and let the kids have at it. Do yourself a favor and grab an Ideal or Klein in the same price range. September 16, 2013
1-1 of 1
