Model # 6379

Internet #203835684

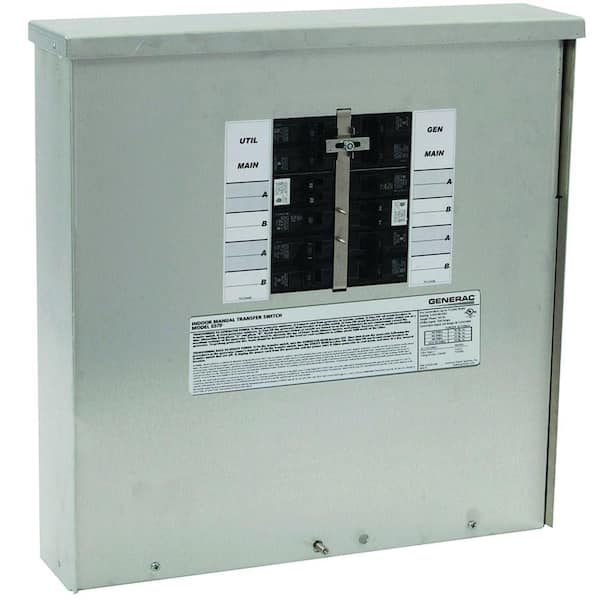

Generac 30-Amp Manual Transfer Switch 10-16 Circuits 7.5 kW Outdoor
0696471063790

Generac

30-Amp Manual Transfer Switch 10-16 Circuits 7.5 kW Outdoor

  • Back up hard wired appliances safely and easily
  • Accepts interchangeable breakers including arc fault and GFCI
  • 2-year warranty against mechanical defects
$44999 /each

Frequently Bought Together

Product Overview

During a power outage, skip the hassle of running multiple extension cords from your generator to your appliances. Instead, connect your portable generator to a permanently install led Generic manual transfer switch. By installing a transfer switch at the electrical panel, a homeowner can safely run selected appliances such as a furnace, well pump, sump pump, refrigerator, television or lighting during a power outage.

  • Deliver generator power safely to 10 to 16 selected circuits during a power outage with this select circuits manual transfer switch
  • Installs like a subpanel next to existing load center outdoors
  • Expandable and reconfigurable to 16 circuits using standard interchangeable type circuit breakers
  • Accommodates arc fault and GFCI breakers to meet the latest NEC requirements
  • Includes all wires, flexible non-metallic conduit, fittings and wire nuts for installation
  • UL listed in US and Canada
  • 60-Amp 2-pole main breaker is required in existing load center not included

Specifications

Dimensions

Details

Warranty / Certifications

More Products With These Features

Search

Customer Questions & Answers

where is the connection from the generator

This picture is clearly for an indoor model when you zoom it can be read on the label so what does the outdoor model look like? I cannot see where the plug connects from the generator to the switch is it just me or is it missing?
Asked by: alangski
Generac’s model number 6379 has a NEMA3 rated enclosure. This enclosure allows for both indoor and outdoor use. For a complete installation, a power inlet box should be installed on the exterior of the home. The power inlet box will accept the other end of the cord that is connected to the generator’s control panel, and the power inlet box will be hard wired to the manual transfer switch. For installation purposes, an electrician will wire priority circuits into the manual switch. When the power goes out, the homeowner plugs the cord into the generator and into the power inlet box, starts the generator, and then manually transfers the switch from utility to generator power.
Answered by: Generac
Date published: 2015-09-17

What is the earliest you will have these in stock?

Asked by: Anonymous
Due to demand created by the recent storms, certain products may be on backorder. We recommend contacting your local store directly for estimated timeframe on availability, as each store’s stock and orders will vary.
Answered by: Generac
Date published: 2015-09-17
