Model # GTi20

Internet #203444105

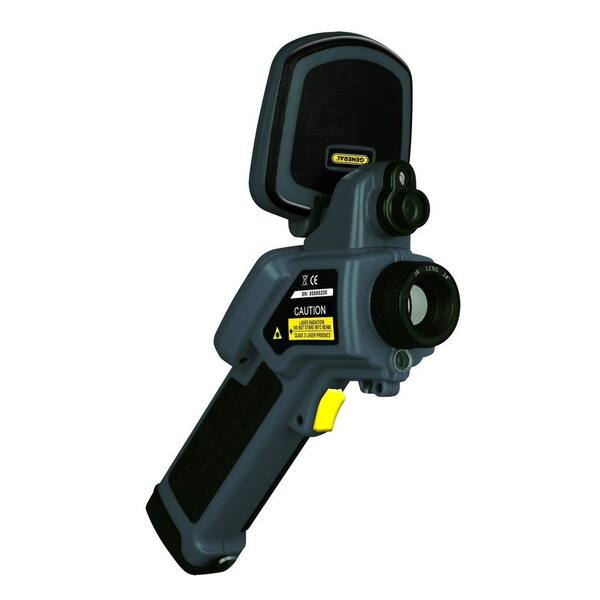

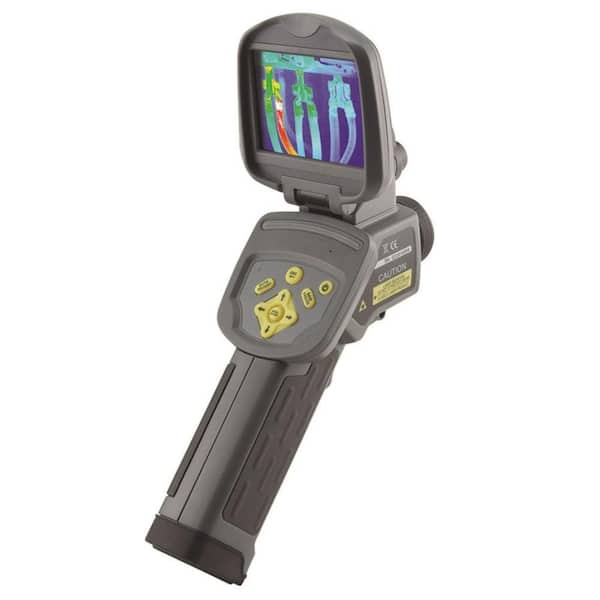

General Tools Predator Series Thermal/Infrared Visual Imaging Camera with Laser Pointer, Picture-in-Picture and LED Flashlight
0681035015865

Discontinued General Tools

Predator Series Thermal/Infrared Visual Imaging Camera with Laser Pointer, Picture-in-Picture and LED Flashlight

store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

The GTi20 Predator Series Thermal Imaging Camera Visual Imaging with Picture-in-picture is ideal for revealing hidden heat-driven processes and problems. Applications include: building energy audits; equipment maintenance, repair and operations (MRO); process/manufacturing plant maintenance; water damage restoration; firefighting; navigation; surveillance. By converting objects infrared (IR) radiation to visible color images, thermal imaging cameras make it possible to detect very small temperature differences from a distance. Heat signatures can help diagnose the cause of equipment failures and poor performance due to wear and tear, misalignments and fault conditions. The GTi20 features, PIP Mode, Thermal Imaging Camera features a large, bright color LCD, 4 Moveable spots for isothermal analysis, LED Flashlight, temperature alarm, point-and-shoot simplicity and a 3 Year Limited warranty. PIP mode displays normal-color video with a fused, or overlaid, smaller thermal-color video window. This allows simultaneous view of normal and thermal imaging on the screen. In addition the window is configurable for its position within the screen. The transparency factor of the thermal window is also configurable. This screen mode can be captured in images and video. It is most useful when trying to give perspective, or context, to the scene view when describing the image and gives the operator the control of which scene portions to temperature-map; without having to map the entire image.
  • 160 x 120 (19,200) pixel focal plane array IR detector
  • Temperature sensitivity of ±0.14°F (0.08°C) or better
  • 4 in. (100 mm) minimum focal distance allows close-up work
  • Included 2GB MiniSD card stores images for later uploading to PC
  • USB 2.0 and video out jacks
  • Bright 3.5 in. diagonal flip-up color LCD
  • Manually or automatically adjustable image level and span (brightness and contrast)
  • Variable emissivity
  • Tripod mount (via optional adaptor)
  • Water, dust and oil-resistant to IP54 standard
  • Shock and vibration-resistant
  • Powered by rechargeable lithium-ion battery
  • LED flashlight
  • Temperature alarms
  • Laser pointer
  • Includes reporting & analysis software, USB & video cables, hard case
  • 3 year limited warranty

Product Overview

Model #: GTi20
Internet #: 203444105

The GTi20 Predator Series Thermal Imaging Camera Visual Imaging with Picture-in-picture is ideal for revealing hidden heat-driven processes and problems. Applications include: building energy audits; equipment maintenance, repair and operations (MRO); process/manufacturing plant maintenance; water damage restoration; firefighting; navigation; surveillance. By converting objects infrared (IR) radiation to visible color images, thermal imaging cameras make it possible to detect very small temperature differences from a distance. Heat signatures can help diagnose the cause of equipment failures and poor performance due to wear and tear, misalignments and fault conditions. The GTi20 features, PIP Mode, Thermal Imaging Camera features a large, bright color LCD, 4 Moveable spots for isothermal analysis, LED Flashlight, temperature alarm, point-and-shoot simplicity and a 3 Year Limited warranty. PIP mode displays normal-color video with a fused, or overlaid, smaller thermal-color video window. This allows simultaneous view of normal and thermal imaging on the screen. In addition the window is configurable for its position within the screen. The transparency factor of the thermal window is also configurable. This screen mode can be captured in images and video. It is most useful when trying to give perspective, or context, to the scene view when describing the image and gives the operator the control of which scene portions to temperature-map; without having to map the entire image.

California residents: see   Proposition 65 information

  • 160 x 120 (19,200) pixel focal plane array IR detector
  • Temperature sensitivity of ±0.14°F (0.08°C) or better
  • 4 in. (100 mm) minimum focal distance allows close-up work
  • Included 2GB MiniSD card stores images for later uploading to PC
  • USB 2.0 and video out jacks
  • Bright 3.5 in. diagonal flip-up color LCD
  • Manually or automatically adjustable image level and span (brightness and contrast)
  • Variable emissivity
  • Tripod mount (via optional adaptor)
  • Water, dust and oil-resistant to IP54 standard
  • Shock and vibration-resistant
  • Powered by rechargeable lithium-ion battery
  • LED flashlight
  • Temperature alarms
  • Laser pointer
  • Includes reporting & analysis software, USB & video cables, hard case
  • 3 year limited warranty

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Price
$1,724.00 /each
$2,157.10 /each
$2,199.00 /each
$2,699.00 /each
Name Wireless Video Inspection Camera with 3.5 in. LCD Display and Waterproof High-Performance Articulating Probe Predator Series Thermal/Infrared Visual Imaging Camera with Laser Pointer, Picture-in-Picture and LED Flashlight 6 mm Wireless Articulating Videoscope Camera Head VideoScope Wireless General Purpose Kit
Brand General Tools General Tools Extech Instruments FLIR
Ratings (0) (0) (0) (0)
Power Tool Features Case Included,LCD Display,Waterproof Camera Head Waterproof Camera Head No Additional Features
Cable length (ft.) 3.28 0 6.6 3.28
View Product View Product View Product View Product

Specifications

Dimensions

Cable length (ft.)
0
Camera head diameter (in.)
0
Display size (in.)
2.4
Product Depth (in.)
1.5
Product Height (in.)
12.25
Product Width (in.)
4.25

Details

Color Family
Black
LCD display
Yes
Product Weight (lb.)
0.31lb
Returnable
90-Day
Tools Product Type
Power Tool
Waterproof camera head
No

Warranty / Certifications

Manufacturer Warranty
3 Year

Specifications

Dimensions

Cable length (ft.)
0
Camera head diameter (in.)
0
Display size (in.)
2.4
Product Depth (in.)
1.5
Product Height (in.)
12.25
Product Width (in.)
4.25

Details

Color Family
Black
LCD display
Yes
Product Weight (lb.)
0.31lb
Returnable
90-Day
Tools Product Type
Power Tool
Waterproof camera head
No

Warranty / Certifications

Manufacturer Warranty
3 Year
