Model # H995RICAT

Internet #203310666

Store SKU #327574

Halo H995 4 in. Aluminum LED Recessed Lighting Housing for Remodel Ceiling, T24, Insulation Contact, Air-Tite
0080083616947

Halo

H995 4 in. Aluminum LED Recessed Lighting Housing for Remodel Ceiling, T24, Insulation Contact, Air-Tite

  • An ideal recessed light can for those seeking Title 24 compliance
  • Designed for Halo RL4, RA4 and SLD 4 integrated LED trim modules
  • Remodel shallow recessed can, fits easier in limited spaces
$2300 /each

Choose Your Options

1.0
  • 1.0
  • 6
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

  • An ideal recessed light can for those seeking Title 24 compliance
  • Designed for Halo RL4, RA4 and SLD 4 integrated LED trim modules
  • Remodel shallow recessed can, fits easier in limited spaces
The Halo H995RICAT is a dedicated LED remodel small aperture IC Air-Tite housing for use with Halo RL4 Series LED modules. It is designed for installation into existing insulated ceilings where it will be in direct contact with insulation. It is an Air-Tite housing designed to prevent air flow between occupied spaces and unconditioned areas. The LED connection is non-screw base to preserve the high efficacy rating of the luminaire as used with the RL4 LED module.
  • Air-tite construction saves energy
  • Quick connect wire hookups
  • Adjustable hanger bars
  • 4 in. aperture, for remodel or new construction applications
  • IC rated

Product Overview

  • An ideal recessed light can for those seeking Title 24 compliance
  • Designed for Halo RL4, RA4 and SLD 4 integrated LED trim modules
  • Remodel shallow recessed can, fits easier in limited spaces
Model #: H995RICAT
Sku #: 327574
Internet #: 203310666

The Halo H995RICAT is a dedicated LED remodel small aperture IC Air-Tite housing for use with Halo RL4 Series LED modules. It is designed for installation into existing insulated ceilings where it will be in direct contact with insulation. It is an Air-Tite housing designed to prevent air flow between occupied spaces and unconditioned areas. The LED connection is non-screw base to preserve the high efficacy rating of the luminaire as used with the RL4 LED module.

  • Air-tite construction saves energy
  • Quick connect wire hookups
  • Adjustable hanger bars
  • 4 in. aperture, for remodel or new construction applications
  • IC rated

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

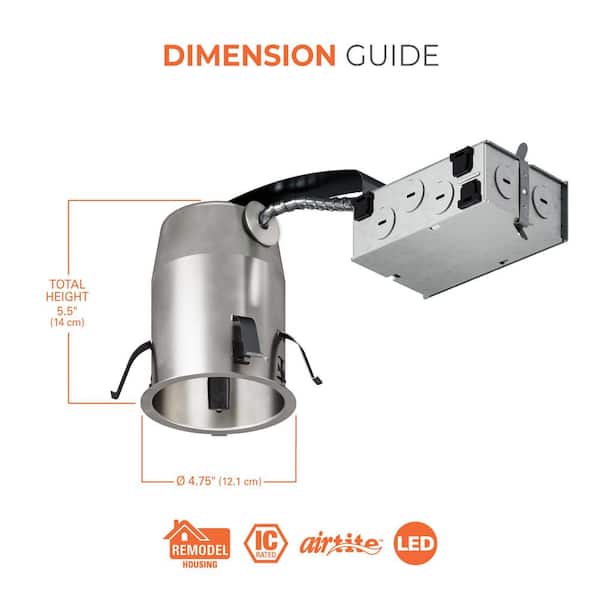

Dimensions

Aperture width (in.)
4.0
Housing depth (in.)
5.5
Product Depth (in.)
12
Product Height (in.)
7
Product Width (in.)
5
Size
4 in.

Details

Airtight
Yes
Insulation contact
Insulation contact
Light Bulb Base Code
Other
Light Bulb Type Included
No Bulbs Included
New Construction or Remodel
Remodel
Number of Housings Included
1.0
Package Quantity
1
Product Weight (lb.)
2lb
Reflector finish family
Aluminum
Returnable
90-Day

Warranty / Certifications

Certifications and Listings
1-UL Listed,CSA Listed,IC Rated
Manufacturer Warranty
1 year

Specifications

Dimensions

Aperture width (in.)
4.0
Housing depth (in.)
5.5
Product Depth (in.)
12
Product Height (in.)
7
Product Width (in.)
5
Size
4 in.

Details

Airtight
Yes
Insulation contact
Insulation contact
Light Bulb Base Code
Other
Light Bulb Type Included
No Bulbs Included
New Construction or Remodel
Remodel
Number of Housings Included
1.0
Package Quantity
1
Product Weight (lb.)
2lb
Reflector finish family
Aluminum
Returnable
90-Day

Warranty / Certifications

Certifications and Listings
1-UL Listed,CSA Listed,IC Rated
Manufacturer Warranty
1 year

Questions & Answers

Is this housing IC rated or insulated rated

Asked by: Jim
The Halo H995RICAT remodel housing is IC (insulation contact) rated for direct contact with insulation and it is AT (Air-Tite) rated to meet restricted airflow building code requirements.
Answered by: Cooper Lighting
Date published: 2017-10-16

What thickness ceiling do these work with?

We have an older house with wood slats above the drywall, adding additional thickness. Will these cans work with a thicker ceiling?
Asked by: OldCeiling
I have a 3/4" wood T&G with 3/4" drywall above that. While the manufacturer may frown at this, I cut about 3/4" off the ends of the retaining clips with an angle grinder -- then they fit perfectly and locked into place.
Answered by: marko82
Date published: 2017-01-01

Is this housing Ic rated where I can put it in my ceiling with insulation?

Are these ic rated where I can put them in my ceiling with insulation?
Asked by: Ramsee
Yes, IC rated is insulation contact rated
Answered by: Paz
Date published: 2017-09-29

are these dimmable with appropriate led dimmer switches?

are these dimmable with appropriate led dimmer switches?
Asked by: Lori
This is just a housing, which doesn't include a bulb or baffle. You need to purchase a Halo compatible LED light. The light you purchase for the housing will determine if the fixture will dim. So the fixture will allow dimming if the bulb you install is dimmable.
Answered by: JDallace
Date published: 2017-05-16
  • y_2017, m_10, d_20, h_5CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.3
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_23
  • loc_, sid_203310666, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 98ms
  • QUESTIONS, PRODUCT

Customer Reviews

H995 4 in. Aluminum LED Recessed Lighting Housing for Remodel Ceiling, T24, Insulation Contact, Air-Tite is rated 3.4 out of 5 by 39.
Rated 3 out of 5 by from The clips are difficult to deal with. They do not engage always, but you don't have a choice when... The clips are difficult to deal with. They do not engage always, but you don't have a choice when it comes to remodel cans. A pair of button head sheet metal screws (on both sides of each clip) will lock them in. Screw the screws directly to he inside of the can from below. The can itself is good and the wiring access is good. Just wish someone would come up with a better system for mechanically anchoring these to sheetrock.
Date published: 2017-06-27
Rated 4 out of 5 by from These Halo cans are a good value for an 4" IC housing. I've installed about 18 of these around th... These Halo cans are a good value for an 4" IC housing. I've installed about 18 of these around the house over the last year. Installation was relatively easy, all are working without problems. I created my own adapter/connection/pigtail so I can but any type of lamp base in the fixture. I can use gu10, a19, etc. but I use exclusively LED bulbs. Incandescents or halogens would probably compromise the IC rating.
Date published: 2017-05-16
Rated 4 out of 5 by from Note--this is about the only remodel can available for purchase that will work in insulated ceili... Note--this is about the only remodel can available for purchase that will work in insulated ceilings. City code inspectors will accept no less, so get these. They carry the IC designation and Air Tight, both required by city codes. And they work very well. Installation is not difficult, though removal is a chore (if you make a mistake). They seem wuite solid. They only work with air tight LED bulb assemblies.
Date published: 2017-10-13
Rated 3 out of 5 by from Three points of contact not enough with strapping or ceiling... Three points of contact not enough with strapping or ceiling joist proximity. Torchstar better with four points
Date published: 2017-08-22
Rated 5 out of 5 by from Just what i was looking for and this customer... Just what i was looking for and this customer was very happy with the result
Date published: 2017-08-29
Rated 1 out of 5 by from Garbage The clips to hold these cans are terrible. Absolutely horrible design. Do not work well on vaulted ceiling.
Date published: 2017-02-18
Rated 4 out of 5 by from Perfectly satisfactory piece. Works with a number of 4"" trims, but I recommend getting one of ea... Perfectly satisfactory piece. Works with a number of 4" trims, but I recommend getting one of each to test before committing to a bunch. I like the built-in NM cable retainers and the easy to use connectors. Primary issues were 1) sealing tape was not applied very accurately (but was relatively easy to reposition) and 2) they were jammed in the box carelessly, so there were a couple dents. However, it's aluminum, so it's easy to coax back into shape, and they were easy to modify for thick ceilings (shorten the retaining clips) with tight clearances (remove the strap). Seen other people whine about them being 'flimsy' -- if you have to beat on them you're doing it wrong.
Date published: 2016-11-01
Rated 2 out of 5 by from Proprietary LED connector First of all, the picture was wrong for this model (as of this writing).. Anyway, I was looking for a 4" IC remodel housing and this is the only IC-rated I could find. Unfortunately, it comes with the Halo's proprietary LED connector, which locks you into very few light trim and bulb choices. There are only two type of light bulb/integrated trim kits that could fit into this type of housing: one from Halo and one from Commercial Electric. Both of these trim kits are at 3000K and so I was out-of-luck looking for 2700K soft light trim kit :(. The worse part is none of these two fits well with this housing. The lips of the the trims from both kits would not completely cover and hide the housing lip and so you would see a gap between the ceiling and the trim. The Commercial Electric kit is the worse offender. After much time debating of what to do (aside from yanking these housing out and replace them with 5" IC housing, which uses standard Edison base that I previously had good experience with), I found a workable solution: using the EcoSmart 2700K 4" LED downlight (Model # ECO4-575L). The EcoSmart downlight is well built, gives out beautiful 2700K soft light, and its lip fit well with the housing and flushes against the ceiling. Since its uses the standard Edison base, I had to cut off and throw away the LED connector at the housing and replace it with a Edison lamp socket (which you can get for a few bucks from both HD and Lowe's). I am now a happy camper.. but do NOT get this housing, or any other LED housing from Halo that uses proprietary LED connector unless you are absolutely sure you can find a light trim kit that works.
Date published: 2013-01-30
