Model # SK703ORB

Internet #203553519

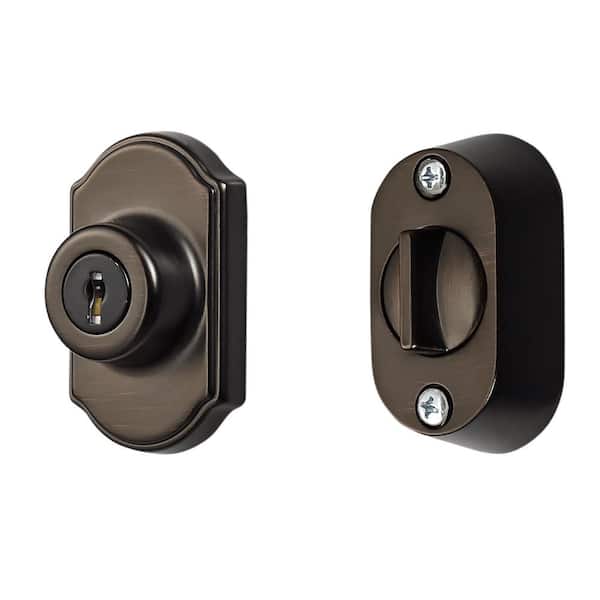

IDEAL Security Keyed Deadbolt in Oil Rubbed Bronze Finish
0056947001716

IDEAL Security

Keyed Deadbolt in Oil Rubbed Bronze Finish

  • Easy-to-install keyed deadbolt for storm and screen doors
  • Add extra security to your home
  • Traditional style from our SKDX series
$1764 /each

Choose Your Options

Oil Rubbed Bronze
  • Black
  • E-Coat Brass
  • Oil Rubbed Bronze
  • Satin Silver
  • White
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

  • Easy-to-install keyed deadbolt for storm and screen doors
  • Add extra security to your home
  • Traditional style from our SKDX series
The SKGLK keyed locking unit for storm and screen doors complements the appearance of the GL lever handle while adding additional security to your home. A keyed deadbolt allows you keep your main door open and enjoy the light that comes in through a storm door, and still feel secure. The SKGLK is not a high security lock, but a secondary level of security. The key feature allows you to lock your storm door as you leave the home, and if someone is home and locks the doors, you can unlock it. Three additional holes are required to be drilled through the door for the screws and spindle. Installation is easy and will take about 20 minutes. A tape measure, drill and screw driver will be required. A center punch to mark the holes is handy, but not required. The set includes screws for doors 1 in. to 2-1/8 in. thick. The spindle can be cut to the length required. The set is manufactured from die cast zinc and painted or coated to match the color of the handles. If you have a lever style handle, please check out our SKGLK series of keyed deadbolts. IDEAL Security has been supplying quality storm and screen door hardware to door manufacturers for over 50 years.
  • Install above or below the handle
  • Check that installed inside lock does not interfere with main door operation

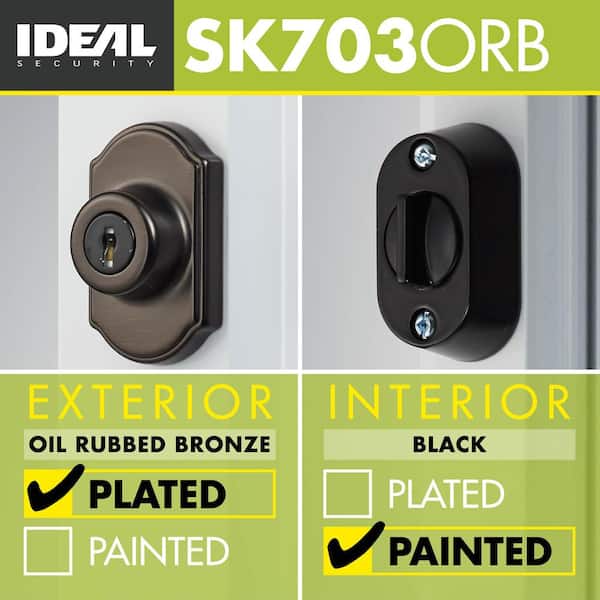

  • Key lock outside and turn knob dead bolt inside
  • Coordinate and add security to the SKDX series of pull handles
  • Screws and spindle included for doors from 1 in. to 2-1/8 in. thick
  • One year warranty on function and finish
  • Available in several colors and finishes to match other accessories

Product Overview

The SKGLK keyed locking unit for storm and screen doors complements the appearance of the GL lever handle while adding additional security to your home. A keyed deadbolt allows you keep your main door open and enjoy the light that comes in through a storm door, and still feel secure. The SKGLK is not a high security lock, but a secondary level of security. The key feature allows you to lock your storm door as you leave the home, and if someone is home and locks the doors, you can unlock it. Three additional holes are required to be drilled through the door for the screws and spindle. Installation is easy and will take about 20 minutes. A tape measure, drill and screw driver will be required. A center punch to mark the holes is handy, but not required. The set includes screws for doors 1 in. to 2-1/8 in. thick. The spindle can be cut to the length required. The set is manufactured from die cast zinc and painted or coated to match the color of the handles. If you have a lever style handle, please check out our SKGLK series of keyed deadbolts. IDEAL Security has been supplying quality storm and screen door hardware to door manufacturers for over 50 years.

  • Install above or below the handle
  • Check that installed inside lock does not interfere with main door operation
  • Key lock outside and turn knob dead bolt inside
  • Coordinate and add security to the SKDX series of pull handles
  • Screws and spindle included for doors from 1 in. to 2-1/8 in. thick
  • One year warranty on function and finish
  • Available in several colors and finishes to match other accessories

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.

Specifications

Dimensions

Assembled Depth (in.)
2.3 in
Assembled Height (in.)
2.5 in
Assembled Width (in.)
1.5 in
Grip height (in.)
.25
Grip width (in.)
.125
Required door thickness (in.)
1 3/8 to 2

Details

Builders Hardware Product Type
Storm Door Hardware
Color
Oil Rubbed Bronze
Color Family
Browns / Tans
Handle Included
No
Handle Material
Zinc
Keyed
Yes
Package Quantity
1
Required door
N/A
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
Limited one year warranty: All of Ideal Security products are warranted to be free of labour and material defects for one year from date of purchase. Defective products can be returned to place of purchase with proof of purchase for replacement. Customer service: 1-800-361-2236 x 230 or visit our web site at www.idealinc.com

Specifications

Dimensions

Assembled Depth (in.)
2.3 in
Assembled Height (in.)
2.5 in
Assembled Width (in.)
1.5 in
Grip height (in.)
.25
Grip width (in.)
.125
Required door thickness (in.)
1 3/8 to 2

Details

Builders Hardware Product Type
Storm Door Hardware
Color
Oil Rubbed Bronze
Color Family
Browns / Tans
Handle Included
No
Handle Material
Zinc
Keyed
Yes
Package Quantity
1
Required door
N/A
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
Limited one year warranty: All of Ideal Security products are warranted to be free of labour and material defects for one year from date of purchase. Defective products can be returned to place of purchase with proof of purchase for replacement. Customer service: 1-800-361-2236 x 230 or visit our web site at www.idealinc.com

More Products With These Features

Search

Questions & Answers

How do I order replacement keys?

Asked by: JIMROSENDAHL
there is a number and letters for what keys is used or a locksmith
Answered by: happycamper
Date published: 2016-07-27

What is the center to center distance, in inches, for the top and bottom mounting bolt holes? I plan to replace the existing, worn out locks.

The old/existing keyed, dead bolt locks look exactly like the picture in your web. I want to remove the old and replace with new. Thank you very much. WB
Asked by: WBTX
1' 3/4" from center to center for the top and bottom holes . The kit has a template in the package to mount the lock .
Answered by: theonewhoknoestomuch
Date published: 2015-09-20

Behind the lock, the number is 7041

Is this the same lock for my storm door. Behind the lock is number 7041
Asked by: pianogaga
I'm not familiar with your #7041 keylock. But here are the specification of the SK703: it has mounting hole distance (center to center) of 1.75", all three holes on the door shall be at least 5/16", the backset is about 7/8" to 1".
Answered by: IdealSecurity
Date published: 2016-01-05

What is the backset?

Asked by: brownstoned
The backset for the SK703 is 7/8". Print the installation instruction from our website using scale 1:1, the mounting holes is 1.75" apart, backset is 7/8".
Answered by: IdealSecurity
Date published: 2015-09-29
  • y_2017, m_9, d_18, h_23CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.3
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_5
  • loc_, sid_203553519, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 222ms
  • QUESTIONS, PRODUCT

Customer Reviews

Keyed Deadbolt in Oil Rubbed Bronze Finish is rated 4.6 out of 5 by 17.
Rated 5 out of 5 by from This product met all my expectations, relative easy to install. The delivery to my local store wa... This product met all my expectations, relative easy to install. The delivery to my local store was well in the time promised. Ideal Security ( the manufacturer) went above and beyond to supply me at no cost with a replacement part, which I admittedly cut incorrectly. I would certainly buy these locks again if the need arises.
Date published: 2017-05-30
Rated 4 out of 5 by from I replaced an existing set that did not have keys and this was easy to replace in existing holes ... I replaced an existing set that did not have keys and this was easy to replace in existing holes and works fine.
Date published: 2017-05-31
Rated 5 out of 5 by from Dead bolt Well made and Sturdy. The lock was easy to install.
Date published: 2017-06-14
Rated 4 out of 5 by from As expected & good quality. As expected & good quality.
Date published: 2017-03-28
Rated 5 out of 5 by from KEYED DEADBOLT REVIEW Very well made and ideally compact and secure for screen door. I have limited carpentry skills which required me to study and thoroughly understand the installation process which took a total of about 2-3 hours.. The template helped very much. The end product was a masterpiece as you can see from the photos!
Date published: 2015-05-05
Rated 4 out of 5 by from Does what it is supposed to do This product replaced my storm door top lock (brass finish). It is nice that it comes with several sets of screws of different lengths for doors of different widths. Prepare to spend about 10 minutes for each time you have to cut the shaft (I used a vice and hacksaw) that turns via the key to open the lock mechanism, so that it is the right length to match the door width. I had to do it twice, as I did not want to cut too much the first time. This seemed to be the only product out there that fit my need and had the right look.
Date published: 2014-10-09
Rated 4 out of 5 by from Did the job. East to install. Quality. Added security to our family's home.
Date published: 2016-10-18
Rated 5 out of 5 by from Good Buy Easy Install Was easy to install and took very little time to put it in . Had to in-large the holes a little but this was not a problem because I used a conic drill bit ( used in sheet metal work ) . Now I can lock the screen door when I leave home and makes it a little harder for thieves to get at the front door .
Date published: 2015-08-25
