0853009001802

IQ America

Model # WD-1140A

Internet # 202278746

Store SKU # 158945

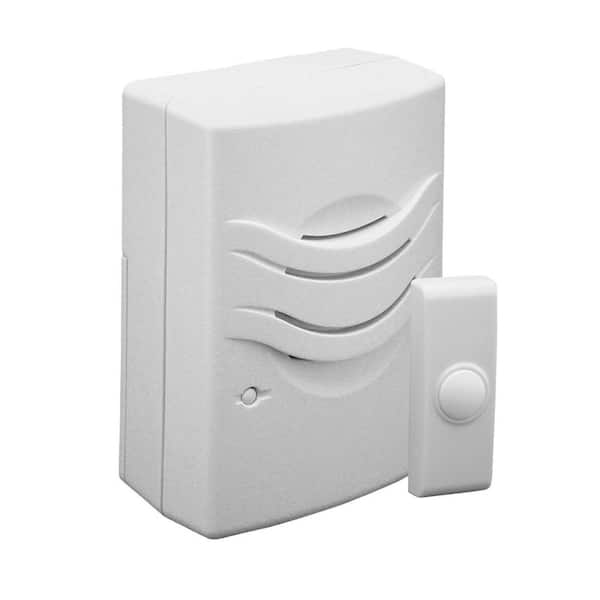

Wireless Plug-In 2-Tone Basic Door Chime

FREQUENTLY BOUGHT TOGETHER

PRODUCT OVERVIEW

Model # WD-1140A

Internet # 202278746

Store SKU # 158945

This Wireless Plug-In Door Chime alerts you to a visitor at your door with a chime box conveniently positioned anywhere you have an electrical outlet. The included push button is easily installed.

  • Plays 2 chime melodies
  • Up to 100 ft. transmission range
  • Chime box plugs into an electrical outlet and push button uses 1 CR 2032 lithium battery (included)
  • Traditional style finished in white
  • Second IQ America wireless push button may be programmed to chime box (not included)

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.

SPECIFICATIONS

Dimensions
Product Depth (in.)
Product Height (in.)
4.25
Product Width (in.)
3.25
Details
Adjustable Volume
No
Batteries Included
Yes
Battery Power Type
Lithium Coin
Battery Size
CR2032
Bell Button Color Family
White
Bell Wire Required
Wireless
Buzzer Only
No
Digital Bell
Yes
Door Bell Or Intercom Type
Door Bells
Door Chime Kit Type
Wireless
Electrical Product Type
Door Chime Kit
Mechanical Bell
No
Multiple Songs
No
Number of Batteries Required
0.0
Number of Buttons Included
1.0
Number of Sounds
2.0
Plug-In
Yes
Returnable
90-Day
Style
Traditional
Transformer
Not Included
Westminster Bell
No
Zone-specific Sounds
No
Warranty / Certifications
Certifications and Listings
1-UL Listed
Manufacturer Warranty
2 Year

MORE PRODUCTS WITH THESE FEATURES

Door Chime Kit Type: Wireless
Mechanical Bell: No
Digital Bell: Yes
Multiple Songs: No
Westminster Bell: No
Brand: IQ America
Review Rating: 2 & Up
Search
3 Questions1 Answer

Customer Questions & Answers

Wireless Plug-In 2-Tone Basic Door Chime
Wireless Plug-In 2-Tone Basic Door Chime

Ask your questions. Share your answers.



Clear Search Term


Sort By:

1 answer

Battery

This question is from Wireless Plug-In 2-Tone Basic Door Chime
Asked by
Coeur d'Alene Idaho
Read all my Q&A
August 9, 2015
Our bell just suddenly quit working? It says it has a lithium battery. How and where do you open the door chime?
If I have to buy another door chime, will my old door buzzer work. I am not mechanical enough to figure out a new door buzzer

Thank you
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answer (1)

Asked by
Read all my Q&A
August 19, 2015
Answer:
We have had one of these for about a year and the battery on yours probably needs to be changed. You will need to use a letter opener or flat head screwdriver to pop the back off of the door button. You will see a small slit on one of the two narrow sides of the door button to insert the letter opener into and pry it away from where it has been mounted. You will need a CR2032 3 volt battery for the Read More
We have had one of these for about a year and the battery on yours probably needs to be changed. You will need to use a letter opener or flat head screwdriver to pop the back off of the door button. You will see a small slit on one of the two narrow sides of the door button to insert the letter opener into and pry it away from where it has been mounted. You will need a CR2032 3 volt battery for the replacement which can be found at most stores. (It looks like a wide flat button and will be with the watch batteries.) You will be able to pop the existing battery up on the side closest to the middle and slide it out. Make sure you are sliding the new battery in with the number etching showing on top, this will put the positive end up and the negative end down to make the right connections. Here is a link to the User Manual:
https://www.manualshelf.com/manual/iq-america/wd-1140a/instructions-assembly.html
I hope this helps! Read Less
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0

0 answers

Add'l chime box with same push button?

This question is from Wireless Plug-In 2-Tone Basic Door Chime
Asked by
Read all my Q&A
March 11, 2016
I purchased one unit so it would ring in the basement, figuring I would hear people at the front door. However, I need a second chime box to ring on the first floor I decided.
If I purchase a second chime box, can it be programmed to work off the same single push button of the first purchase? The instructions do not address this situation.
Thanks.
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

0 answers

HOW DO I CHANGE THE CHIME TO ANOTHER SOUND?

This question is from Wireless Plug-In 2-Tone Basic Door Chime
Asked by
Read all my Q&A
September 25, 2015
I am stuck with the first sound, how do I configure it to get the other one?
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0
1 of 1
  • 2016-05-24 T16:53:30.191-05:00
  • bvseo_lps, prod_bvqa, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasquestionsanswers
  • loc_en_US, sid_202278746, prod, sort_default
1 of 1
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 59ms
  • QUESTIONS, PRODUCT

CUSTOMER REVIEWS

Rated 2.7 out of 5 by 37 reviewers.
Rated 3.0 out of 5.0 by Ok for the price Wanted to test out for my home. So far doing its job December 29, 2015
Rated 1.0 out of 5.0 by Wireless Plug-in door bell Poor quality and is not audible more that 25 feet away. It was cheap to buy but expected a louder bell. December 8, 2015
Rated 4.0 out of 5.0 by easy and no fuss. easy to install, no surprises and works just has I needed. the bell is adequate, but could be louder. December 8, 2015
Rated 5.0 out of 5.0 by Worked for Me Actually this was a replacement for the same one I had for many years. It had stopped working and I was searching for another door chime. When I saw that this one was still available I purchased it. It works well like before, easy to install and the price was right for me. Love it!! September 22, 2015
Rated 2.0 out of 5.0 by Not impressed. The screws cannot penetrate hard plastic using only a screwdriver. Had to get out my electric drill to makes holes for screws to install. Tones are very faint, difficult to hear if in another room. It was pretty cheap so that's what I got. September 22, 2015
Rated 2.0 out of 5.0 by Work, sound can't be hear from next room This kit work as advertised, however the sound is so tiny that I can't barely hear it sitting 20ft away. Back to HomeDepot it goes. August 21, 2015
Rated 5.0 out of 5.0 by Ding dong The wireless doorbell works exactly like shown. Easy install also. July 21, 2015
Rated 3.0 out of 5.0 by OK for the price I would like it better if the sound if the bell was louder. June 16, 2015
