Model # 30-1034P

Internet #202894312

Store SKU #631352

Ideal 34 Yellow In-Sure 4-Port Connector (100-Pack)
0783250739844

Ideal

34 Yellow In-Sure 4-Port Connector (100-Pack)

  • For use with solid or stranded wire combinations
  • Ergonomic design for easy grip and comfortable installation
  • Low insertion force for fast and easy connections
$748 /package
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

  • For use with solid or stranded wire combinations
  • Ergonomic design for easy grip and comfortable installation
  • Low insertion force for fast and easy connections

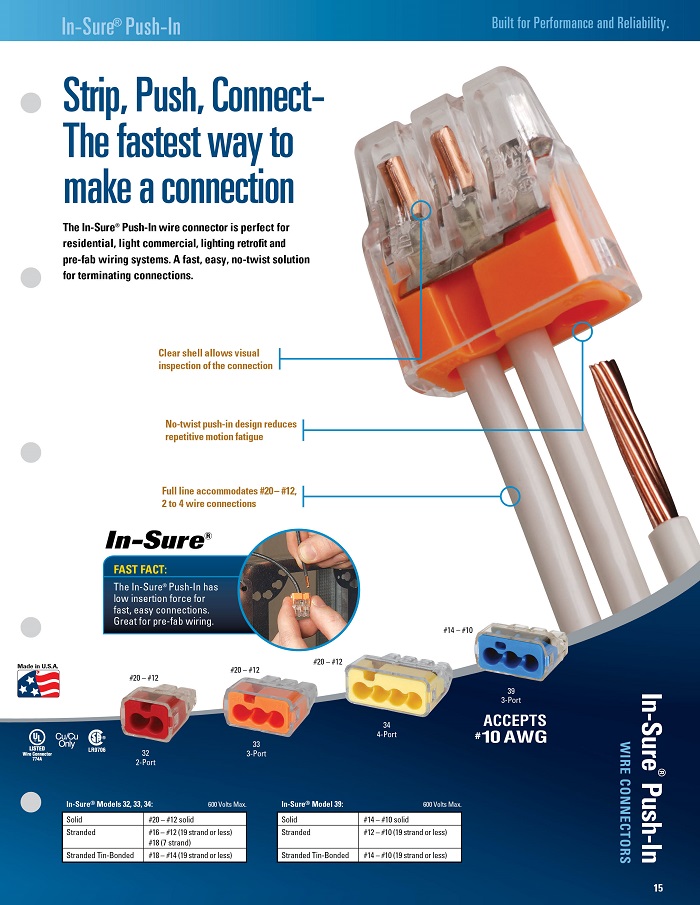

The In-Sure Push-In wire connector is perfect for residential, light commercial, lighting retrofit and pre-fab wiring systems. A low insertion force makes them the fastest, easiest, no-twist push-in connector on the market. It's compact size make installation easy and its clear shell gives a visual inspection of the connection.
  • Push-in wire connector to join and insulate 4 wires
  • Use on bare copper wire
  • Low insertion force for a fast and easy connection
  • Compact size for easy installation
  • Clear shell gives visual verification of your connection
  • No-twist connection helps reduce repetitive motion fatigue
  • Solid wire range: #20 - #12 AWG
  • Stranded wire range: #16 - #12 AWG (≤ 19 strand) and #18 AWG (≤ 7 strand)
  • Tin bonded stranded wire range: #18 - #14 AWG (≤ 19 strand)
  • UL 94V-2 flame-retardant shell rated at 221°F
  • UL listed to 486C CSA certified to C22.2 #188
  • UL 467 listed for grounding and bonding applications
  • Click Here to Learn More on How to Shop Cable and Wire Connectors

Product Overview

The In-Sure Push-In wire connector is perfect for residential, light commercial, lighting retrofit and pre-fab wiring systems. A low insertion force makes them the fastest, easiest, no-twist push-in connector on the market. It's compact size make installation easy and its clear shell gives a visual inspection of the connection.

  • Push-in wire connector to join and insulate 4 wires
  • Use on bare copper wire
  • Low insertion force for a fast and easy connection
  • Compact size for easy installation
  • Clear shell gives visual verification of your connection
  • No-twist connection helps reduce repetitive motion fatigue
  • Solid wire range: #20 - #12 AWG
  • Stranded wire range: #16 - #12 AWG (≤ 19 strand) and #18 AWG (≤ 7 strand)
  • Tin bonded stranded wire range: #18 - #14 AWG (≤ 19 strand)
  • UL 94V-2 flame-retardant shell rated at 221°F
  • UL listed to 486C CSA certified to C22.2 #188
  • UL 467 listed for grounding and bonding applications
  • Click Here to Learn More on How to Shop Cable and Wire Connectors

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.

Compare Similar

Price
$6.98 /package
$7.67 /package
$8.67 /package
$13.14 /package
Name 33 Orange In-Sure 3-Port Connectors (100-Pack) 34 Yellow In-Sure 4-Port Connector (100-Pack) 74B Yellow WIRE-NUT Wire Connectors (100-Pack) In-Sure Push-In Wire Connector 4-Port Yellow (10 per Bag, Standard Package is 6 Bags)
Brand Ideal Ideal Ideal Ideal
Ratings (7) (20) (0) (0)
Package Quantity 100 100 100 60
View Product View Product View Product View Product

Specifications

Dimensions

Connector Depth (in.)
.38
Connector Height (in.)
.77
Connector Width (in.)
.82

Details

Color Family
Yellow
Electrical Product Type
Wire Connector
Maximum Wire Capacity
Max. 4 #12
Minimum Wire Capacity
Min. 2 #20
Package Quantity
100

Warranty / Certifications

Certifications and Listings
1-UL Listed,CSA Listed
Manufacturer Warranty
See www.idealind.com or call Customer Assistance for warranty details.

Specifications

Dimensions

Connector Depth (in.)
.38
Connector Height (in.)
.77
Connector Width (in.)
.82

Details

Color Family
Yellow
Electrical Product Type
Wire Connector
Maximum Wire Capacity
Max. 4 #12
Minimum Wire Capacity
Min. 2 #20
Package Quantity
100

Warranty / Certifications

Certifications and Listings
1-UL Listed,CSA Listed
Manufacturer Warranty
See www.idealind.com or call Customer Assistance for warranty details.

More Products With These Features

Search

Questions & Answers

Can I jump 2 yogether

Asked by: Bohack
Yes, however they make 5 and 6 terminal versions of these to avoid this.
Answered by: Rootman
Date published: 2017-07-24

Can I use 2 or 3 of the ports and leave the other(s) empty?

I bought this and the 3-port pack but my store was sold out of the 2-port
Asked by: Wendal
Yes
Answered by: gw32
Date published: 2017-04-22

Why does it only support a lower number of smaller wires?

It says 2-20 gauge or 4-12 gauge. What is it about the connector that makes you only able to use 2 for the smaller wire? Or is it just that you should not in general be crimping together 4 small wires due to it overheating?
Asked by: Mike
It's a range, not an either/or. You can have anywhere from 2 20AWG wires (the smallest combination) up to 4 12AWG wires (largest combination). 4 20AWG wires falls within that range and would be acceptable.
Answered by: Victor
Date published: 2017-03-05

So using this i put 1 hot wire in and can put another 3 in to go extra plugs and a light?

Asked by: Mike
They are used just as a wire nut is used, where ever conductors need to be joined together inside an approved electrical junction of switch box. It is often required to create extra pigtails for just what you ask, to switch additional devices or feed receptacles.
Answered by: Rootman
Date published: 2017-09-16
  • y_2017, m_9, d_22, h_24CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.3
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_15
  • loc_, sid_202894312, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 144ms
  • QUESTIONS, PRODUCT

Customer Reviews

34 Yellow In-Sure 4-Port Connector (100-Pack) is rated 4.8 out of 5 by 20.
Rated 5 out of 5 by from Yeah I know its doing electrical work and not just playing with wires. But rewiring my friends ba... Yeah I know its doing electrical work and not just playing with wires. But rewiring my friends basement in the house that he just moved into, we had found these and decided to try them instead of the wire nut route. There is so much room left in the box after the connections are made. With the small footprint of the connectors, everything tucks in neatly and orderly so there is no need to shove and cram wires while you get the screw gun to to put the face plate on quickly so everything don't spill out. I haven't touched a wire nut in years.
Date published: 2017-06-09
Rated 5 out of 5 by from I was installing a new bathroom fan and light unit and fighting for space in the cramped electric... I was installing a new bathroom fan and light unit and fighting for space in the cramped electrical box attached to the unit. There were several other feeds passing through the box, and the original tangle of wiring seemed to be placed with the help of a vise, hammer, blow torch, and blender. A nightmare. I discovered these and my life has changed in marvelous ways. These take up a fraction of the space of standard wire nuts and are easily positioned in the box to avoid conflicts with other connections. Even the most cramped box can now happily accommodate large numbers of wires without a single tangle. The enclosed picture is a bathroom light/fan combo I replaced that was a tangled mess with 3 additional romex wire feeds connecting in the box. These connectors cleared the box perfectly and made a near impossible space completely workable.
Date published: 2017-05-06
Rated 2 out of 5 by from Inferior connectors. Had great difficulty pushing in 12 ga. strand wire. Solid wire in 12 ga. was... Inferior connectors. Had great difficulty pushing in 12 ga. strand wire. Solid wire in 12 ga. was fine. I prefer WAYGO LEVER NUTS, can be found on AMAZON. Lay it in, snap on levered cover over each wire. No forcing the wire in. Easier on the hand, clear- see through, strong connection. Price comparable.
Date published: 2017-09-04
Rated 5 out of 5 by from Easier to use than wire nuts. Solid connection. ... Easier to use than wire nuts. Solid connection.
Date published: 2017-08-29
Rated 5 out of 5 by from I was an electrician years ago, and I was firmly in the wire nut camp and avoided receps and swit... I was an electrician years ago, and I was firmly in the wire nut camp and avoided receps and switches with push connectors as I never considered them as making a solid connection. I've replaced switches and outlets where the previous installer used the devices push connectors and found a few that were burnt and sparking, so I hesitant to use these push on wire connectors. In my own home I had a set of switches switching the bathroom fan and light along with a separate wall mounted light fixture AND a recep. So a 4 gang box that was stuffed to the brim with wires and jumpers. I was trying to add a fan timer to the mix and these are a larger device making the space issue even worse. To add complexity, the original electrician failed to ground ANY of the devices in the plastic box and simply twisted the grounds all together. All the wires were too short as well, making it a real challenge to round up the wires to get them nutted. So using these made it easier to sort out the mess and keep enough room for all the devices and add all the pigtails I needed to ground everything. I was pleasantly surprised to see they were a solid little device and seemed to make a good form connection. The box is still packed full of wires and devices but is a lot easier to work with with these as they are flatter and it's easier to make sure the wire is captive. I got a large back of the 2, 3 and 4 terminal ones to keep around for other repairs. Highly recommended.
Date published: 2017-07-24
Rated 5 out of 5 by from Easy Street Soooo much easier than doing the standard nuts. Bought this and a 2 gang one.
Date published: 2016-12-06
Rated 5 out of 5 by from Bought these for a total revamp of my master bathroom, including two new circuits (one 15-amp and... Bought these for a total revamp of my master bathroom, including two new circuits (one 15-amp and one 20-amp, running 14 gauge wire and 12 gauge wire, respectively). Honestly I was just tired of my wife's hair dryer dimming all the lights in the entire upstairs of the house... but I digress... I'm pretty green as far as electrical work is concerned, so the ease of these little guys was AWESOME. I used probably a full 100 of these to connect all my new outlets, lights, switches, and exhaust fans, with not a single error in any of my connections. While I understand electricians may want to stick to their typical twist wire connectors, I would highly recommend these for any DIYer. After stripping off ~1/2" of the ends of your wires, you just snap the wire into the port and you can plainly see, thanks to the clear plastic tip on the connector, that your wire is seated properly. Occasionally I would have to use a pair of pliers to push the 12 gauge wire into the port, but the effort was minimal and still seems like a significant time savings over traditional connectors. A few times I mistakenly stripped off ~1/8" or 1/4" extra on my wires so there was a little bit of exposed wire outside of the port, so I removed the wire, snipped the extra off the end of it, and re-inserted. To remove, simply twist the wire back and forth while pulling it out of the connector. The manufacturer says this is fine, and you can reuse the connector as long as the wire you're using is equal to or larger than the wire you took out. Hoosah! Overall, I give this product a strong recommendation. Hope my review was helpful!
Date published: 2017-01-08
Rated 5 out of 5 by from Easy to use These connectors are very easy to use. As a professional, I still prefer wire nuts, but use these if space is getting tight in a box, as they are a bit more compact than their respective wire nut counterpart. Recommended for the DIY'er especially, for their simplicity of installation.
Date published: 2014-04-26
