Model # 30-652JR

Internet #202894300

Store SKU #630989

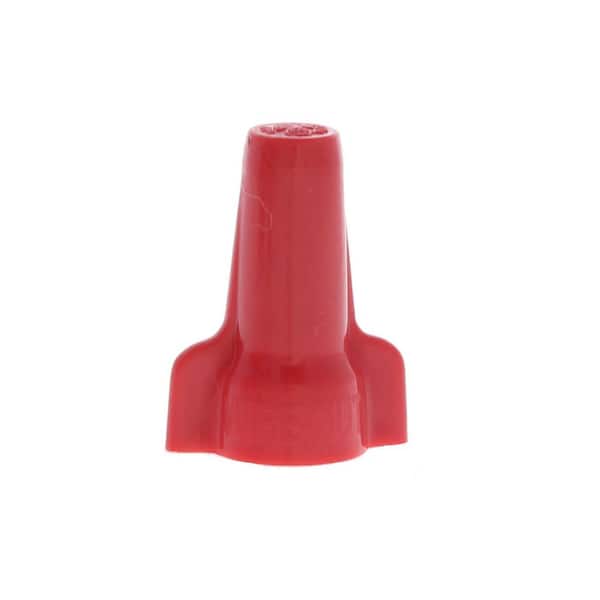

Ideal 452 Red WING-NUT Wire Connectors (500-Jar)
0783250631759

Ideal

452 Red WING-NUT Wire Connectors (500-Jar)

  • Widest range in the industry - from 2 #18 up to 4 #10 maximum
  • Contoured wing for extra leverage on large combinations
  • Wide-range spring expands to support large range of combinations
$3647 /each
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

  • Widest range in the industry - from 2 #18 up to 4 #10 maximum
  • Contoured wing for extra leverage on large combinations
  • Wide-range spring expands to support large range of combinations
The Ideal Wing-Nut Wire Connector provides an easy, secure grip when connecting a wide range of wires. The specially designed contoured wings make for extra torque and quick work on any electrical job. The wide range, live-action spring is flexible enough to handle small combinations with ease but then expands to accept large combinations when you need it. It can also be reused on same size or larger combinations for quick and easy circuit changes and additions.
  • Copolymer shell expands for smooth, progressive tightening providing dependable connections
  • For use with #18 to #8 AWG copper conductors
  • Minimum wire range: 2 #18 AWG, maximum wire range: 4 #10 AWG
  • Rated to 600-Volt max, 1000-Volt signs and fixtures
  • Deep skirt helps protect against flash-over and turned-back strands for maximum dielectric protection
  • Tough UL 94-Volt-2 flame-retardant shell rated at 221˚F
  • UL listed to 486C and CSA certified to C22.2 #188
  • Made in the U.S.A. of U.S. and global components
  • Click Here to Learn More on How to Shop Cable and Wire Connectors

Product Overview

The Ideal Wing-Nut Wire Connector provides an easy, secure grip when connecting a wide range of wires. The specially designed contoured wings make for extra torque and quick work on any electrical job. The wide range, live-action spring is flexible enough to handle small combinations with ease but then expands to accept large combinations when you need it. It can also be reused on same size or larger combinations for quick and easy circuit changes and additions.

  • Copolymer shell expands for smooth, progressive tightening providing dependable connections
  • For use with #18 to #8 AWG copper conductors
  • Minimum wire range: 2 #18 AWG, maximum wire range: 4 #10 AWG
  • Rated to 600-Volt max, 1000-Volt signs and fixtures
  • Deep skirt helps protect against flash-over and turned-back strands for maximum dielectric protection
  • Tough UL 94-Volt-2 flame-retardant shell rated at 221˚F
  • UL listed to 486C and CSA certified to C22.2 #188
  • Made in the U.S.A. of U.S. and global components
  • Click Here to Learn More on How to Shop Cable and Wire Connectors

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.

Compare Similar

Price
$23.00 /each
$36.47 /each
$41.97 /each
$49.96 /each
Name 452 Red WING-NUT Wire Connectors (250 per Jar) 452 Red WING-NUT Wire Connectors (500-Jar) Twister Wire Connectors, 341 - Tan (500-Jar) Standard and Winged Wire Connector Assortment Kit with Case
Brand Ideal Ideal Ideal Buchanan
Ratings (5) (1) (11) (0)
Package Quantity 250 500 500 590
View Product View Product View Product View Product

Specifications

Dimensions

Connector Depth (in.)
.60
Connector Height (in.)
1.21
Connector Width (in.)
.92

Details

Color Family
Red
Electrical Product Type
Wire Connector
Maximum Wire Capacity
Max. 4 #10 AWG
Minimum Wire Capacity
Min. 2 #18 AWG
Package Quantity
500
Returnable
90-Day

Warranty / Certifications

Certifications and Listings
1-UL Listed,CSA Listed
Manufacturer Warranty
See www.idealind.com or call Customer Assistance for warranty details.

Specifications

Dimensions

Connector Depth (in.)
.60
Connector Height (in.)
1.21
Connector Width (in.)
.92

Details

Color Family
Red
Electrical Product Type
Wire Connector
Maximum Wire Capacity
Max. 4 #10 AWG
Minimum Wire Capacity
Min. 2 #18 AWG
Package Quantity
500
Returnable
90-Day

Warranty / Certifications

Certifications and Listings
1-UL Listed,CSA Listed
Manufacturer Warranty
See www.idealind.com or call Customer Assistance for warranty details.
