Model # 2340L5-V

Internet #203751423

Ingersoll Rand Type 30 Reciprocating 60 Gal. 5 HP Electric 460-Volt 3 Phase Air Compressor
0678384649636

Ingersoll Rand

Type 30 Reciprocating 60 Gal. 5 HP Electric 460-Volt 3 Phase Air Compressor

$137999 /each
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

Ingersoll Rand utilizes over 140 years of experience to bring you the best quality in compressed air. The Ingersoll Rand 60 Gal. two-stage, electric air compressor with 5 HP is designed for heavy shop or industrial use (requires industrial 3 phase power supply). The reliability and performance is ideal for most applications and users including automotive services and body shops, fleet maintenance, machine shops, production and manufacturing lines, woodworking shops, dry cleaners, car washes, general maintenance, repair shops and farms.
  • Requires 460-Volt, industrial 3 phase power supply
  • Recommend professional licensed electrical installation
  • High efficiency stainless steel valves
  • Oversized industrial-grade bearings for extended pump life
  • High-efficiency intercooler
  • 100% cast iron pump, including cylinder head with deep-groove directional cooling fins
  • High-efficiency inlet air filter with sound attenuation (lessening) baffles
  • Balanced pistons for maximized efficiency and minimized vibration
  • Oversized cast iron balanced belt wheel to allow continuous-duty operation
  • Mounted magnetic starter included
  • 1/2 in. ball valve customer connection
  • Need help? CLICK HERE to view our Air Compressor Buying Guide
  • Click here for more information on Electronic Recycling Programs

Product Overview

Ingersoll Rand utilizes over 140 years of experience to bring you the best quality in compressed air. The Ingersoll Rand 60 Gal. two-stage, electric air compressor with 5 HP is designed for heavy shop or industrial use (requires industrial 3 phase power supply). The reliability and performance is ideal for most applications and users including automotive services and body shops, fleet maintenance, machine shops, production and manufacturing lines, woodworking shops, dry cleaners, car washes, general maintenance, repair shops and farms.

  • Requires 460-Volt, industrial 3 phase power supply
  • Recommend professional licensed electrical installation
  • High efficiency stainless steel valves
  • Oversized industrial-grade bearings for extended pump life
  • High-efficiency intercooler
  • 100% cast iron pump, including cylinder head with deep-groove directional cooling fins
  • High-efficiency inlet air filter with sound attenuation (lessening) baffles
  • Balanced pistons for maximized efficiency and minimized vibration
  • Oversized cast iron balanced belt wheel to allow continuous-duty operation
  • Mounted magnetic starter included
  • 1/2 in. ball valve customer connection
  • Need help? CLICK HERE to view our Air Compressor Buying Guide
  • Click here for more information on Electronic Recycling Programs

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.

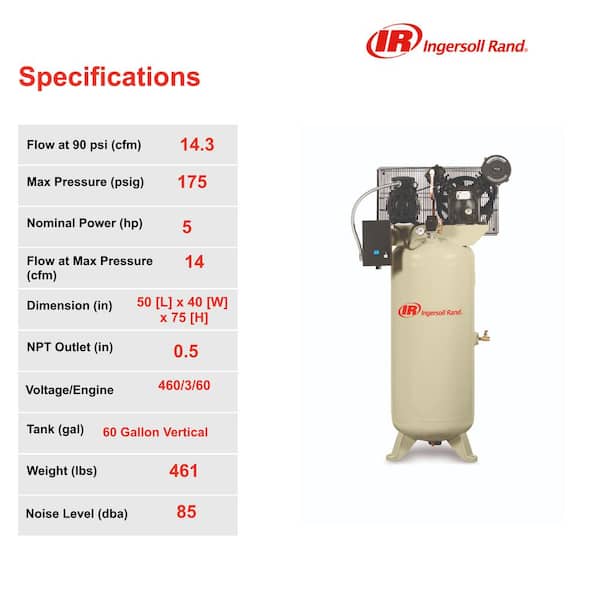

Specifications

Dimensions

Product Depth (in.)
48
Product Height (in.)
76
Product Width (in.)
40

Details

Air Delivery SCFM @ 40PSI
14.7
Air Delivery SCFM @ 90PSI
14.3
Amperage (amps)
7.6
Application Use
Air Brushing,Blow Cleaning,Bolting/Wrenching,Brad Nailing/Stapling,Cutting,Drilling,Finish Nailing,Framing Nailing,Grinding,HVLP Painting,Hobby Nailing,Hobby Painting,Inflation,Roof Nailing,Sanding,Spraying,Surface Prep
Compressor Tank Capacity (Gallons)
60
Compressor Type
Garage & Industrial
Compressor/Air Tool Features
Tank Pressure Gauge
Decibel Rating (Outdoor)
85 dBA
Horsepower (hp)
5
Included
No additional components or accessories are included
Lubrication Type
Oil-Lubricated
Maximum Pressure (psi)
175
Portable
No
Power Source
Electric
Product Weight (lb.)
435lb
Pump Type
Piston
Reconditioned
No
Returnable
90-Day
Stage Count
Dual Stage
Tank Material
Steel
Tank Pressure Gauge
Yes
Tank Style
Vertical
Tools Product Type
Air Compressor
Voltage (volts)
460

Warranty / Certifications

Certifications and Listings
1-UL Listed,ANSI Certified,CARB Compliant,CSA Listed,OSHA Compliant,cUL Listed
Manufacturer Warranty
1 year or 2 years with use of Ingersoll Rand All Season Select Synthetic Lubricant

Specifications

Dimensions

Product Depth (in.)
48
Product Height (in.)
76
Product Width (in.)
40

Details

Air Delivery SCFM @ 40PSI
14.7
Air Delivery SCFM @ 90PSI
14.3
Amperage (amps)
7.6
Application Use
Air Brushing,Blow Cleaning,Bolting/Wrenching,Brad Nailing/Stapling,Cutting,Drilling,Finish Nailing,Framing Nailing,Grinding,HVLP Painting,Hobby Nailing,Hobby Painting,Inflation,Roof Nailing,Sanding,Spraying,Surface Prep
Compressor Tank Capacity (Gallons)
60
Compressor Type
Garage & Industrial
Compressor/Air Tool Features
Tank Pressure Gauge
Decibel Rating (Outdoor)
85 dBA
Horsepower (hp)
5
Included
No additional components or accessories are included
Lubrication Type
Oil-Lubricated
Maximum Pressure (psi)
175
Portable
No
Power Source
Electric
Product Weight (lb.)
435lb
Pump Type
Piston
Reconditioned
No
Returnable
90-Day
Stage Count
Dual Stage
Tank Material
Steel
Tank Pressure Gauge
Yes
Tank Style
Vertical
Tools Product Type
Air Compressor
Voltage (volts)
460

Warranty / Certifications

Certifications and Listings
1-UL Listed,ANSI Certified,CARB Compliant,CSA Listed,OSHA Compliant,cUL Listed
Manufacturer Warranty
1 year or 2 years with use of Ingersoll Rand All Season Select Synthetic Lubricant

More Products With These Features

Search

Questions & Answers

What is the coil control voltsge on the starter

Asked by: Gabby
  • y_2017, m_9, d_24, h_19CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.3
  • cp_1, bvpage1
  • co_hasquestions, tq_1
  • loc_, sid_203751423, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 160ms
  • QUESTIONS, PRODUCT

Customer Reviews

Type 30 Reciprocating 60 Gal. 5 HP Electric 460-Volt 3 Phase Air Compressor is rated 5.0 out of 5 by 2.
Rated 5 out of 5 by from no regrets with my purchase Second compressor I buy because of the great quality and easy handling. Variety of models and reasonable prices. Will keep on buy form this brand.
Date published: 2016-10-04
Rated 5 out of 5 by from Great Value for the price! This product has exceeded our expectations. Great buy!
Date published: 2013-04-30
