Model # 708674PK

Internet #205065079

JET 3 HP 10 in. Deluxe XACTA SAW Table Saw with 30 in. Fence, Cast Iron Wings and Riving Knife, 230-Volt
0662755941047

JET

3 HP 10 in. Deluxe XACTA SAW Table Saw with 30 in. Fence, Cast Iron Wings and Riving Knife, 230-Volt

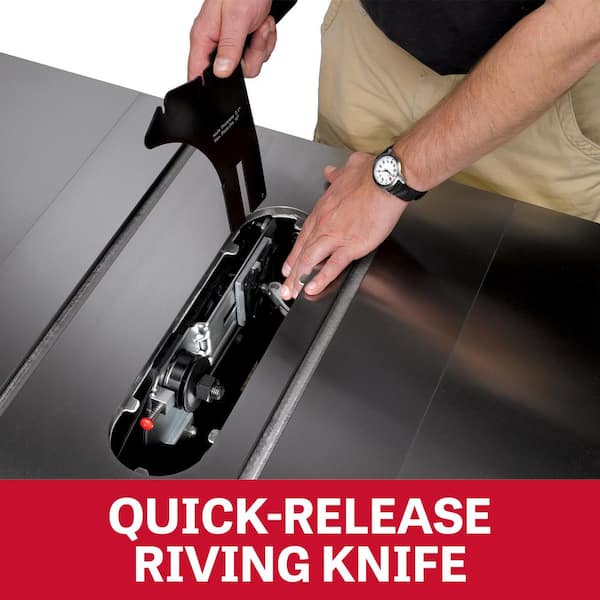

  • Quick release riving knife greatly reduces binding/kickback risk
  • Push button arbor lock for rapid blade change
  • Shrouded blade increases dust collection efficiency
$234199 /each
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

If you've ever wondered about what a table saw can really do, look no further. Introducing the new JET 10 in. DELUXE XACTA Saw. The Quick release riving knife and integrated arbor lock keeps the operator safe and more efficient. The DELUXE XACTA Saw offers an upgraded Poly-V belt drive system for smooth operation and optimal power transfer, a fully shrouded blade for highly efficient dust collection. The 26 in. x 30 in. wings and deeper table gives you even more cast iron to work on. A built-in 12.5 in. x 18 in. x 4 in. storage drawer sealed from the cabinet keeps your necessities within arm’s reach, also includes an on-board fence and miter gauge storage.

  • Exclusive 30 in. commercial XACTA fence II with T-square design
  • Rail-mounted magnetic switch is easy to reach and provides overload protection
  • Enclosed cabinet with built-in sealed storage drawer
  • Hinged motor cover on cabinet gives quick access to the motor and belts
  • Standard 11 in. left and right cast iron extension wings provides the largest table surface in its class
  • Poly-V drive belt system delivers quiet, efficient operation
  • An oversized/bulky item that requires delivery by truck; please be aware of the dimensions and weight of this machine
  • JET offers full tech support in order to assist with any warranty issues; please call 1800-274-6846 for assistance
  • Deluxe miter gauge with adjustable positive stops and large soft grip handles provides large crosscutting capacity and accurate miters
  • Heavy-duty chrome plated hand wheels contribute to smooth grunion/arbor movement
  • Built-in 4 in. dust collection port
  • Precision ground high luster cast iron table tops with front edge bevel for hassle-free work piece positioning
  • Left tilt, wide stance heavy-duty grunion for stability and smooth blade positioning
  • Independent leaf safety guard protects operator from blade while cutting, even at 45° tilt
  • Powder coated paint for a long-lasting, chip-resistant finish

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.

Compare Similar

Price Add to Cart to See Price
$2,341.99 /each
$2,499.99 /each
$2,703.99 /each
Name 1.75 HP 10 in. Proshop Table Saw with 30 in. Fence, Cast Iron Wings and Riving Knife, 115/230-Volt, JPS-10TS 3 HP 10 in. Deluxe XACTA SAW Table Saw with 30 in. Fence, Cast Iron Wings and Riving Knife, 230-Volt 3 HP 10 in. Deluxe XACTA SAW Table Saw with 50 in. Fence, Cast Iron Wings and Riving Knife, 230-Volt 5 HP 10 in. Deluxe XACTA SAW Table Saw with 50 in. Fence, Cast Iron Wings and Riving Knife, 230-Volt
Brand JET JET JET JET
Ratings (1) (1) (1) (0)
Blade Diameter 10 10 10 10
Table Length (in.) 20 29 29 29
Table Width (in.) 27 20 42 42
Rip Capacity - Right 30 30 50 50
Power Tool Features Blade Guard System,Stand Included Blade Guard System,No Tool Blade Change,Stand Included Blade Guard System,No Tool Blade Change,Stand Included Blade Guard System,No Tool Blade Change,Stand Included
View Product View Product View Product View Product

Specifications

Dimensions

Blade Diameter
10
Maximum Cut Depth @ 90 Deg.
3.125
Product Depth (in.)
64
Product Height (in.)
40
Product Width (in.)
39
Table Length (in.)
29
Table Width (in.)
20

Details

Amperage (amps)
14.5
Bench & Stationary Tool Type
Table Saw
Bench or Stationary
Stationary
Blade Location
Centered
Blade Speed
4300.000
Blade guard system
Yes
Color Family
White
Cord Length (ft.)
6
Depth Control
Yes
Dust Collection Method
4 in. Dust Port
Maximum Cut Depth @ 45 Deg.
2.125
Maximum Speed (rpm)
4300
No Tool Blade Change
No
Power Tool Features
Blade Guard System,No Tool Blade Change,Stand Included
Product Weight (lb.)
330lb
Reconditioned
No
Returnable
90-Day
Rip Capacity - Left
13
Rip Capacity - Right
30
Tools Product Type
Power Tool

Warranty / Certifications

Certifications and Listings
No Certifications or Listings
Manufacturer Warranty
5 Year

More Products With These Features

Search

Customer Questions & Answers

what power cord and plug is recommended for this saw?

Asked by: mark
This table saw uses Jet Equipment Power Cord JTAS10DX-31.
Answered by: CommunityAnswer
Date published: 2017-03-14
  • y_2017, m_8, d_14, h_1CST
  • bvseo_bulk, prod_bvqa, vn_bulk_1.0.0-hotfix-1
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_1
  • loc_, sid_205065079, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 34ms
  • QUESTIONS, PRODUCT

Customer Reviews

3 HP 10 in. Deluxe XACTA SAW Table Saw with 30 in. Fence, Cast Iron Wings and Riving Knife, 230-Volt is rated 5.0 out of 5 by 1.
Rated 5 out of 5 by from jet table saw Tons of power for dense hardwoods and nice stable base and vibration free
Date published: 2017-03-30
