Johnson Hardware 111SD Series 96 in. Track and Hardware Set for 2-Door Bypass Doors
0086073119627

Johnson Hardware

111SD Series 96 in. Track and Hardware Set for 2-Door Bypass Doors

$114.79 /each

Frequently Bought Together

Product Overview

This Johnson Hardware 111SD Series 96 in. Track and Hardware Set for 2-Door Bypass Doors is for 3/4 in. or thicker doors weighing up to 150 lb. The adaptable hardware is designed for residential and light commercial sliding door applications.

  • Good for use with 3/4 in. or thicker sliding bypass doors up to 150 lb.
  • Door weight is carried by 1025 ball bearing door hangers, so doors hang naturally to reduce possible warping problems
  • Convex rail design provides single-point hanger wheel contact for low roll resistance
  • Box design helps prevent rollers from jumping the track
  • Adjustable nylon door guides hold doors firmly in place and can be positioned for different door thicknesses
  • Heavy-walled, compact aluminum track is precision extruded for smooth operation
  • Meets ANSI standards
  • Tested quality: all Johnson Hardware is rigidly tested to meet ANSI standards

Specifications

Dimensions

Details

Warranty / Certifications

More Products With These Features

Search

Customer Questions & Answers

4 Questions5 Answers

Customer Questions & Answers

111SD Series 96 in. Track and Hardware Set for 2-Door Bypass Doors
111SD Series 96 in. Track and Hardware Set for 2-Door Bypass Doors

Ask your questions. Share your answers.



Clear Search Term


Sort By:

2 answers

do they come in white?

This question is from 111SD Series 96 in. Track and Hardware Set for 2-Door Bypass Doors
Asked by
West Palm Beach, Fl.
Read all my Q&A
August 15, 2016
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers (2)

August 16, 2016
Answer:
Unfortunately, the 111SD track only comes in mill finish aluminum(silver). You could paint it, though. Just be sure that the paint doesn't get inside the track. That may affect how well the wheels roll. You could just cover the inside of the track with painter's tape to shield it from over spray.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

August 15, 2016
Answer:
No, these do not come in white.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

1 answer

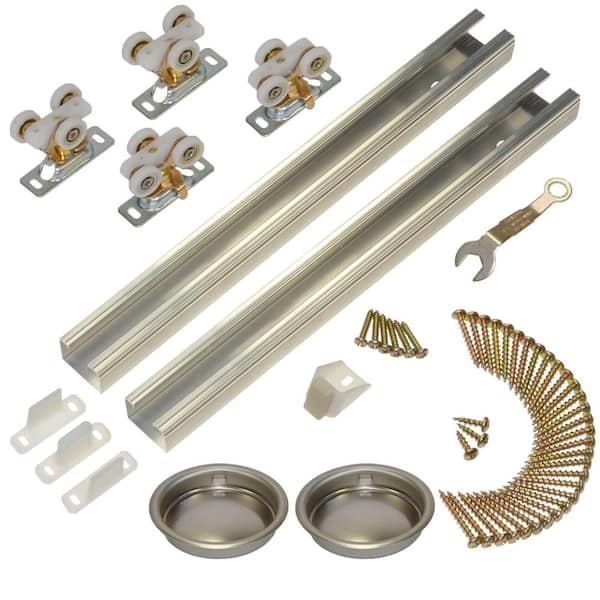

The product says it's 96" track and shows a picture of two (2) tracks. Are the tracks 96" each or both together 96"?

This question is from 111SD Series 96 in. Track and Hardware Set for 2-Door Bypass Doors
Asked by
Port Allen, La.
Read all my Q&A
January 24, 2016
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answer (1)

February 8, 2016
Answer:
Each track is 96" in length.
+4points
4out of 4found this answer helpful.
Was this helpful?helpful4unhelpful0

1 answer

is their a bottom track the doors run on? also, what is the total added height with track and hardware?

This question is from 111SD Series 96 in. Track and Hardware Set for 2-Door Bypass Doors
Asked by
ny
Read all my Q&A
November 4, 2015
the image online shows two tracks. Are these both attached above the two doors, or does one go on top and the other is somehow affixed to the floor? If one is attached to the floor, what is the ht above floor level? Also, when hardware and track are attached to the top of the doors, how much additional height is added?
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answer (1)

Asked by
Richmond, VA
Read all my Q&A
Home Improvement Profile: DIYer
January 7, 2016
Answer:
Johnson Hardware site has some info.
Looks like they are one track per door, unless you purchase a three or four door system.
They have door guides that fit the bottom.
They have other optional hardware you can purchase, even a carpet riser for the floor guides.
Looks like most with this standard door mount is about ~ 2 1/4 shorter door is needed then the opening.
Not sure if I can post hyperlinks, I did
Read More
Johnson Hardware site has some info.
Looks like they are one track per door, unless you purchase a three or four door system.
They have door guides that fit the bottom.
They have other optional hardware you can purchase, even a carpet riser for the floor guides.
Looks like most with this standard door mount is about ~ 2 1/4 shorter door is needed then the opening.
Not sure if I can post hyperlinks, I did a search for sliding door track and found their site.
For this track you will have to attach some sort of molding if you want to cover up the track.
Maybe rough in a small piece to nail finish trim to.
The Johnson Hardware site might have a better track to fit your needs.
It looks like good quality material though.
Good Luck
Read Less
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

1 answer

how thick can the doors be and how wide does the jamb need to be

This question is from 111SD Series 96 in. Track and Hardware Set for 2-Door Bypass Doors
Asked by
Read all my Q&A
October 7, 2015
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answer (1)

Asked by
Richmond, VA
Read all my Q&A
Home Improvement Profile: DIYer
January 7, 2016
Answer:
This particular one looks to be for a variety of door widths.
The Johnson Hardware site has a larger selection and choices, although the prices are better at HD for the few they carry.
If you need to specialize a little more, I would suggest searching for sliding door track and visit their site.
They have choices for other door thicknesses.
Jamb on this one looks to depend on your door widths.
2 - 1 3/4
Read More
This particular one looks to be for a variety of door widths.
The Johnson Hardware site has a larger selection and choices, although the prices are better at HD for the few they carry.
If you need to specialize a little more, I would suggest searching for sliding door track and visit their site.
They have choices for other door thicknesses.
Jamb on this one looks to depend on your door widths.
2 - 1 3/4 doors would need about 4 inches plus your coverup molding.
They have some drawings there.
Good Luck
Read Less
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0
1 of 1
  • 2016-10-31 T01:40:29.095-05:00
  • bvseo_lps, prod_bvqa, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasquestionsanswers
  • loc_en_US, sid_100658028, prod, sort_default
1 of 1
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 43ms
  • QUESTIONS, PRODUCT

Customer Reviews

Rated 4.0 out of 5 by 2 reviewers.
Rated 4.0 out of 5.0 by Easy to install The instructions were easy to follow and it went up quickly. My track was a little longer than my opening but the aluminum track was easy to cut with a hack saw. The only problem was that the last foot of the tracks were smashed in shipping with no indication of damage until removed from the box. I could still get use of one since I needed to cut off a foot but the extra track that I was going to use on a future projected is also damaged. January 5, 2016
Rated 4.0 out of 5.0 by Easy to install - well designed Using these door tracks was one of those rare times on home improvement where all the parts are there, they are well designed and getting a professional result was easy. Great product!! July 21, 2015
