Model # K-9530-G

Internet #100008115

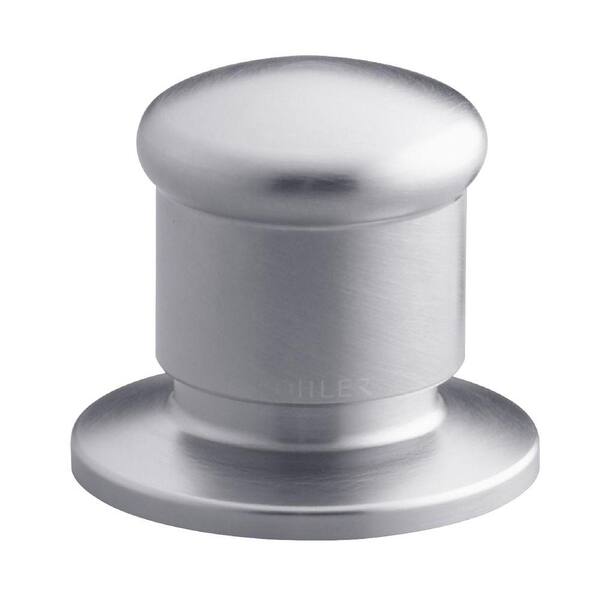

KOHLER Deck-Mount 2-Way Diverter Valve, Brushed Chrome
0040688270241

KOHLER

Deck-Mount 2-Way Diverter Valve, Brushed Chrome

$19517 /each

Choose Your Options

Brushed Chrome
  • Brushed Chrome
  • Oil-Rubbed Bronze
  • Polished Brass
  • Polished Chrome
  • Vibrant Brushed Bronze
  • Vibrant French Gold
  • Vibrant Moderne Brushed Gold
  • Vibrant Polished Nickel
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

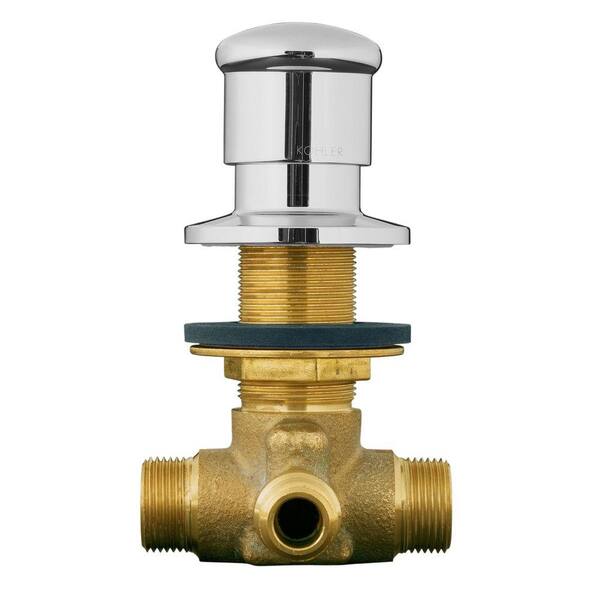

This deck-mount 2-way diverter valve works behind the scenes to give you optimal performance from your KOHLER faucet. It features brass construction for durability, and long-lasting ceramic valves that offer a lifetime of smoothly functioning water flow.

  • High-flow valve ensures optimal water flow performance
  • Quarter-turn ceramic disc valves exceed industry longevity standards, ensuring durable performance for life
  • 15.0 to 25.0 GPM flow rate
  • For use with bath- or deck-mount faucets
  • Can be wall-mounted up to 1-1/4 in. wall thickness
  • Code approved for backflow prevention
  • Additional components required
  • Brass construction

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.

Compare Similar

Price
$106.08 /each
$195.17 /each
$208.16 /each
$364.00 /each
Name 3/4" in-wall 2- or 3-way Transfer Valve Deck-Mount 2-Way Diverter Valve, Brushed Chrome Loure 2-Way Diverter Valve in Polished Chrome Grandera GrohFlex Single Handle Single Function Thermostatic Valve Trim Kit in StarLight Chrome (Valve Sold Separately)
Brand KOHLER KOHLER KOHLER GROHE
Ratings (1) (1) (0) (0)
Valve Outlet Diameter (in.) .5 .5 0.5
Valve Inlet Diameter (in.) .5 .5 0.5
Connection Sweat Male Pipe Thread With Screws
View Product View Product View Product View Product

Specifications

Dimensions

Product Depth (in.)
2.5
Product Height (in.)
2.375
Product Length (in.)
2.375
Product Width (in.)
2.5
Valve Inlet Diameter (in.)
.5
Valve Outlet Diameter (in.)
.5

Details

Color/Finish
Brushed Chrome
Compatible Pipe Material
Brass
Connection
Sweat
Fits Faucet Brand
Kohler
Indoor/Outdoor
Indoor
Material
Brass
Maximum Pressure (psi)
150
Maximum Working Temperature (F)
120
Product Weight (lb.)
3.412lb
Returnable
90-Day
Valve Type
Diverter

Warranty / Certifications

Manufacturer Warranty
Lifetime Limited Warranty

More Products With These Features

Search

Customer Questions & Answers

Diverted is installed and will not completely turn off faucet when switch to shower.

Asked by: SRobinett
Hi, this is Laura with Kohler Co. I am happy to assist you with your question. Please call our Customer Care Center at 1-800-4KOHLER (1-800-456-4537) for assistance with your diverter. Thank you for choosing The Bold Look of KOHLER.
Answered by: Kohler Product Expert
Date published: 2017-05-22

Does the divider lock each option into place or does it need to be held down manually the whole time?

Question is based on the customer review
Asked by: lee
Hello, my name is Julie with KOHLER Customer Service. I am happy to assist you with your diverter question. The 9530 diverter will lock into its position and will remain. It does not need to be held manually. For additional assistance on this inquiry, please contact our Customer Care Center at 1-800-4KOHLER. (1-800-456-4537) Thank you for choosing the Bold Look of KOHLER.
Answered by: Kohler Product Expert
Date published: 2017-05-22

need to put street 90's on all four ports because of space, standard brass fittings won't seal... are there special threads on the diverter???

Asked by: scott
Hello, my name is Leah with KOHLER Customer Service. I am happy to assist you with your diverter question. I apologize you were unable to find the information you were looking for. The deck mount diverter, model 9530 will have 3 standard 1/2 NPT fittings. The fourth port is a proprietary thread that the high pressure flexible hose threads onto. I would not recommend installing a 90 on the fourth port. Please work with your local Home Depot for pricing and availability on this product. Thank you for choosing the Bold Look of KOHLER.
Answered by: KOHLER Customer Service
Date published: 2015-11-03

will i be able to have both showers on at the same time? how many positions is the nob? and does it click into each position? what is the thread size

Asked by: CR12345
Hello, my name is April with KOHLER Customer Service. I am happy to assist you with your mixing lve question. For the Model # K-9530-BN this valve is meant to be mounted on the deck of a tub and to be used to be used to transfer the water from the tub spout and the hand held shower head. If you have configuration question beyond this scope please feel free to contact our Customer Care Center at 1-800-4KOHLER. (1-800-456-4537) we would be delighted to assist you. Thank you for choosing the Bold Look of KOHLER.
Answered by: KOHLER Customer Service
Date published: 2015-12-24
  • y_2017, m_8, d_14, h_10CST
  • bvseo_bulk, prod_bvqa, vn_bulk_1.0.0-hotfix-1
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_5
  • loc_, sid_100008115, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 100ms
  • QUESTIONS, PRODUCT

Customer Reviews

Deck-Mount 2-Way Diverter Valve, Brushed Chrome is rated 2.0 out of 5 by 1.
Rated 2 out of 5 by from Maybe defective Bought this to add shower head because wife did not wanted a tub spout without built in diverter. Got everything plumbed in and it only diverts water to shower head if the valve is held down manually. It does not lock itself down. Hold it down shower works let it go shower turns off water goes back to tub spout. Directions don't really address how this thing is suppose to work. Not sure if it's defective or suppose to work this way but it does not work for what I need. Nice that I got all the plumbing and tile cut for this thing and it's going back.
Date published: 2015-06-28
