Model # XWL 2 32 120 RE

Internet #202034431

Store SKU #142191

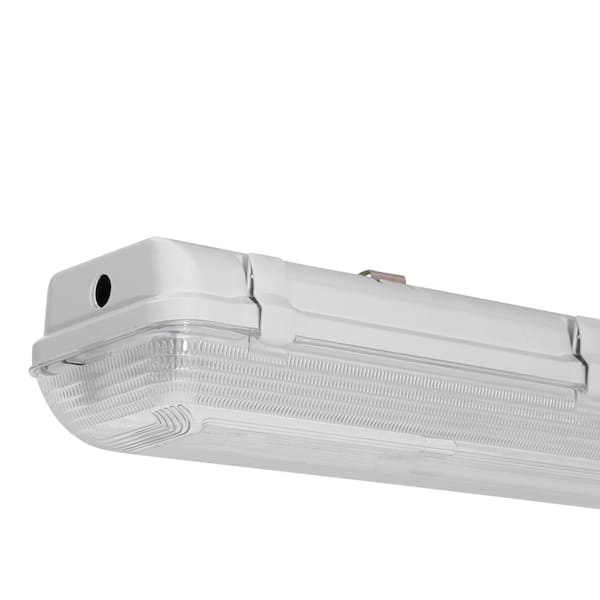

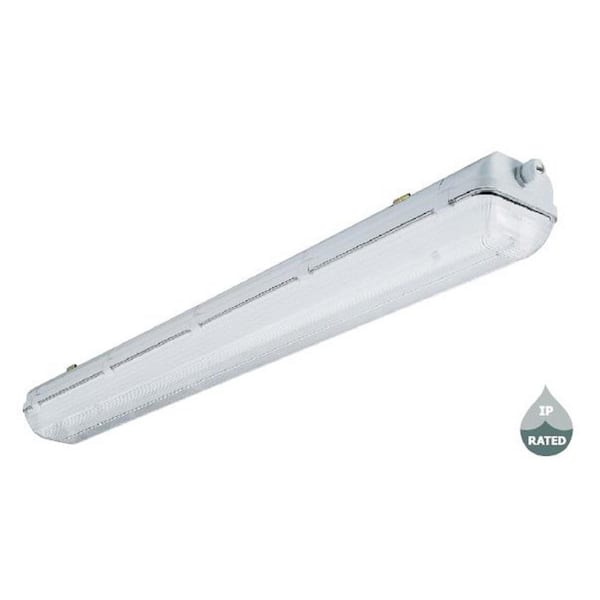

Lithonia Lighting Industrial 2-Light White Outdoor Fluorescent Hanging Fixture
0784231177396

Lithonia Lighting

Industrial 2-Light White Outdoor Fluorescent Hanging Fixture

$69.97 /each

Frequently Bought Together

Product Overview

The Lithonia Lighting Outdoor Industrial Fluorescent Fixture is designed for low to medium mounting heights and is ideal for use in areas of dirt, dust, humidity and moisture. The fixture features a UV-stabilized, impact-resistant, clear prismatic polycarbonate lens in a fully gasketed housing.

  • Acrylic housing is UL and wet-location listed
  • Clear prismatic polycarbonate lens is UV stabilized and impact-resistant
  • 2 stainless steel mounting brackets (included) allow for flush or chain mounting (chain sold separately)
  • Fully gasketed housing is sealed against dust, moisture, fumes and insects
  • Uses two 32-Watt T8 fluorescent bulbs (sold separately)
  • CUL listed to US and Canadian safety standards and wet location listed for covered ceiling applications

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.

Specifications

Dimensions

Details

Warranty / Certifications

More Products With These Features

Search

Customer Questions & Answers

22 Questions35 Answers

Customer Questions & Answers

Industrial 2-Light White Outdoor Fluorescent Hanging Fixture
Industrial 2-Light White Outdoor Fluorescent Hanging Fixture

Ask your questions. Share your answers.



Clear Search Term


Sort By:

3 answers

what replacement ballast will work for this light fixture?

This question is from Industrial 2-Light White Outdoor Fluorescent Hanging Fixture
Asked by
Read all my Q&A
October 30, 2014
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers (3)

Asked by
schaumburg Illinois
Read all my Q&A
Home Improvement Profile: Professional
December 14, 2014
Answer:
no this not right because I check every ballast that was at store 6701 elkgrove village that replacement was not offered sign a former hd associate
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Asked by
schaumburg Illinois
Read all my Q&A
Home Improvement Profile: Professional
December 13, 2014
Answer:
Not really anyone I found out after my fixture ballast kicked the bucket I checked around the wiring on the new ballast didn't match up and the price of a ballast is almost the price of a new fixture I went electrical supply store didn't get any were shuck the old fixture and replace it save your self headaches most ballast that were close were almost $45.00 it has to be a t-8 ballast and most I saw at Read More
Not really anyone I found out after my fixture ballast kicked the bucket I checked around the wiring on the new ballast didn't match up and the price of a ballast is almost the price of a new fixture I went electrical supply store didn't get any were shuck the old fixture and replace it save your self headaches most ballast that were close were almost $45.00 it has to be a t-8 ballast and most I saw at home depot were wrong on wiring colors has to be red and blue same numbers of wires not worth it to try a retro fit Read Less
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Asked by
Orange,Calfornia
Read all my Q&A
Home Improvement Profile: Professional
November 1, 2014
Answer:
Hi Rhino,
I'd recommend you to use the same ballast that is in there now, which is a 2-lamp F32T8 electronic ballast.
To view the replacement ballast for this fixture, view the link below for more information.
http://www.homedepot.com/p/Philips-Advance-AmbiStar-120-Volt-1-or-2-Lamp-T8-Instant-Start-Residential-Electronic-Fluorescent-Replacement-Ballast-496802/202977064
This ballast is sold at your Read More
Hi Rhino,
I'd recommend you to use the same ballast that is in there now, which is a 2-lamp F32T8 electronic ballast.
To view the replacement ballast for this fixture, view the link below for more information.
http://www.homedepot.com/p/Philips-Advance-AmbiStar-120-Volt-1-or-2-Lamp-T8-Instant-Start-Residential-Electronic-Fluorescent-Replacement-Ballast-496802/202977064
This ballast is sold at your local Home Depot store.
Joseph Read Less
+2points
2out of 2found this answer helpful.
Was this helpful?helpful2unhelpful0

3 answers

what is the wiring on this light?

This question is from Industrial 2-Light White Outdoor Fluorescent Hanging Fixture
Asked by
dave
NYC
August 20, 2013
can it be plugged in to an extension cord and if so does it come wired that way
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers (3)

Asked by
Houston, Arkansas
Read all my Q&A
January 21, 2014
Answer:
115vac you would have to install a plug, depends how many you want to plug together
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Asked by
Fairfield Iowa
Read all my Q&A
November 19, 2013
Answer:
No, it has to be hard wired.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

August 21, 2013
Answer:
This fixture is designed to be hardwired.
-1point
0out of 1found this answer helpful.
Was this helpful?helpful0unhelpful1

3 answers

Why are there no voltage specifications 115VAC or 230VAC?

This question is from Industrial 2-Light White Outdoor Fluorescent Hanging Fixture
Asked by
Wayne
October 16, 2012
+1point
1out of 1found this question helpful.
Was this helpful?helpful1unhelpful0

Answers (3)

Asked by
Houston, Arkansas
Read all my Q&A
January 21, 2014
Answer:
115vac
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0

Asked by
Fairfield Iowa
Read all my Q&A
November 19, 2013
Answer:
115V
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0

October 17, 2012
Answer:
This fixture uses a standard electronic ballast (120-277V, 60Hz).
Thank you!
+4points
4out of 4found this answer helpful.
Was this helpful?helpful4unhelpful0

2 answers

What size is the knock out at teh end of the fixture? i.e. 1/2", 3/4", etc

This question is from Industrial 2-Light White Outdoor Fluorescent Hanging Fixture
Asked by
Neptune beach
Read all my Q&A
November 24, 2014
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers (2)

Asked by
schaumburg Illinois
Read all my Q&A
December 13, 2014
Answer:
the knockout are 1/2 inch but you have to enlarge them a bit to get emt connectors in the holes found out threw my experience have to use a step drill to make the a litter bigger hope this helps
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0

December 2, 2014
Answer:
The knockout size is 1/2".
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0
2 »
  • 2016-10-31 T01:24:53.931-05:00
  • bvseo_lps, prod_bvqa, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasquestionsanswers
  • loc_en_US, sid_202034431, prod, sort_default
2 »
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 151ms
  • QUESTIONS, PRODUCT

Customer Reviews

Industrial 2-Light White Outdoor Fluorescent Hanging Fixture is rated 4.6 out of 5 by 26.
Rated 5 out of 5 by from Daylight bulbs Definitely makes a difference in sewing room lighting!!!!
Date published: 2016-11-08
Rated 5 out of 5 by from Five Stars, Lithonia Lighting Outdoor Industrial Fluorescent Fixture At first I was hesitant to purchase this item,because it needed to be wired before use. With the help of the customer service representative I was able to locate prewired power cables which are prepared for wiring such items, by not having the female plug on the end, but having the male three prong plug on the other end, this was Ideal for use. The lights were easy to disasemble and came with all items needed to do the wiring myself. The wires matched up and everything went together perfectly. I added a little silicone to sill off the end and the job was complete. The Lithonia light fixture is designed to be dirt, dust, and humidity free,which it is. I use this in a very moist GreenHouse setting and it works great!
Date published: 2012-11-20
Rated 5 out of 5 by from Great fixture I'm using four of these in my garage and they're very bright. The sealed units are great
Date published: 2016-06-24
Rated 5 out of 5 by from Horse stall lights Easy to install in horse barn provides great light
Date published: 2016-02-11
Rated 5 out of 5 by from Better than Lowes model Big difference in quality. I do recommend this item
Date published: 2015-04-08
Rated 5 out of 5 by from Replaced 4 inefficient two light T12 fixtures with two of these in my garage. Using 6500k bulbs for max brightness. Workspace is now brighter and no more hum to listen to!
Date published: 2015-12-11
Rated 4 out of 5 by from Decent product, poor customer support. These lights are pretty easy to go in and light up well. If you are planning on using them on a GFCI circuit though, look elsewhere. I put 18 of these up in my barn on 4 circuits. 3 of the circuits work fine with GFCI, but the 4th tripped every time. I traced it to the ballast on the lights, which showed a 13 ohm instant reading and then it would normal out, but that is enough to trip the gfci. I called Lithonia and was shuffled via 5 different people and 3 different departments to a man in residential lighting tech support who prmoised me an engineer would call, but never did. I had to pull the gfci out, which was fine since it's an overhead circuit and not required by code, but I would have preferred to have it in, just for peace of mind.
Date published: 2013-07-12
Rated 5 out of 5 by from Good Quality Product!!! I needed an affordable fluorescent light for a commercial application and this was exactly what I was looking for!...It was very easy to assemble and install!.....I like the sealed cover feature...much nicer than the other alternatives....don't forget to purchase the bulbs!...they are not included.
Date published: 2015-03-25
