VCMA-20UL 230-Volt Condensate Removal Pump-554451 - The Home Depot
Message to Our Customers
Discontinued

Model # 554451

Internet # 204481240

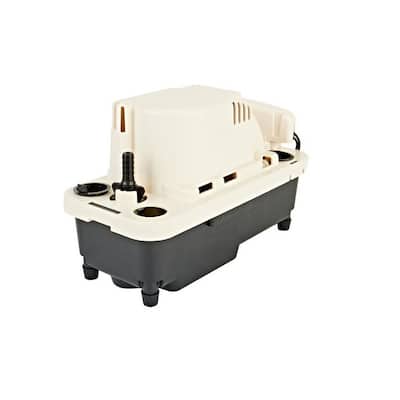

VCMA-20UL 230-Volt Condensate Removal Pump

VCMA-20UL 230-Volt Condensate Removal Pump


This item has been discontinued.
The Home Depot no longer carries this specific product.

$57.29 / each
Loading...

PRODUCT OVERVIEW

Model # 554451

Internet # 204481240

The VCMA-20UL has a 1/2 gal. tank capacity. Little Giant VCMA Series is ideal for collecting, detecting, and the automatic removal of condensate from air conditioning equipment, de-humidifiers, high efficiency furnaces, condensing boilers, and other equipment where an automatic drain pump is required. Also suitable for high efficiency oil and gas-fired condensing furnace and condensing boiler equipment.

  • 1/30 HP high performance 230-volt motor
  • ABS tank, motor cover and volute
  • Stainless steel pump shaft
  • Snap-action pump switch
  • Removable 3/8 in. barbed check valve
  • Home Depot Protection Plan:

    Home Depot Protection Plan

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

SPECIFICATIONS

Dimensions
Assembled Depth (in.)
11 in
Assembled Height (in.)
7.03 in
Assembled Width (in.)
5 in
Maximum Pumping Height (ft.)
17
Product Depth (in.)
11
Product Height (in.)
7.03
Product Width (in.)
Details
Amperage (amps)
0.5
Bypass Valve Included
No
Bypass Valve Required
No
Cord Length (ft.)
Horsepower (hp)
.03 hp
Housing Material
Thermoplastic
Inlet Connection
Plain end
Maximum Discharge Flow (gallons/hour)
48
Maximum Discharge Pressure (psi)
7.4
Outlet Connection
Barb/rib
Power Type Required
AC
Product Weight (lb.)
5 lb
Returnable
90-Day
Self-Priming
Yes
Tank Capacity (gallons)
0.5
Voltage (volts)
230
Warranty / Certifications
Certifications and Listings
CSA Certified
Manufacturer Warranty
Limited Warranty
