Model # T694ORB

Internet #203399656

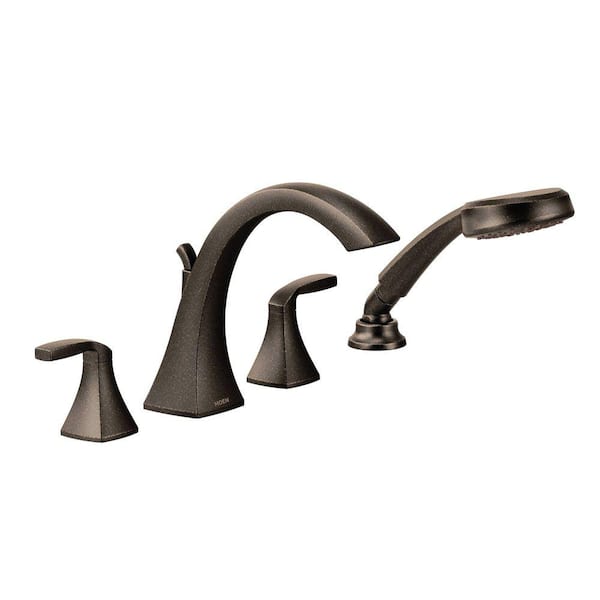

MOEN Voss 2-Handle High-Arc Roman Tub Faucet Trim Kit with Hand Shower in Oil Rubbed Bronze (Valve Not Included)
0026508230756

MOEN

Voss 2-Handle High-Arc Roman Tub Faucet Trim Kit with Hand Shower in Oil Rubbed Bronze (Valve Not Included)

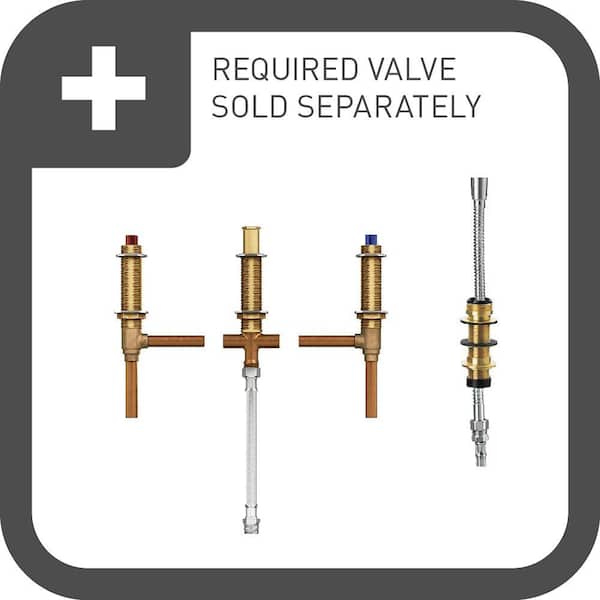

  • Required valve for installation not included
  • Includes Roman tub faucet, hand shower, and 2 handle levers
  • Matching suite of products available
$74295 /each

Choose Your Options

Oil Rubbed Bronze
  • Brushed Nickel
  • Chrome
  • Oil Rubbed Bronze

Frequently Bought Together

Product Overview

Crisp edges and uncomplicated style features give the Voss collection an ageless, yet fashion-forward, presence. Each silhouette brings a confident transitional style to the bath. This oil rubbed bronze two-handle high arc roman tub faucet includes hand shower was built to last by MOEN. Designed for use in your bath. This trim kit requires MOEN valve 9792, 9793, 9796, or 9797 to complete installation.

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.

Specifications

Dimensions

Details

Warranty / Certifications

More Products With These Features

Search

Customer Questions & Answers

how do I solder the fitting with out melitng the inter washers

Asked by: doug
Three steps to prepare before soldering. 1) Carefully remove the white plug on the bottom. It will pull out if you hook it right with thin pliers and pull slowly straight out. 2) Use the Diverter Lift Rod to pull the Diverter up just half way. Tape it in place with a bunch of painters' tape. The goal is to get the black rubber bit that seals the pipe at the top of the bottom to sit exactly halfway up in the four way cross so that is doesn't touch the metal. I found that if I pushed up at the bottom from where I had removed the white plug until the hexagonal rod is level with the brass ledge that you'll see there, then the black rubber was at the right depth. Look inside the pipe from the side and you'll see. 3) Wrap the outside of the valve with lots of strips of cloth and wet it generously. Then solder. But do it carefully and quickly, directing the flame away from the four way cross.
Answered by: DA
Date published: 2017-04-30

I see related questions to what I need to know but nothing clearly addresses this: I only have a...

I see related questions to what I need to know but nothing clearly addresses this: I only have a need for the 3-hole part w/o the hand held sprayer. I don't see a version of this for sale without the 4th hole/shower sprayer but I have a Moen T623 faucet to install. No sprayer. Is there a different part no or can I use this one and discard the sprayer part?
Asked by: Christopher
Hi Christopher, thank you for your inquiry. We do not offer a Moen 3-Hole Roman Tub Rough-in CC Valve on homedepot.com. We would recommend reaching out to the manufacturer Moen to inquire about installation for this unit and if any parts that are not needed can be discarded. I have linked their website below with their contact information page so that you may receive the best details from their specialists. Hope this helps! We appreciate your business and look forward to serving you in the future. Thank you for shopping Home Depot! https://www.moen.com/customer-support/contact-us
Answered by: THDSupport
Date published: 2016-12-26

Handshower

Can i order the handshower only?
Asked by: Isabel
Hello Isabel and thank you for your recent inquiry with The Home Depot. Unfortunately, the hand shower for the Voss 2-Handle High-Arc Roman Tub Faucet Trim Kit with Handshower in Oil Rubbed Bronze is not sold separately. We appreciate your business and look forward to serving you in the future. Thank you for shopping Home Depot.
Answered by: THDSupport
Date published: 2016-07-06

The handshower part of the tub fixture leaks under the tub (that is enclosed).

I was told that it needed an elbow. Is that correct.
Asked by: Rosie
Hello Rosie. Thank you so much for your interest in Moen products. Moen would need to get more information on where you see the Moen Voss roman tub fixture leaking. Please contact Moen directly for troubleshooting help and the correct part to fix the leak. Moen can be reached at 1-800-289-6636 our business hours are 8:00 a.m. - 7:00 p.m. Monday through Friday and 9:00 a.m. - 3:00 p.m. Saturday EST.
Answered by: Moen
Date published: 2015-11-27
  • y_2017, m_6, d_25, h_24CST
  • bvseo_bulk, prod_bvqa, vn_bulk_1.0.0-hotfix-1
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_11
  • loc_, sid_203399656, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 99ms
  • QUESTIONS, PRODUCT

Customer Reviews

Voss 2-Handle High-Arc Roman Tub Faucet Trim Kit with Hand Shower in Oil Rubbed Bronze (Valve Not Included) is rated 4.5 out of 5 by 2.
Rated 4 out of 5 by from This valve works fine and is needed for the faucet we installed. Soldering is required; so, do-i... This valve works fine and is needed for the faucet we installed. Soldering is required; so, do-it-yourself folks need to recognize this. Too, these valves have a PVC or plastic fitting in both the cold and hot water stems. When soldering, it is important not to over heat and thus melt the plastic fitting. Yes, I recommend this product with caution for amateurs trying to do-it-themselves.
Date published: 2017-03-21
Rated 5 out of 5 by from great product great product and fast shipping would recommend to anyone
Date published: 2013-08-30
