Model # P5125H1-MAP

Internet #203175028

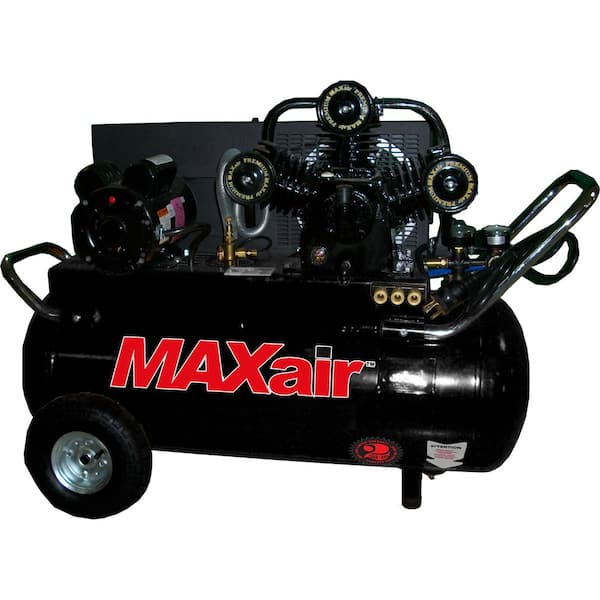

Maxair 25-Gal. Portable Electric Powered Air Compressor
0020791502095

Maxair

25-Gal. Portable Electric Powered Air Compressor

$139900 /each
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

The Maxair Premium Industrial 5 HP Electric 220-Volt, 25 Gal. ASME Tank has a High flow 3 piston cast iron "V" style pump that generated 18.5 CFM at 100 PSI and max 170 PSI. This compressor is equipped with high efficiency reed valves for longer life, all metal belt guard for maximum cooling, liquid filled non vibrating pressure gauge for easy read, Auto Drop premium air filters.

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.

Specifications

Dimensions

Product Depth (in.)
44
Product Height (in.)
33
Product Width (in.)
18

Details

Air Delivery SCFM @ 40PSI
22.2
Air Delivery SCFM @ 90PSI
19.4
Amperage (amps)
23
Application Use
Bolting/Wrenching,Framing Nailing,Grinding,Roof Nailing,Sanding,Spraying,Surface Prep
Compressor Tank Capacity (Gallons)
25
Compressor Type
Framing & Roofing
Compressor/Air Tool Features
Handle,Tank Pressure Gauge
Decibel Rating (Outdoor)
Not Measured
Horsepower (hp)
5
Included
No additional components or accessories are included
Lubrication Type
Oil-Lubricated
Maximum Pressure (psi)
170
Portable
Yes
Power Source
Electric
Product Weight (lb.)
250lb
Pump Type
3 Piston Cast Iron
Reconditioned
No
Returnable
90-Day
Stage Count
Single Stage
Tank Material
Steel
Tank Pressure Gauge
Yes
Tank Style
Horizontal
Tools Product Type
Air Compressor
Voltage (volts)
208/230

Warranty / Certifications

Certifications and Listings
CSA Listed
Manufacturer Warranty
2 Year Limited Warranty ( Receipt Required)

More Products With These Features

Search

Customer Questions & Answers

max cfm at 170 psi

do you have a chart of cfm for #Maxair Model # P5125H1-MAP from 100 psi to 170 psi thanks
Asked by: Armand
  • y_2017, m_7, d_19, h_4CST
  • bvseo_bulk, prod_bvqa, vn_bulk_1.0.0-hotfix-1
  • cp_1, bvpage1
  • co_hasquestions, tq_1
  • loc_, sid_203175028, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 96ms
  • QUESTIONS, PRODUCT

Customer Reviews

25-Gal. Portable Electric Powered Air Compressor is rated 3.5 out of 5 by 4.
Rated 4 out of 5 by from Gets the job done I bought this compressor for HVLP spraying. HVLP requires lots of air but I did not have room in my garage for a stationary compressor. The MaxAir P5125H1-MAP was the largest portable compressor that I could find. It is just barely portable (very heavy and a little tippy). I have just started painting and the compressor does seem to keep up with my gun. The only reason that I did not give this a five star rating is because of the cost. This is an expensive compressor. I hope it lasts a long time.
Date published: 2016-10-04
Rated 4 out of 5 by from Beefy compressor doesnt need to run long. Beefy compressor doesnt need to run long. Twelve cfm is too little to run power tools, this unit has 18 cfm; Id say spot on. Youll never regret your compressor not having to run long.
Date published: 2013-07-16
Rated 5 out of 5 by from Great value I don't require heavy use but when I need a compressor, I need it. This unit is small 25 gal but massive SCFM. It fits in the space of my old 1HP compressor and delivers 5 times the volume and at a higher pressure. I shut it off, let it sit for 10 days and it held pressure. No leaks on delivered unit. I would recommend it or the same unit with a larger tank.
Date published: 2014-05-28
Rated 1 out of 5 by from Very low product quality The compressor arrived with missing handles and broken pressure glas. The paint was touched up on multiple places and the power court and airfilter had all kinds of different paint on it.
Date published: 2013-12-14
