Model # 2206-20

Internet #202360063

Milwaukee Fork Meter for HVAC/R
0045242173747

Milwaukee

Fork Meter for HVAC/R

$129.00 /each

Frequently Bought Together

Product Overview

The Milwaukee Fork Meter Digital Multimeter is a heavy duty True-RMS electrical tester for professional residential, commercial and industrial applications. The multimeter measures current, temperature and voltage and features an easy-to-read white on black display with a backlight. The wide 63/100-in. jaw opening offers flexibility.

  • Measures current, temperature and voltage and detects voltage for HVAC/R
  • Measures up to 200 amps and offers a wide voltage range to 1,000 volts AC/DC

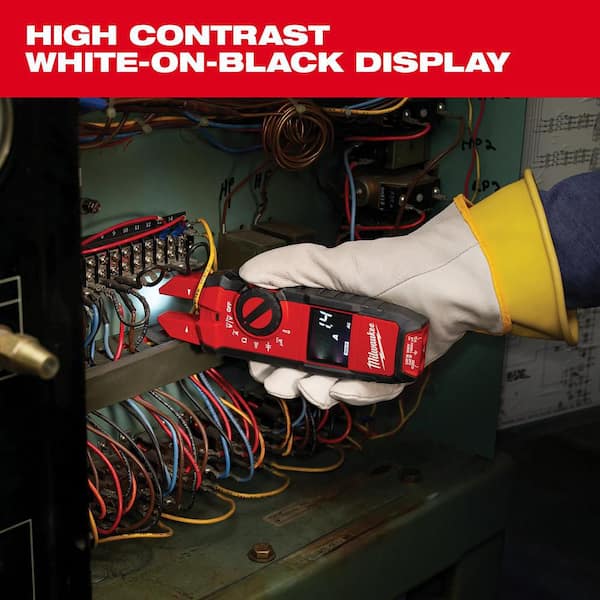

  • High contrast white on black display with backlight for easy reading
  • True-RMS for accurate measurement in all applications
  • Thermocouple dual banana input for contact temperature measurement
  • Wide 63/100 in. jaw opening
  • 600 UA DC for flame rectification
  • Built-in voltage detector and LED work light
  • Rugged over-molding increases durability and user grip
  • Click here for more information on Electronic Recycling Programs

Specifications

Dimensions

Details

Warranty / Certifications

More Products With These Features

Search

Customer Questions & Answers

9 Questions16 Answers

Customer Questions & Answers

Fork Meter for HVAC/R
Fork Meter for HVAC/R

Ask your questions. Share your answers.



Clear Search Term


Sort By:
This question is from Fork Meter for HVAC/R

3 answers

what's the max size wire the fork will fit over ?

This question is from Fork Meter for HVAC/R
Asked by
Read all my Q&A
October 26, 2015
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers (3)

Asked by
Oklahoma city
Read all my Q&A
Home Improvement Profile: Professional
October 16, 2016
Answer:
I have used it on #2 THHN you will not get it on 2/0
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Asked by
New Hampshire
Read all my Q&A
Home Improvement Profile: Professional
July 3, 2016
Answer:
Hey bcnulater!
I was wondering that myself so I took a look at Table 5 of The National Electrical Code, NFPA 70 NEC. If you run into the old RH (rubber covered) it would be a size 1/0. The early type T would be a 3/0. The present type THHN and XHHW wire is the same at 3/0. Table 5A with the compact conductors gets you to 4/0. If you do HVAC work you can always measure the load side of the factory
Read More
Hey bcnulater!
I was wondering that myself so I took a look at Table 5 of The National Electrical Code, NFPA 70 NEC. If you run into the old RH (rubber covered) it would be a size 1/0. The early type T would be a 3/0. The present type THHN and XHHW wire is the same at 3/0. Table 5A with the compact conductors gets you to 4/0. If you do HVAC work you can always measure the load side of the factory disconnect. For example; I just ran #6 to a Mitsu split recently only to see that they have #14 on the load side! No different ratio on the big splits or roof tops. It IS designed for HVAC/R work.
Read Less
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

December 21, 2015
Answer:
This tool provides a wide 0.63” fork opening.
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0
This question is from Fork Meter for HVAC/R

3 answers

what is temperature testing range and what type of probe is available?

This question is from Fork Meter for HVAC/R
Asked by
goshen,ct
Read all my Q&A
August 18, 2014
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers (3)

Asked by
Oklahoma city
Read all my Q&A
Home Improvement Profile: Professional
October 16, 2016
Answer:
Type K with adapter and type J with adapter, I had my Fluke thermocouples and they worked fine with this meter
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Home Improvement Profile: Professional
July 30, 2016
Answer:
Temperature range is from -40F to 752F. Connect the provided contact probe so that the + side of probe is connected to VΩ. Switch dial to Thermometer symbol.
Read Temperature.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

August 20, 2014
Answer:
The temperature range for this Fork Meter is -40° F to 752° F (-40° C to 400° C).
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0
This question is from Fork Meter for HVAC/R

3 answers

why is there no protective case for this meter?

This question is from Fork Meter for HVAC/R
Asked by
phil
lexington, ky
December 22, 2012
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers (3)

Asked by
Oklahoma city
Read all my Q&A
Home Improvement Profile: Professional
October 16, 2016
Answer:
No case unless you get an aftermarket. It comes in a blister pack
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Home Improvement Profile: Professional
September 29, 2016
Answer:
Hi Phil, This is a pretty rugged meter. One of the HVAC people I know has one and it goes from the rooftops to the basement by way of the crewl space to the compressor mezzanine back to the tool bag, no problem.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

January 3, 2013
Answer:
A lot of consideration went into determining whether or not to include a protective case. We found that users didn't necessarily want a protective case because they typically had one, or they had an alternative way of carrying the meter.
0points
1out of 2found this answer helpful.
Was this helpful?helpful1unhelpful1
This question is from Fork Meter for HVAC/R

2 answers

Is there a magnet on the back?

This question is from Fork Meter for HVAC/R
Asked by
Read all my Q&A
August 1, 2016
My Klein has a magnet on the back for going hands free, I'm able to stick the meter to the box or equipment and get the leads or probes into tight spots and still view the data.
Of not, I suppose I could JB Weld one on.
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers (2)

Asked by
Oklahoma city
Read all my Q&A
Home Improvement Profile: Professional
October 16, 2016
Answer:
No magnet, no clamp, no hangar. you must lay it where you can read it if doing something other than Amps
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

August 2, 2016
Answer:
No, the fork meter does not have a magnet on the back.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0
2 »
  • 2016-10-31 T01:16:23.262-05:00
  • bvseo_lps, prod_bvqa, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasquestionsanswers
  • loc_en_US, sid_202360063, prod, sort_default
2 »
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 74ms
  • QUESTIONS, PRODUCT

Customer Reviews

Fork Meter for HVAC/R is rated 3.9 out of 5 by 10.
Rated 2 out of 5 by from Don't expect it to last I am an electrician and used this regularly. I was pleased with this meter for daily use until the rotary dial broke on it. it is plastic "teeth" connected to brass that facilitates the rotation to select the proper reading. The plastic teeth disintegrated. This is the first Milwaukee meter I purchased during my career always choosing Fluke as my meter of choice. I have Fluke meters that I have used for 20+ years that are still operating and have not had issues with. I looked up the repair cost for this meter and it is 75% of the cost of a replacement. Not to mention the shipping and handling, and the trouble of taking it to fed-ex to ship. So, the cost will be more than the replacement cost. So I will toss this into the trash, where it belongs, and go buy a fluke.
Date published: 2016-10-16
Rated 5 out of 5 by from I have owned many of these meters. In the HVAC trades this is a perfect auto range meter. I have owned many of these meters. In the HVAC trades this is a perfect auto range meter.
Date published: 2016-12-13
Rated 4 out of 5 by from Great Meter I use this meter everyday servicing HVAC equipment. Very fast readings.
Date published: 2013-11-01
Rated 5 out of 5 by from love it As a hvac technician I wouldn't have any other meter!
Date published: 2016-02-05
Rated 3 out of 5 by from not for winter I purchased solely on credivility of milwaukee brand. I own a hvac company, I use it on every call, and during the cold winter the display freezes and needs to be warmed up for like 20 minutes for it to work. It's less than a year old and it just died completely.
Date published: 2015-03-09
Rated 1 out of 5 by from Not reliable Chose this for features for use at work. Noticed temperature was not right, compared to two other devices - the other two matched each other - this was off by more than 4 degrees. Purchased new probe, also way off and very, very slow for temperature readings. New probe banana connections very loose also. Can not trust this meter.
Date published: 2014-10-26
Rated 5 out of 5 by from execellentqualityvalue for money this ism one of the best around it works fine on all scales a very compact portable unit
Date published: 2015-03-22
Rated 4 out of 5 by from This is an absolutely great product if you are working with both AC and DC control voltages. The best feature and selling point of this meter is that is reads both AC and DC on one setting.
Date published: 2013-05-07
