Model # LC1224B1100

Internet #202315427

Store SKU #136715

Store SO SKU #516939

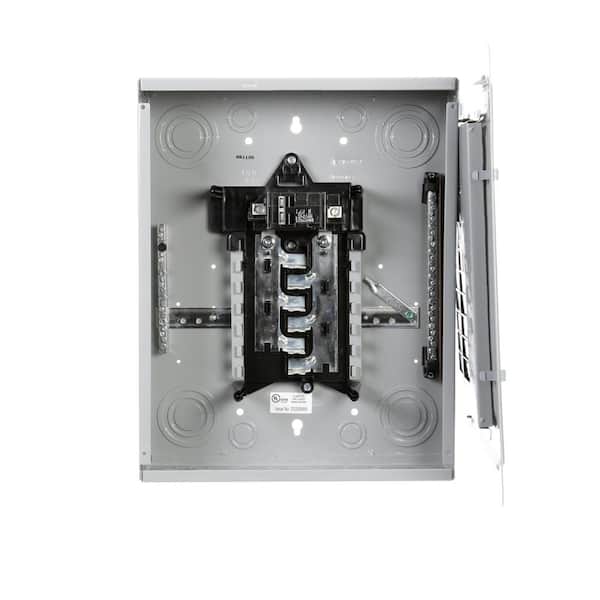

Murray 100-Amp 12-Space 24-Circuit Main Breaker Load Center
0040892009415

Murray

100-Amp 12-Space 24-Circuit Main Breaker Load Center

  • For use with Service or Non-Service Entrance Applications
  • Use with residential / commerical metering equipment applications
  • New Split Neutral with one bonded and one insulated bar
$6400 /each
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

  • For use with Service or Non-Service Entrance Applications
  • Use with residential / commerical metering equipment applications
  • New Split Neutral with one bonded and one insulated bar
Murray products have a rich tradition of quality and reliability that still lives on today. At the heart of the Murray offering is the Rock Solid load center – designed for those customers that prefer an out-board neutral design and metal base pan for installing breakers. The Rock Solid load center and Murray products remain an important part of the Siemens portfolio. Murray Rock Solid Load Centers are the highest quality, most versatile design in the industry.
  • Single phase, 100-Amp main breaker load center with 12 spaces/24 circuits
  • Swiss cheese style neutral bars provide multiple 1/0 connection points
  • Aluminum bus bar
  • All units include factory installed ground bar and isolated neutral
  • With the use of the included bonding strap, ground bars and neutral bars can be bonded for service entrance applications
  • Outboard neutral and ground bars allow for all neutral and ground connections to be located away from breaker connections, making for a neat, clean installation
  • Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws
  • Combination head screw on trim and upper pan screws provide installation flexibility
  • All devices are convertible from main lug to main breaker or vice versa with the addition of main breaker or main lug kits
  • All main breakers are straight in wired – no back feeding required
  • A rigid, sturdy base pan with metal hook rails provides the most rugged breaker connection in the industry
  • All indoor rock solid load centers are invertible for bottom feed applications
  • NEMA type 1: enclosure is intended for indoor use primarily to provide protection against contact with the enclosed equipment in locations where unusual service conditions do not exist
  • Learn More About Electrical Panels Here in our Buying Guide.

Product Overview

Murray products have a rich tradition of quality and reliability that still lives on today. At the heart of the Murray offering is the Rock Solid load center – designed for those customers that prefer an out-board neutral design and metal base pan for installing breakers. The Rock Solid load center and Murray products remain an important part of the Siemens portfolio. Murray Rock Solid Load Centers are the highest quality, most versatile design in the industry.

  • Single phase, 100-Amp main breaker load center with 12 spaces/24 circuits
  • Swiss cheese style neutral bars provide multiple 1/0 connection points
  • Aluminum bus bar
  • All units include factory installed ground bar and isolated neutral
  • With the use of the included bonding strap, ground bars and neutral bars can be bonded for service entrance applications
  • Outboard neutral and ground bars allow for all neutral and ground connections to be located away from breaker connections, making for a neat, clean installation
  • Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws
  • Combination head screw on trim and upper pan screws provide installation flexibility
  • All devices are convertible from main lug to main breaker or vice versa with the addition of main breaker or main lug kits
  • All main breakers are straight in wired – no back feeding required
  • A rigid, sturdy base pan with metal hook rails provides the most rugged breaker connection in the industry
  • All indoor rock solid load centers are invertible for bottom feed applications
  • NEMA type 1: enclosure is intended for indoor use primarily to provide protection against contact with the enclosed equipment in locations where unusual service conditions do not exist
  • Learn More About Electrical Panels Here in our Buying Guide.

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.

Compare Similar

Price
$64.00 /each
$107.00 /each
$107.16 /each
$132.60 /each
Name 100-Amp 12-Space 24-Circuit Main Breaker Load Center 200-Amp 20-Space 40-Circuit Main Breaker Load Center 150 Amp 16 Space 32-Circuit Main Breaker Indoor Load Center 150 Amp 30 Space 40-Circuit Main Breaker Indoor Load Center
Brand Murray Murray Murray Murray
Ratings (0) (0) (0) (0)
View Product View Product View Product View Product

Specifications

Dimensions

Load center depth (in.)
20.1
Load center height (in.)
6.0
Load center width (in.)
15.8

Details

Electrical Product Type
Load Center
Indoor/Outdoor
Indoor
Load Center Type
Main Breaker
Maximum Amperage (amps)
100
Mounting type
Plug In
Number of Phases
1
Number of Spaces
12
Product Weight (lb.)
20lb
Returnable
90-Day
Voltage (volts)
240

Warranty / Certifications

Certifications and Listings
1-UL Listed
Manufacturer Warranty
1 YEAR

Specifications

Dimensions

Load center depth (in.)
20.1
Load center height (in.)
6.0
Load center width (in.)
15.8

Details

Electrical Product Type
Load Center
Indoor/Outdoor
Indoor
Load Center Type
Main Breaker
Maximum Amperage (amps)
100
Mounting type
Plug In
Number of Phases
1
Number of Spaces
12
Product Weight (lb.)
20lb
Returnable
90-Day
Voltage (volts)
240

Warranty / Certifications

Certifications and Listings
1-UL Listed
Manufacturer Warranty
1 YEAR

More Products With These Features

Search

Questions & Answers

Where is the lug to connect the main neutral from the feed into the panel.

Asked by: Hetzel
Hetzel, I believe you are looking for a lug kit accessory. The neutral lug kit accessory for this panel would be an LX081M. Please reach out to our Retail Customer Support at 1-800-478-6346 for pricing and availability.
Answered by: SIEMENS Product Expert
Date published: 2017-01-23

I need just the door

I have the box just need the door does anyone know where I can buy just the door?
Asked by: kim
Hi Kim, My recommendation would be to reach out to our Retail Customer Support at 1-800-478-6346. They will be able give you more information regarding ordering replacement parts for your load center.
Answered by: SIEMENS Product Expert
Date published: 2016-07-06

Can the 100- amp breaker be taken out?

Asked by: Mikiedoo3663
Hi Mikiedoo3663, Yes, you can remove the factory installed 100 Amp main breaker from this panel to convert it to a main lug panel.
Answered by: SIEMENS Product Expert
Date published: 2016-04-08
