Model # LC2040B1100

Internet #202315543

Store SKU #136716

Store SO SKU #516939

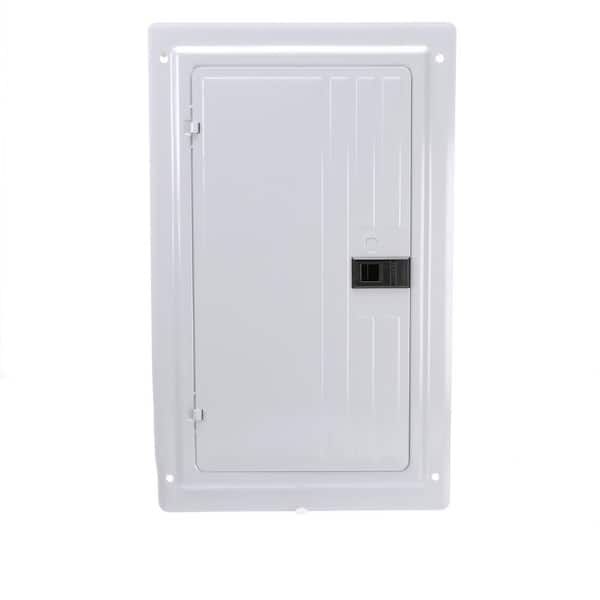

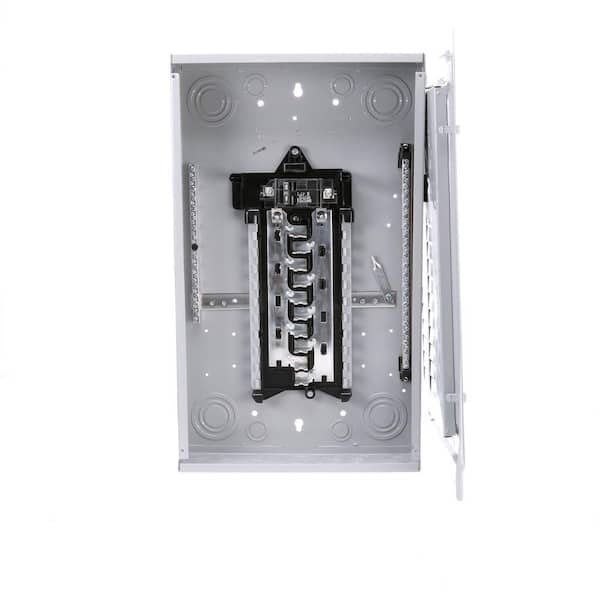

Murray 100 Amp 20-Space 40-Circuit Main Breaker Load Center
0040892009439

Murray

100 Amp 20-Space 40-Circuit Main Breaker Load Center

$59.97 /each

Frequently Bought Together

Product Overview

Murray products have a rich tradition of quality and reliability that still lives on today. At the heart of the Murray offering is the Rock Solid load center – designed for those customers that prefer an out-board neutral design and metal base pan for installing breakers. The Rock Solid load center and Murray products remain an important part of the Siemens portfolio. Murray Rock Solid Load Centers are the highest quality, most versatile design in the industry.

  • Single phase, 100 Amp main breaker load center with 20 spaces/40 circuits
  • Swiss cheese style neutral bars provide multiple 1/0 connection points
  • Aluminum bus bar
  • All units include factory installed ground bar and isolated neutral
  • With the use of the included bonding strap, ground bars and neutral bars can be bonded for service entrance applications
  • Outboard neutral and ground bars allow for all neutral and ground connections to be located away from breaker connections, making for a neat, clean installation
  • Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws
  • Combination head screw on trim and upper pan screws provide installation flexibility
  • All devices are convertible from main lug to main breaker or vice versa with the addition of main breaker or main lug kits
  • All main breakers are straight in wired – no back feeding required
  • A rigid, sturdy base pan with metal hook rails provides the most rugged breaker connection in the industry
  • All indoor rock solid load centers are invertible for bottom feed applications
  • NEMA type 1: enclosure is intended for indoor use primarily to provide protection against contact with the enclosed equipment in locations where unusual service conditions do not exist
  • Learn More About Electrical Panels Here in our Buying Guide.

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.

Specifications

Dimensions

Details

Warranty / Certifications

More Products With These Features

Search

Customer Questions & Answers

what is the knock out hole sizes on the bottom and how many?

I need to run 2x 1 1/4 pieces of flex and 1x 1 in . price of flex through the bottom
Asked by: jb
JB, The Largest Knockout holes on this are 2-1/2". Those would be the main knockout holes on the unit.
Answered by: SIEMENS Product Expert
Date published: 2017-03-07

Does this panel come with additional brokers? And how many lugs. The one I $ is missing the lug on the neutral bus bar.

Asked by: angel
Hi angel, This panel does not come with additional circuit breakers, all branch breakers have to be bough separately. For a replacement lug kit for the neutral bar you need part number ECLK2SC, please reach out to our Retail Customer Service at 1-800-478-6346 for information regarding ordering.
Answered by: SIEMENS Product Expert
Date published: 2016-11-14
