Model # 17002A

Internet #205511723

null NICOR 6 in. Recessed IC Rated Airtight Housing
0767706007558

NICOR 6 in. Recessed IC Rated Airtight Housing

$1566 /each

Product Overview

This 6 in. line-Voltage airtight aluminum housing is insulation contact rated. This housing is suitable for new construction in both residential and commercial applications. Features thermal protector guards, adjustable hanger bars, adjustable socket bracket and ideal push-in wire connectors for easy installation.
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

This 6 in. line-Voltage airtight aluminum housing is insulation contact rated. This housing is suitable for new construction in both residential and commercial applications. Features thermal protector guards, adjustable hanger bars, adjustable socket bracket and ideal push-in wire connectors for easy installation.
  • Suitable for new construction applications
  • Aluminum construction provides greater heat dissipation
  • Integral thermal protector guards against improper lamping and misuse of insulation materials
  • 7 in. height allows use in 2 in. x 8 in. joist construction
  • Airtight housing limits the exchange of air between ceiling plenum and heated/cooled area
  • Adjustable socket bracket assures proper and consistent lamp positioning
  • Housing adjusts from 1/2 in. to 1-1/2 in. to accommodate ceiling thickness
  • UL damp location rated
  • Protected by NICOR's 1 year limited warranty

Product Overview

This 6 in. line-Voltage airtight aluminum housing is insulation contact rated. This housing is suitable for new construction in both residential and commercial applications. Features thermal protector guards, adjustable hanger bars, adjustable socket bracket and ideal push-in wire connectors for easy installation.

  • Suitable for new construction applications
  • Aluminum construction provides greater heat dissipation
  • Integral thermal protector guards against improper lamping and misuse of insulation materials
  • 7 in. height allows use in 2 in. x 8 in. joist construction
  • Airtight housing limits the exchange of air between ceiling plenum and heated/cooled area
  • Adjustable socket bracket assures proper and consistent lamp positioning
  • Housing adjusts from 1/2 in. to 1-1/2 in. to accommodate ceiling thickness
  • UL damp location rated
  • Protected by NICOR's 1 year limited warranty

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.

Specifications

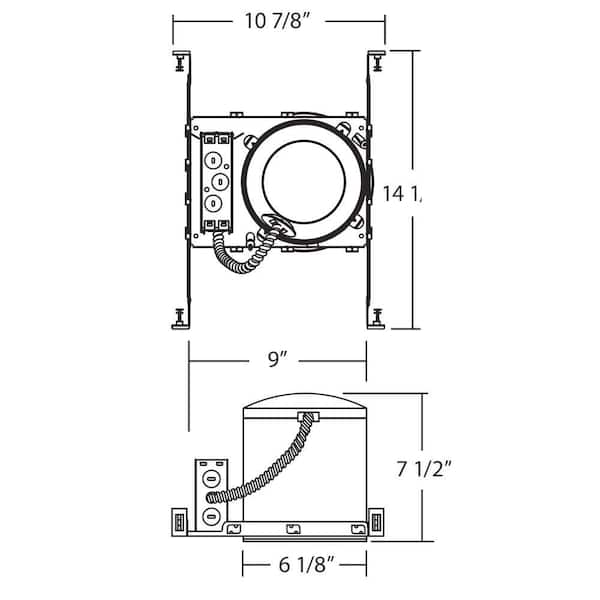

Dimensions

Aperture width (in.)
6.125
Housing depth (in.)
7.5
Product Depth (in.)
14.25
Product Height (in.)
7.5
Product Width (in.)
10.875
Size
6 in.

Details

Airtight
Yes
Insulation contact
Insulation contact
Light Bulb Base Code
Medium
Light Bulb Type Included
Incandescent
New Construction or Remodel
New Construction
Number of Housings Included
1
Package Quantity
1
Product Weight (lb.)
2.68lb
Reflector finish family
Aluminum
Returnable
90-Day

Warranty / Certifications

Certifications and Listings
1-UL Listed,cUL Listed
Manufacturer Warranty
1 Year Limited Warranty

Specifications

Dimensions

Aperture width (in.)
6.125
Housing depth (in.)
7.5
Product Depth (in.)
14.25
Product Height (in.)
7.5
Product Width (in.)
10.875
Size
6 in.

Details

Airtight
Yes
Insulation contact
Insulation contact
Light Bulb Base Code
Medium
Light Bulb Type Included
Incandescent
New Construction or Remodel
New Construction
Number of Housings Included
1
Package Quantity
1
Product Weight (lb.)
2.68lb
Reflector finish family
Aluminum
Returnable
90-Day

Warranty / Certifications

Certifications and Listings
1-UL Listed,cUL Listed
Manufacturer Warranty
1 Year Limited Warranty
