Model # 17003AR

Internet #205511721

null NICOR 6 in. Recessed IC Rated Airtight Housing
0767706002041

NICOR 6 in. Recessed IC Rated Airtight Housing

$1578 /each

Product Overview

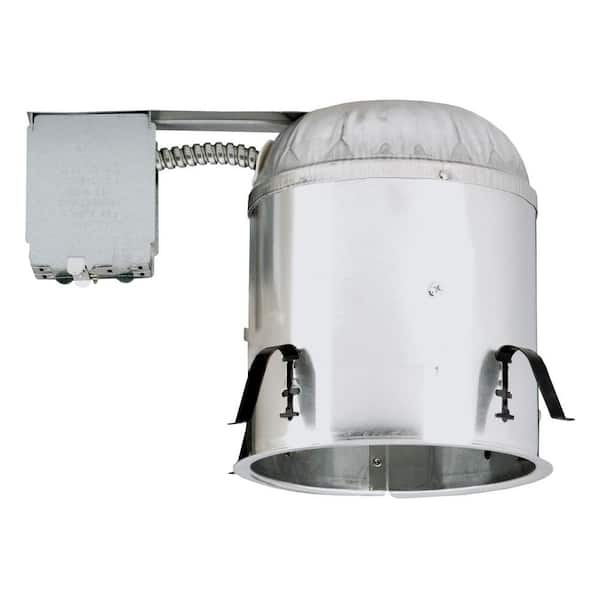

This 6 in. line-Voltage airtight aluminum housing is insulation contact rated. This housing is suitable for both new construction and remodel in both residential and commercial applications. Features thermal protector guards, adjustable socket bracket and ideal push-in wire connectors for easy installation.
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

This 6 in. line-Voltage airtight aluminum housing is insulation contact rated. This housing is suitable for both new construction and remodel in both residential and commercial applications. Features thermal protector guards, adjustable socket bracket and ideal push-in wire connectors for easy installation.
  • Suitable for existing construction and remodel applications
  • Aluminum construction provides greater heat dissipation
  • Integral thermal protector guards against improper lamping and misuse of insulation materials
  • 7 in. height allows use in 2 in. x 8 in. joist construction
  • Airtight housing limits the exchange of air between ceiling plenum and heated/cooled area
  • Adjustable socket bracket assures proper and consistent lamp positioning
  • Listed for through branch circuit wiring and includes several 3/4” knockouts
  • Supplied with 3 ideal push-in wire connectors
  • UL damp location rated
  • Protected by NICOR's 1 year limited warranty

Product Overview

This 6 in. line-Voltage airtight aluminum housing is insulation contact rated. This housing is suitable for both new construction and remodel in both residential and commercial applications. Features thermal protector guards, adjustable socket bracket and ideal push-in wire connectors for easy installation.

  • Suitable for existing construction and remodel applications
  • Aluminum construction provides greater heat dissipation
  • Integral thermal protector guards against improper lamping and misuse of insulation materials
  • 7 in. height allows use in 2 in. x 8 in. joist construction
  • Airtight housing limits the exchange of air between ceiling plenum and heated/cooled area
  • Adjustable socket bracket assures proper and consistent lamp positioning
  • Listed for through branch circuit wiring and includes several 3/4” knockouts
  • Supplied with 3 ideal push-in wire connectors
  • UL damp location rated
  • Protected by NICOR's 1 year limited warranty

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.

Specifications

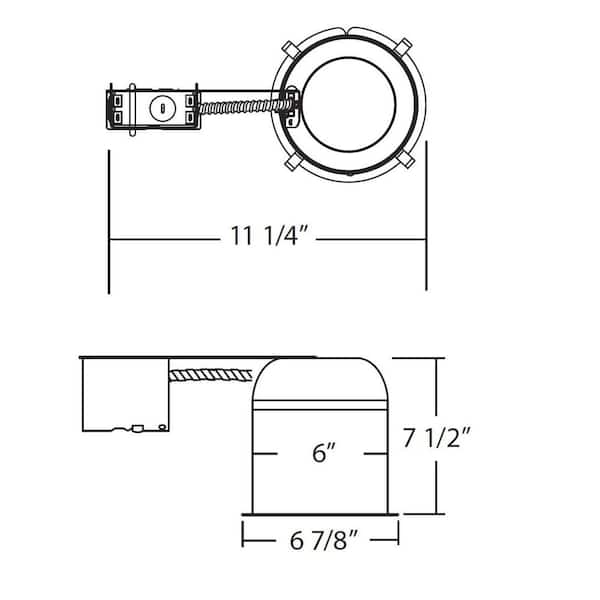

Dimensions

Aperture width (in.)
6
Housing depth (in.)
7.5
Product Depth (in.)
11.25
Product Height (in.)
7.5
Product Width (in.)
6.88
Size
6 in.

Details

Airtight
Yes
Insulation contact
Insulation contact
Light Bulb Base Code
Medium
Light Bulb Type Included
Incandescent
New Construction or Remodel
Remodel
Number of Housings Included
1
Package Quantity
1
Product Weight (lb.)
2.10lb
Reflector finish family
Aluminum
Returnable
90-Day

Warranty / Certifications

Certifications and Listings
1-UL Listed,cUL Listed
Manufacturer Warranty
1 Year Limited Warranty

Specifications

Dimensions

Aperture width (in.)
6
Housing depth (in.)
7.5
Product Depth (in.)
11.25
Product Height (in.)
7.5
Product Width (in.)
6.88
Size
6 in.

Details

Airtight
Yes
Insulation contact
Insulation contact
Light Bulb Base Code
Medium
Light Bulb Type Included
Incandescent
New Construction or Remodel
Remodel
Number of Housings Included
1
Package Quantity
1
Product Weight (lb.)
2.10lb
Reflector finish family
Aluminum
Returnable
90-Day

Warranty / Certifications

Certifications and Listings
1-UL Listed,cUL Listed
Manufacturer Warranty
1 Year Limited Warranty
