Model # QTXN110HFLT

Internet #202357167

Store SO SKU #1000406085

NuTone QTXN Series Very Quiet 110 CFM Ceiling Exhaust Fan with Heater, Light Nightlight
0026715187980

NuTone

QTXN Series Very Quiet 110 CFM Ceiling Exhaust Fan with Heater, Light Nightlight

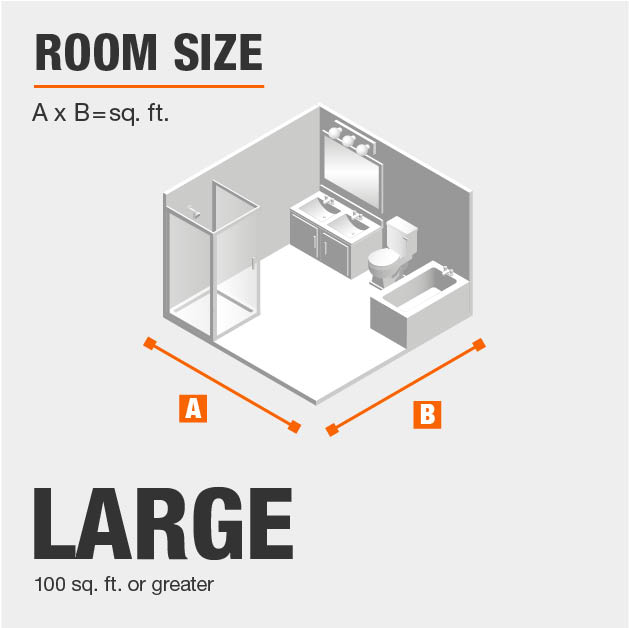

  • For use in rooms up to 100 sq. ft.
  • White finish fits most decors
  • Galvanized steel housing stands up to moisture
$255.27 /each

Frequently Bought Together

Product Overview

Use the NuTone QTXN Series Very Quiet 110 CFM Ceiling Exhaust Fan with Light and Heater in rooms up to 100 sq. ft. The motor operates at a very quiet 0.9 sones. For light, two 18-watt fluorescent bulbs are included for primary light, and a 7-watt bulb (not included) should be used for the nightlight. A 1,500-watt heater offers up to 100 sq. ft. of heat. The fan is UL listed, and designed for use in insulated ceilings. A dedicated 20-amp circuit is required for this ventilation fan/heater/light/night-light product. Can be used with Broan-NuTone wall switch (purchase separately) 57W, 57V, 59V, 59W, 61V, 61W, 62V, 62W, 65V, 66V, 66W, 67V, 67W, 70TW, 71V, 72V, 72W, 77DV, 77DW, DH100W, T24H. Complete installation instructions are included with each unit.

  • Innovative grille design is the result of extensive research with designers and consumers
  • Rugged, 26-gauge galvanized steel housing stands up to moisture
  • 2 plug-in permanently lubricated motors operate independently for ventilation and heating
  • Polymeric, 6 in. round damper/duct connector with tapered sleeve and no metallic clatter for quiet operation
  • Adjustable mounting brackets span up to 24 in.
  • Can be installed in ceiling with up to a 12/12 pitch, ceilings 9 ft. high or less will provide maximum comfort
  • 110 CFM reduces moisture to help prevent mildew
  • Very quiet motor operates at 0.9 sones
  • Resilient anti-vibration mounts
  • Manages moisture in bathrooms up to 100 sq. ft.
  • Uses two 18-watt bulbs for primary lighting (included) and one 7-watt bulb (sold separately) for safe nighttime lighting
  • Quiet, high-output 1500-watt heater with exclusive, efficient PowerHeat design
  • U.L. listed and HVI-2100 certified for your safety and protection; UL listed for use over bathtubs and showers when used with GFCI branch circuit wiring
  • Multi-function wall switches sold separately
  • Requires a dedicated 20-amp circuit, do not mount this product in a wall
  • Note: product may vary by store

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.

Compare Similar

Price
$212.90 /each
$255.27 /each
$291.27 /each
$303.28 /each
Name QTX Series Very Quiet 110 CFM Ceiling Exhaust Bath Fan with Light and Heater QTXN Series Very Quiet 110 CFM Ceiling Exhaust Fan with Heater, Light Nightlight 70 CFM Ceiling Exhaust Fan with Light and Heater QTX Series Very Quiet 110 CFM Ceiling Exhaust Fan with Incandescent Light and Heater
Brand Broan NuTone
Ratings (26) (20) (71) (36)
Maximum Room Size (ft sq) 100 100 60 100
Bath Fan Features Heater,Light,Nightlight Heater,Light,Nightlight Heater,Light,Light,Nightlight Heater,Light,Nightlight
Fan Sound Level (Sones) 0.9 0.9 3.5 0.9
Housing Width (in.) 11.375 11.325 13.25 11.375
Ceiling or Wall Installation Ceiling Ceiling Ceiling Ceiling
Housing Length (in.) 17.625 17.625 13.25 17.625
Air Volume (CFM) 110 110 70 110
View Product View Product View Product View Product

Specifications

Dimensions

Details

Warranty / Certifications

More Products With These Features

Search

Customer Questions & Answers

23 Questions34 Answers

Customer Questions & Answers

QTXN Series Very Quiet 110 CFM Ceiling Exhaust Fan with Heater, Light Nightlight
QTXN Series Very Quiet 110 CFM Ceiling Exhaust Fan with Heater, Light Nightlight

Ask your questions. Share your answers.



Clear Search Term


Sort By:

2 answers

mount over shower

This question is from QTXN Series Very Quiet 110 CFM Ceiling Exhaust Fan with Heater, Light Nightlight
Asked by
Rockford Mi
Read all my Q&A
September 27, 2015
can this be mounted over a shower in the shower stall
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers (2)

Asked by
Read all my Q&A
December 21, 2015
Answer:
It specifically states it is safe for use over shower or tub?
Why are you answering no?
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

September 28, 2015
Answer:
Thank you for your installation question. Units that have a heater are not U.L. approved for inside the tub/shower enclosure. This unit can not be over the shower stall, it must be outside. Be sure to check your local codes. Thank you.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

2 answers

Can I use LED bulbs instead of flourescent?

This question is from QTXN Series Very Quiet 110 CFM Ceiling Exhaust Fan with Heater, Light Nightlight
Asked by
Corvallis, OR
Read all my Q&A
November 28, 2014
Hi, I'm wondering if I can use LED bulbs instead of flourescents?
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers (2)

December 9, 2014
Answer:
This fan is UL listed for fluorescent lights only. It has not been approved for LED lighting.
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0

Asked by
Orange,Calfornia
Read all my Q&A
Home Improvement Profile: Professional
November 29, 2014
Answer:
Hey lakelouise,
It is possible to upgrade the main light bulb in this exhaust fan with an LED.
The key is to make sure it has a GU-24 base, as this bulb does NOT have a standard screw-in socket (E26) base.
An online-only version (a GU-24 base LED bulb isn't sold at our stores as of this writing) is linked Read More
Hey lakelouise,
It is possible to upgrade the main light bulb in this exhaust fan with an LED.
The key is to make sure it has a GU-24 base, as this bulb does NOT have a standard screw-in socket (E26) base.
An online-only version (a GU-24 base LED bulb isn't sold at our stores as of this writing) is linked below:
http://www.homedepot.com/p/Definity-60W-Equivalent-Bright-White-2700K-A19-GU24-Base-LED-Light-Bulb-DFN-A19-W27-V2-120-GU24/205153609?N=5yc1vZbm79Z1z0uw7g
Joseph Read Less
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0

2 answers

This looks like the unit I need. Can you recommend a timer and a freeze control thermostat that I could hook it up with?

This question is from QTXN Series Very Quiet 110 CFM Ceiling Exhaust Fan with Heater, Light Nightlight
Asked by
Read all my Q&A
August 6, 2014
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers (2)

August 7, 2014
Answer:
Hi, Stan. My sincere apology . . . I must correct the original answer. Here is the correct answer.
Thank you for your question about switches for the QTXN110HFLT. You can definitely use a timer. We offer a 60-minute and a 15-minute along with separate on/off controls that fits a two-gang outlet box. We would not suggest the thermostat on this unit. This heater is designed to be used while you’re in the
Read More
Hi, Stan. My sincere apology . . . I must correct the original answer. Here is the correct answer.
Thank you for your question about switches for the QTXN110HFLT. You can definitely use a timer. We offer a 60-minute and a 15-minute along with separate on/off controls that fits a two-gang outlet box. We would not suggest the thermostat on this unit. This heater is designed to be used while you’re in the room. It is not a primary heat source that can be used for continuous operation. If you have further questions about the thermostat or the switches we offer, call out Technical Support Department at 888-336-6151. Thanks, again.
Read Less
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

August 7, 2014
Answer:
Hi, Stan. Thank you for your question about the WS130WW Allure Range Hood. This unit is hard wired. While it has a type of plug on the motor, it must be hard wired. If you scroll down on the page you will find the Installation Instructions and see that it must be connected to house wire. If you have any additional installation questions, just dial 888-336-6151 and our Technical Support Department will be Read More
Hi, Stan. Thank you for your question about the WS130WW Allure Range Hood. This unit is hard wired. While it has a type of plug on the motor, it must be hard wired. If you scroll down on the page you will find the Installation Instructions and see that it must be connected to house wire. If you have any additional installation questions, just dial 888-336-6151 and our Technical Support Department will be able to assist. Thanks, again. Read Less
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

2 answers

Does this unit require its own, specified breaker?

This question is from QTXN Series Very Quiet 110 CFM Ceiling Exhaust Fan with Heater, Light Nightlight
Asked by
Wellston, Ohio
Read all my Q&A
December 9, 2013
i read on line that this product requires its own 20 amp breaker. Is this so? I do not see any reference to that information in the specifications.
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers (2)

Asked by
Wisconsin, USA
Read all my Q&A
December 11, 2013
Answer:
Yes it does require it's own 20 amp breaker because of the power draw of the heating unit. Most existing heating fan units are already on their own circuit. You will just need to make sure that it's a 20 amp breaker and not a 15 amp breaker.
+2points
2out of 2found this answer helpful.
Was this helpful?helpful2unhelpful0

December 10, 2013
Answer:
Thank you for your question about the QTXN110HFLT. When we enter information onto the Home Depot site, we try to be as thorough as possible. This unit includes a heater. A heater will draw more AMPs. It does require a dedicated 20 AMP circuit. IF you scroll down on the page to Info & Guides, pull up the Installation Instructions. It’s is clearly stated on the first page. If you have further questions, Read More
Thank you for your question about the QTXN110HFLT. When we enter information onto the Home Depot site, we try to be as thorough as possible. This unit includes a heater. A heater will draw more AMPs. It does require a dedicated 20 AMP circuit. IF you scroll down on the page to Info & Guides, pull up the Installation Instructions. It’s is clearly stated on the first page. If you have further questions, please contact our Technical Service Department at 888-336-6151. Thanks, again. Read Less
+2points
2out of 2found this answer helpful.
Was this helpful?helpful2unhelpful0
2 »
  • 2016-10-30 T23:44:50.394-05:00
  • bvseo_lps, prod_bvqa, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasquestionsanswers
  • loc_en_US, sid_202357167, prod, sort_default
2 »
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 38ms
  • QUESTIONS, PRODUCT

Customer Reviews

QTXN Series Very Quiet 110 CFM Ceiling Exhaust Fan with Heater, Light Nightlight is rated 4.2 out of 5 by 20.
Rated 2 out of 5 by from Trouble with the heater The fan works really well and it's relatively quiet. The problem I have is with the heater. I've had to replace it once already. Since it was still under warranty, the company sent me a new one free of charge. Now, the heater has gone out again and it's out of warranty. I really don't run the heater very much at all, so this is very disappointing.
Date published: 2016-11-12
Rated 5 out of 5 by from Works exactly as expected. The exhaust fan is quiet for a fan of this capacity. Heater and lights... Works exactly as expected. The exhaust fan is quiet for a fan of this capacity. Heater and lights work well.
Date published: 2016-11-08
Rated 5 out of 5 by from Ultrasilent Ventilation Fan Review 2011 We should have installed this product sooner, very quiet fan operation, the heater element is just right for room warming, and the lighting options are perfect for our bathroom. Immediately noticed that moisture was no longer present on bathroom mirrors, the ultra-quiet operation of the ventilator fan removed our previous "noisy" fan sounds completely. Overall this was the right product for our home, we installed one in each bathroom, and it was the right choice.
Date published: 2011-05-01
Rated 5 out of 5 by from Super Value with very usable features Installation - Very easy to install, 2- people will make the job easier. Power - Make sure you pull in the dedicated 20 amp power for this unit. this will require installing the proper line for the new higher amp power needed to operate this unit Switch - Don't forget to purchase the speical Nutone 4-function switch, (D77/DW77), it is a MUST. This will make this unit very flexible to use. Wiring - If you pay attention to the schematic, this will make wiring this unit a snap. HINT: label/tag the wire to make it easier to remember which line will power which function. Lights - Light bulb uses non-standard pin connectors, otherwise, very usable light source. Heater - VERY good heater, heats room up very quickly. Vent - Super quiet fan, almost too quiet, 0.9 sones, (compared to our older unit, 2.5 sones+), This unit moves a lot of air, you can even feel the air being drawn into the bath from under the door. Clears the bath of steam & odors very quickly. This will certainly help minimize any issues with mold. Recommendation - I would highly recommend this product!!!
Date published: 2011-11-18
Rated 5 out of 5 by from Overall great product with great features Great product for the money. This unit replaced a tired Nutone light/fan combo that was 25 years old and what a difference it made. This is so much quieter, efficient, and also has the heater that the wife loves. The 6 " fan really removes the steam and moisture and the nightlight is a nice feature to have in the middle of the night! I highly recommend this unit for a new construction or a remodel job as it is not to much bigger that most do the older style fan/light combo units.
Date published: 2013-02-20
Rated 4 out of 5 by from Quite and powerful Installed in place of an old unit that made lots of noise when running. This unit has very good lights, heater is quite and throws the heat all the way down to the floor with 9 foot ceilings. The vent is also very quite. Had to cut a larger hole in the ceiling to make it fit and run new exhaust line, but not a big problem. The only major problem was the damper for the vent. It was defective and had to get another sent. The design is not the best either and I am concerned about it lasting over the long term. It should be stronger.
Date published: 2013-09-26
Rated 4 out of 5 by from Great Product...Installation Not Easy This is a great product. It looks great. Works exactly as advertised. Quite fan, great heat, nice lighting. The physical installation of the product provides a few challenges. It was larger than the unit it was replacing, so cutting out the ceiling and re-installing to joists was challenging, but not too bad. Product instructions tell you to install a 6 inch exhaust vent line for quiet operation. I used a 6" to 4" adapter and ran it through my existing 4" line with no problems and no increase in noise. My BIGGEST problem with the installation was the re-wiring. The instructions are less than clear. I was replacing an old Nutone heat/fan/light/nitelight unit that was wired to 4 wall switches. NOWHERE IN THE INSTRUCTIONS DID NUTONE TELL YOU THAT THE NEW UNIT MUST BE WIRED TO THE NUTONE 4-FUNCTION WALL SWITCH IN ORDER TO OPERATE. After a number of attempts to wire the unit to the four existing wall switches, I gave up. After a little online research, I discovered that you had to use their 4-Function switch. Once I re-wired it with their switch it worked perfectly. They could have saved me a lot of time, by clearly stating that their 4-Function switch must be used. Overall it's a great high-end product.
Date published: 2013-12-11
Rated 4 out of 5 by from Works well for a great price A Home Depot recommend electrician installed the exhaust fan and the finished product looks great. I like the light in this unit. The unit a lot quieter than the previous unit. I haven't use the heater that much yet, but it works. I will have a better idea in winter when it is a lot colder. For some reason the specifications on this unit were better than a similar Nutone model that cost a lot more. Win for me! Overall I very satisfied with this unit.
Date published: 2014-07-29
