Model # TS14HRALUM

Internet #205104994

ODL 14 in. Aluminum Flashing Tubular Skylight for Asphalt Shingle, Flat or Torch Down Roof
0089023957706

Discontinued ODL

14 in. Aluminum Flashing Tubular Skylight for Asphalt Shingle, Flat or Torch Down Roof

store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

The ODL 14 in. tubular skylight with aluminum flashing kit is designed for installation on an asphalt-shingle, flat or torch down roofs pitched from 0 degrees to 45 degrees. The light channeled into the room below is enough to light up a room of up to 300 sq. ft. The skylight is Energy Star-Qualified for all 4 zones in the United States and helps you save energy.
  • Brings in natural light and saves energy
  • Acrylic dome skylight mounts on the roof, while rigid tunnel guides light into the room
  • Harnesses at least 25% more light than our standard model TS14ALUME
  • May be installed on asphalt-shingle, flat or torch down roofs with a slope from Flat to 12:12

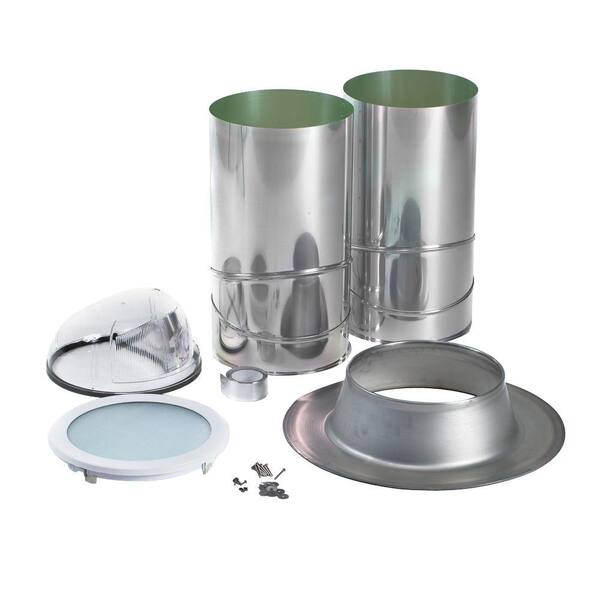

  • Total installation length is 48 in. of highly reflective tubing, the kit includes: 2 adjustable elbows, aluminum flashing, acrylic dome with patented optics and dual lens diffuser ceiling kit for simple installation
  • 98% Reflective

Product Overview

The ODL 14 in. tubular skylight with aluminum flashing kit is designed for installation on an asphalt-shingle, flat or torch down roofs pitched from 0 degrees to 45 degrees. The light channeled into the room below is enough to light up a room of up to 300 sq. ft. The skylight is Energy Star-Qualified for all 4 zones in the United States and helps you save energy.

  • Brings in natural light and saves energy
  • Acrylic dome skylight mounts on the roof, while rigid tunnel guides light into the room
  • Harnesses at least 25% more light than our standard model TS14ALUME
  • May be installed on asphalt-shingle, flat or torch down roofs with a slope from Flat to 12:12
  • Total installation length is 48 in. of highly reflective tubing, the kit includes: 2 adjustable elbows, aluminum flashing, acrylic dome with patented optics and dual lens diffuser ceiling kit for simple installation
  • 98% Reflective

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.

Specifications

Dimensions

Daylight area (sq. ft.)
300
Product Depth (in.)
14.5
Product Height (in.)
48
Product Width (in.)
14.5
Rough Opening Height (In.)
48
Rough Opening Width (In.)
14

Details

Color Family
Metallic
Flashing Included
Yes
Hardware Included
Yes
Low-E (Y,N)
No
Material
Acrylic
Maximum roof pitch (degrees)
45
Minimum roof pitch (degrees)
0
Product Weight (lb.)
18lb
Returnable
90-Day
Severe weather ready
No
Skylight Mounting Type
Self Flashed
Tunnel type
Rigid
UV protection (%)
99

Warranty / Certifications

Energy Star Qualified
North-Central,Northern,South-Central,Southern

Specifications

Dimensions

Daylight area (sq. ft.)
300
Product Depth (in.)
14.5
Product Height (in.)
48
Product Width (in.)
14.5
Rough Opening Height (In.)
48
Rough Opening Width (In.)
14

Details

Color Family
Metallic
Flashing Included
Yes
Hardware Included
Yes
Low-E (Y,N)
No
Material
Acrylic
Maximum roof pitch (degrees)
45
Minimum roof pitch (degrees)
0
Product Weight (lb.)
18lb
Returnable
90-Day
Severe weather ready
No
Skylight Mounting Type
Self Flashed
Tunnel type
Rigid
UV protection (%)
99

Warranty / Certifications

Energy Star Qualified
North-Central,Northern,South-Central,Southern
