0885170005617

Panasonic

Model # FV-11VQ5

Internet # 203762022

WhisperCeiling 110 CFM Ceiling Exhaust Bath Fan, ENERGY STAR*

$110.11 /each
  • Thermal fuse protection
  • Rustproof paint treatment on galvanized housing
  • Built-in damper to prevent backdraft

FREQUENTLY BOUGHT TOGETHER

PRODUCT OVERVIEW

Model # FV-11VQ5

Internet # 203762022

WhisperCeiling ENERGY STAR rated exhaust fans are super quiet, energy efficient and easy to install. All models also meet ASHRAE 62.2, the ventilation standard required by LEED for Homes, CA Title 24 and other green building standards. A low operating temperature promotes improved performance and longer life. A rust-proof paint coat will keep it looking clean and new.

  • New dual adaptor for 4 in. or 6 in. ducts
  • Superior performance and quiet operation at 1/4 in. of water gauge
  • Totally enclosed condenser motor for long life—rated for 30,000 hours continuous run
  • Easy installation (double hanger bar system)
  • UL listed for tub/shower enclosure when used with a GFCI branch circuit wire
  • ASHRAE 62.2, LEED for homes, ENERGY STAR IAP, CA Title24, EarthCraft and WA ventilation code compliant

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.

SPECIFICATIONS

Dimensions
Housing Length (in.)
10.25
Housing Width (in.)
10.25

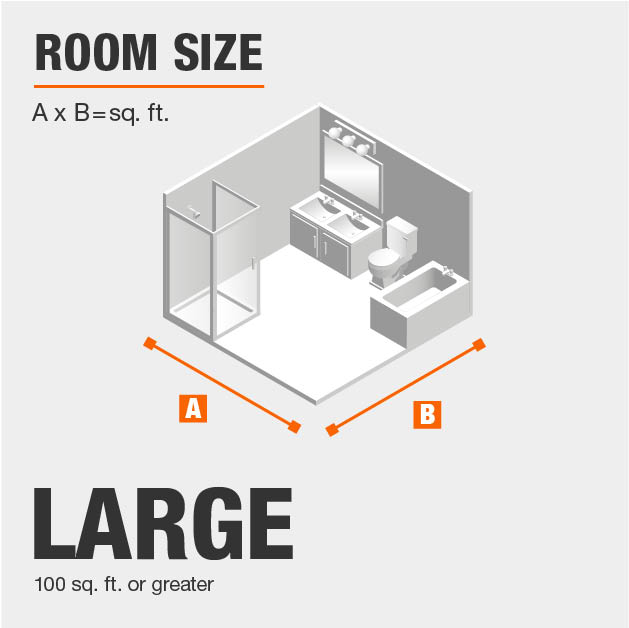

Maximum Room Size (ft sq)
110
Product Height (in.)
8.37
Product Length (in.)
13
Product Width (in.)
13
Details
Air Volume (CFM)
110
Ceiling or Wall Installation
Ceiling
Color Family
White
Fan Sound Level (Sones)
0.3
Housing Material
Galvanized Steel
Mounting Style
Surface Mount
Product Weight (lb.)
10.36 lb
Returnable
90-Day
Warranty / Certifications
Certifications and Listings
1-UL Listed,CSA Certified,HVI Certified
ENERGY STAR Certified
Yes
Manufacturer Warranty
3 year warranty

MORE PRODUCTS WITH THESE FEATURES

Brand: Panasonic
Housing Width (in.): 10.25
Housing Length (in.): 10.25
Maximum Room Size (ft sq): 100 - 150
Price: $100 - $150
Ceiling or Wall Installation: Ceiling
Review Rating: 4 & Up
Search
23 Questions21 Answers

Customer Questions & Answers

WhisperCeiling 110 CFM Ceiling Exhaust Bath Fan, ENERGY STAR*
WhisperCeiling 110 CFM Ceiling Exhaust Bath Fan, ENERGY STAR*

Ask your questions. Share your answers.



Clear Search Term


Sort By:

3 answers

exhaust output

This question is from WhisperCeiling 110 CFM Ceiling Exhaust Bath Fan, ENERGY STAR*
Asked by
long Island, New York
Read all my Q&A
October 11, 2015
Does this unit need to have an exhaust pipe up and out of the roof or can it just exhaust into the attic?
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers (3)

Asked by
Lawrenceville, Georgia
Read all my Q&A
Home Improvement Profile: DIYer
October 23, 2015
Answer:
I just had ours installed last week and it exhausts into the attic. I am a DIYer. But my husband is a master electrician.
-12points
0out of 12found this answer helpful.
Was this helpful?helpful0unhelpful12

Asked by
Rego Park, NY
Read all my Q&A
Home Improvement Profile: DIYer
October 16, 2015
Answer:
The worse thing you can do is vent extremely moist bathroom air into the attic. Moisture will breed mold and mildew which is why you should strive to run ducting and vent directly outside of home
+10points
10out of 10found this answer helpful.
Was this helpful?helpful10unhelpful0

Asked by
Appleton WI
Read all my Q&A
Home Improvement Profile: DIYer
October 12, 2015
Answer:
NEVER exhaust into the attic. We discovered the hard way after a low-bid contractor did that in our home. Living in Wisconsin, the moisture soaked the blown in insulation and ruined the ceiling drywall. Once it is installed, venting out the back wall of the attic was a simple task. In the winter you can see just how much moisture exits. Save yourself big bucks - don't take a short cut thinking the attic Read More
NEVER exhaust into the attic. We discovered the hard way after a low-bid contractor did that in our home. Living in Wisconsin, the moisture soaked the blown in insulation and ruined the ceiling drywall. Once it is installed, venting out the back wall of the attic was a simple task. In the winter you can see just how much moisture exits. Save yourself big bucks - don't take a short cut thinking the attic will dissipate the moisture. Read Less
+9points
9out of 9found this answer helpful.
Was this helpful?helpful9unhelpful0

3 answers

Can it be installed in a wall?

This question is from WhisperCeiling 110 CFM Ceiling Exhaust Bath Fan, ENERGY STAR*
Asked by
Pierce co WA
Read all my Q&A
September 6, 2015
I have a high ceiling bath, and would like to install this in the end wall of the shower about 8ft above the floor, with a 4" duct running through a 2ft wide linen closet and out the side wall of the house to a 4" dryer vent. Will it work OK mounted on its side in a side wall?
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers (3)

Asked by
Rego Park, NY
Read all my Q&A
Home Improvement Profile: DIYer
October 20, 2015
Answer:
No recommended to install in a wall since it will place stress laterally on the motor shaft. This fan is meant for ceiling installation
+3points
3out of 3found this answer helpful.
Was this helpful?helpful3unhelpful0

Asked by
Wisconsin
Read all my Q&A
Home Improvement Profile: Other
September 15, 2015
Answer:
Yes if you have the space. Most walls are 3.5" or 5.5" The motor doesn't know if it's sideways and there is no overhung load on the bearing to speak of. So I say yes you can.
-2points
2out of 6found this answer helpful.
Was this helpful?helpful2unhelpful4

September 9, 2015
Answer:
This is meant for installation in a ceiling and not in a wall.
0points
2out of 4found this answer helpful.
Was this helpful?helpful2unhelpful2

2 answers

What is Built-in damper to prevent backdraft?

This question is from WhisperCeiling 110 CFM Ceiling Exhaust Bath Fan, ENERGY STAR*
Asked by
NC
Read all my Q&A
December 15, 2015
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers (2)

Asked by
Spokane, WA
Read all my Q&A
Home Improvement Profile: DIYer
March 1, 2016
Answer:
Where air leaves the fan, there's a light weight, plastic flap that opens when air pressure is present (when the fan is on), and closes when the fan is off to prevent air from outside the home blowing back through the fan into your room. Works the same way as most dryer vents where they leave the home.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

December 16, 2015
Answer:
Yes, it is.
This Panasonic fan has a built-in damper to prevent backdraft, which helps to prevent outside air from coming through the fan. Also, thanks to our efficient, cool running motors and fluorescent bulbs, it does not create excessive heat-a common problem with recessed lighting fixtures and some competitors' fan/light combinations. Loose fill or batt insulation can be placed directly over the fan
Read More
Yes, it is.
This Panasonic fan has a built-in damper to prevent backdraft, which helps to prevent outside air from coming through the fan. Also, thanks to our efficient, cool running motors and fluorescent bulbs, it does not create excessive heat-a common problem with recessed lighting fixtures and some competitors' fan/light combinations. Loose fill or batt insulation can be placed directly over the fan housing to prevent heat from escaping.
Read Less
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0

2 answers

Will this fit in a ceiling with 6inch joists and 16 inches on center

This question is from WhisperCeiling 110 CFM Ceiling Exhaust Bath Fan, ENERGY STAR*
Asked by
Dearborn mi.
Read all my Q&A
September 25, 2015
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers (2)

Asked by
Seattle WA
Read all my Q&A
Home Improvement Profile: Professional
October 1, 2015
Answer:
No, the housing is too tall.
+3points
3out of 3found this answer helpful.
Was this helpful?helpful3unhelpful0

Asked by
Rego Park, NY
Read all my Q&A
Home Improvement Profile: DIYer
September 26, 2015
Answer:
6-inch joists might be too tight however the 16-inches on center are perfect. Me, I have larger joists with 16-inches OC
User submitted photo
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0
2 »
  • 2016-05-24 T13:23:42.216-05:00
  • bvseo_lps, prod_bvqa, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasquestionsanswers
  • loc_en_US, sid_203762022, prod, sort_default
2 »
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 165ms
  • QUESTIONS, PRODUCT

CUSTOMER REVIEWS

Rated 4.6 out of 5 by 45 reviewers.
Rated 5.0 out of 5.0 by Awsome Super quiet! Easy installation the Color blends and very efficient May 17, 2016
Rated 5.0 out of 5.0 by Truly a whisper This fan is true to its name. It is so quiet that we sometimes forgot it is running. That was one of the main criteria for our choice. The original fans installed by the contractor were low in capacity and very noisy, so we hated using them. We oversized these a little so the humidity is cleared quickly. But the low noise is the best feature. They were easy to install, clearly well-made. Maybe a little on the expensive side but well worth the extra cost. May 10, 2016
Rated 5.0 out of 5.0 by Quieter than expected! Purchased to replace standard 8x8 bathroom exhaust fan. Definitely will be doing the other bath very soon. Had to enlarge existing hole by 2.25" on 2 sides. Separated the metal exhaust / electrical housing unit from black box. Placed metal piece in new hole first, then slid in the box. YOU DEFINITELY NEED AN EXTRA SET OF HANDS (one in the attic, one to hold fan in place)....IT WILL HELP!!! Once back in the attic, I clipped both pieces back together and re-installed ground screw from the bathroom side. (THERE WAS A LOT OF UP AND DOWN THE LADDER TODAY...LOL). Secured brackets & extensions to studs / 2x4's. Wired up the electrical box, installed (dryer) exhaust tubing, double checked everything then flipped the breaker then the switch. PERFECT....Much quieter than your standard exhaust fan. Bathroom is 8'x5' (40 sq ft) and it's recommended for rooms up to 110 sq ft (roughly 10.5 x 10.5). The bathroom never got steamy even with a very hot shower. Although the bathroom door was closed & steam was still on the mirror after the shower, it gone within 2-4 minutes. A MUST PURCHASE TO REPLACE STANDARD EXHAUST BOX FANS. December 10, 2015
Rated 1.0 out of 5.0 by Not as quiet as a 2 sone model... I'm extremely disapointed with the sound level. Altho it's not noisy or obnoxious, it's also not as quiet as the 80cfm model just installed in my rental that is rated at 2 sones. My first reaction to it is....I don't like it! April 10, 2016
Rated 5.0 out of 5.0 by super quiet This fan was very easy to install and wire. It is super quiet and looks great. April 19, 2016
Rated 5.0 out of 5.0 by Meets Every Expectation The fan is indeed quiet as you'll see in all other reviews. Certainly worth the few extra dollars over fans available in store. Online purchase and delivery had no hitches. Connected the fan with a Lutron timer (also from HD) to ensure the fan isn't left on. The next step up was the same Panasonic fan with humidity and motion sensor (unavailable through HD), but the cost of those particular bells & whistles was exorbitant (hence my value rating on this product as excellent). I'm a DIYer. Installed in finished bathroom (with access to the attic above), and bent the ends of all four hanger clips (that usually connect under the truss) to enable the fan to rest directly on the drywall. Connected the 4" vent pipe (purchased separately) to the fan with metal tape. Pleased with the install and the product. March 1, 2016
Rated 5.0 out of 5.0 by Whisper Quite Exhaust Fan Very quite exhaust fan - so quite you have to listen for it. Does a great job of pulling out the moist air. Very glad I purchased it. April 6, 2016
Rated 5.0 out of 5.0 by Remarkable quality, performance, design and engineering. Truly "Whisper" quiet. Have purchased and installed 2 Panasonic FV-11VQ5 Bath Exhaust Fans to replace existing fans and have 3 more still to do, which will be nothing but Panasonic fans, just not decided which models yet. These may cost slightly more than comparable CFM competitor's fans but well worth the money! The quality deign and solid construction is impressive. Panasonic seems to defy the norm these days by producing a product that is well thought out and superior in design, assembly and performance. For example, in the past when I installed other brands of fans I typically spent 20-30 minutes just sealing the housing to make it airtight. Panasonic was not only airtight out of the box but a much heavier gauge metal housing, far stronger and better designed mounting brackets, installation instructions that actually made sense, the grill is easy to "clip" in place and pulls itself up snug to the ceiling and most importantly this fan really moves some air and does it so quietly and efficiently it's nothing short of amazing!! In the future when I need to install a bath exhaust fan for personal or for a customer it will be a Panasonic, PERIOD. It is truly refreshing in a time when it seems products of all types are manufactured cheaper, lighter, less durable and so poorly designed to find a company like Panasonic who produces a product that has been well thought through and actually performs as promised. I have ZERO disappointments in this product. April 10, 2016
