Model # 37GWX

Internet #203013146

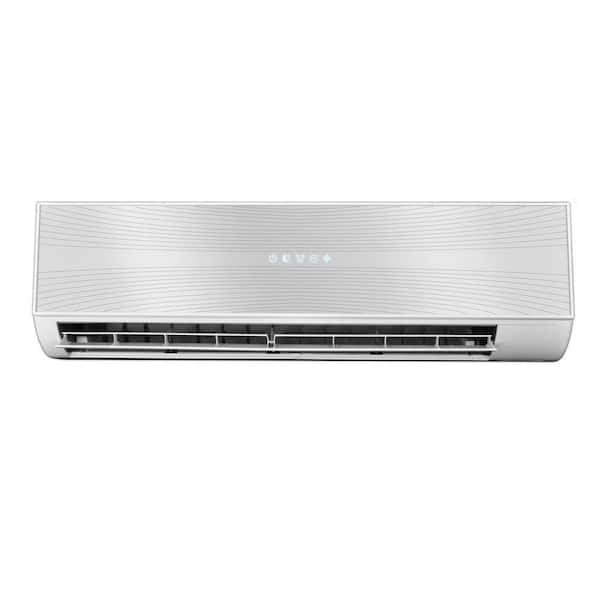

Ramsond 12,000 BTU 1+ Ton Ductless Mini Split Air Conditioner and Heat Pump - 220-Volt/60Hz
0898854002239

Ramsond

12,000 BTU 1+ Ton Ductless Mini Split Air Conditioner and Heat Pump - 220-Volt/60Hz

  • No ductwork for this system, can be installed virtually anywhere
  • Product sold without installation or permitting
  • Equipment should be sized/installed by a qualified professional
$122074 /set
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

No Ductwork? No Problem. Ramsond Ductless (Duct-Free) Mini Split Air Conditioning Systems can be installed in virtually any location. Ductless Mini Split Air Conditioners are also referred to as Zone Systems. They cool/heat the zone or areas in which they are installed. When the zone is in use, the mini split system can be turned on. When the zone is not in use, you can simply turn it off. This zone capability allows for substantial energy savings. Ramsond Heat Pump systems not only provide cooling during the hot summer months, but also provide efficient heating for the winter. They are far more efficient and substantially more economical compared to conventional central air conditioning systems. Ductless Mini Split systems are comprised of two main components: 1) The outdoor unit (Condensing Unit) and 2) The indoor unit (Evaporator Unit). The installation is simple. The indoor unit hangs on a metal bracket (supplied) that attaches to the interior wall, much like a picture frame. A 3 in. hole is then drilled through the wall. The Line set and communication wires are passed through this hole and connect the indoor and outdoor unit together. The Main power is supplied to the outdoor unit. The indoor unit draws its power from the outdoor unit. The system is operated by a wireless remote control (supplied). Simply set the remote control to the desired temperature and the system maintains the desired temperature.

  • Capacity: 12,000 BTU (1 ton) cooling 12,000 BTU (1 ton) heating (heat pump)
  • Power requirements: 220-Volt/60Hz, single phase powered from the outdoor unit
  • Area coverage: up to 540 sq. ft.
  • Functions: cooling, independent dehumidification and heating (heat pump)
  • Efficiency rating: high efficiency (SEER 13.0)
  • Refrigerant: pre-charged with environmentally-friendly DuPont R410A refrigerant
  • Complete system: includes indoor unit, outdoor unit, complete installation kit, 25 ft. of insulated copper line set, remote control
  • Quiet operation: low noise, includes sleep function
  • Easy installation: includes installation kit; quick install system: pre-wired indoor unit (25 ft. cable) with quick connection; pre-flared and flanged insulated copper line set kit; quick install system cuts installation time in half
  • Features: indoor unit digital display of temperature (degree fahrenheit), functions and error messages; 3 fan speeds; auto-restart: in case of power outage, the system restarts automatically to previous settings; self-diagnostic system: in case of malfunction, the indoor unit display shows error message codes; 24 hour start/stop timer; multi-directional oscillating indoor unit louver
  • Multi-function digital wireless remote control with wall-mount cradle/holder
  • Corrosion resistant outdoor unit paint can withstand direct sunlight, rain, snow and harsh environments
  • Equipment should be sized, selected and installed by a qualified professional to ensure proper installation, function, safe operation, adherence to federal, state and local codes and for valid warranty; see installation guide and manufactures warranty statement for more details
  • Recommended for professional purchase
  • Which type of air conditioner is best for your home?
  • Find out more about installation:


  • Click here for more information on Electronic Recycling Programs

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.

Customers Also Compared These

Price
$1,077.16 /set
$1,220.74 /set
Was $1,399.00
$1,299.00 /each
Save $100.00 (7%)
$1,615.10 /set
Name 12,000 BTU 1+ Ton Ductless Mini Split Air Conditioner and Heat Pump - 110V/60Hz 12,000 BTU 1+ Ton Ductless Mini Split Air Conditioner and Heat Pump - 220-Volt/60Hz Energy Star 18,000 BTU 1.5 Ton Ductless Mini Split Air Conditioner and Heat Pump Variable Speed Inverter - 220V/60Hz 24,000 BTU 2 Ton Ductless Mini Split Air Conditioner and Heat Pump - 220V/60Hz
Brand Ramsond Ramsond DuctlessAire Ramsond
Ratings (47) (16) (23) (35)
View Product View Product View Product View Product

Specifications

Dimensions

Air handler depth (in.)
8.00
Air handler height (in.)
11.00
Air handler width (in.)
35.50
Compressor depth (in.)
10.25
Compressor height (in.)
21.75
Compressor width (in.)
30.00

Details

Air Conditioner Features
Automatic shutoff,Overload protection,Sleep setting,Timer
Air Conditioner Product Type
Mini Split Unit
Air direction/circulation
2-way
Air handler weight (lb.)
24
Amperage (amps)
4.6
BTU Cooling Rating
12000.000
BTU Heat Rating
12000.000
Color
White
Color Family
White
Compressor weight (lb.)
75
Coverage Area (sq. ft.)
540
Decibel (Sound) Rating
22 dBA
Decibel Rating
22 dBA
Filter Type
Reusable
Included
Heater,Remote Control,Self-diagnostic tools
Mount Location
Wall Mount
Number of Fan Speeds
3
Number of cool settings
17
Returnable
90-Day
Voltage (volts)
220
Zone Capacity
Single Zone

Warranty / Certifications

Certifications and Listings
CSA Listed,ETL Listed
Manufacturer Warranty
1 Year Replacement Parts Only. 5 Year Compressor Only. Labor Excluded.
Seasonal Energy Efficiency Ratio (SEER)
13

More Products With These Features

Search

Customer Questions & Answers

Is it comparable with the "Pebble" wireless wifi controller. ?

Asked by: Kim
No, this is not compatible with the Pebble wireless Wifi controller.
Answered by: CommunityAnswer
Date published: 2017-03-02

is there extension for line set

is there extension for line set
Asked by: Patrick
Thank you for your recent inquiry with The Home Depot, Patrick. An extension is not available. We appreciate your business and look forward to serving you in the future. Thank you for shopping Home Depot.
Answered by: THDSupport
Date published: 2017-02-16

The standard installation kit includes a 25 foot insulated copper line set and a 25 foot pre-wire...

The standard installation kit includes a 25 foot insulated copper line set and a 25 foot pre-wired set and I need 32 feet of each. How can I order these items longer than the standard lengths to meet the needs of my situation? Details please so I know whether or not to order your product.
Asked by: Chris
Hi Chris, I believe it would be best to reach out to the manufacturer, Ramsond for assistance. I have linked their website below with their contact information page so that you may receive the best details from their specialists. Hope this helps! We appreciate your business and look forward to serving you in the future. Thank you for shopping Home Depot! http://www.ramsond.com/contact/
Answered by: THDSupport
Date published: 2016-11-12

Does the system come precharged

Example: I have looked at the manual and can't figure out what I did wrong.
Asked by: Harry
Yes, it is pre-charged.
Answered by: CommunityAnswer
Date published: 2016-11-20
  • y_2017, m_8, d_18, h_3CST
  • bvseo_bulk, prod_bvqa, vn_bulk_1.0.0-hotfix-1
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_13
  • loc_, sid_203013146, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 17ms
  • QUESTIONS, PRODUCT

Customer Reviews

12,000 BTU 1+ Ton Ductless Mini Split Air Conditioner and Heat Pump - 220-Volt/60Hz is rated 3.8 out of 5 by 16.
Rated 5 out of 5 by from This unit runs very quietly and provides good coverage. I gave this unit a 4 star for quality as it runs quietly and efficiently. It wasnt as easy to install due to poor instructions and wiring diagrams. I had anticipated a possible problem with the condensation leakage but was told by an installer to be sure to place the tube on the bottom of all the wiring and insure the 2" cutout was cut at a downward angle with about a 1/2" drop. So far all drainage has worked properly. Had to have a licensed HVAC pull a vacuum on the unit to insure proper Freon. I would recommend this unit to anyone that is a do it your selfer but would also recommend a licensed HVAC to pull vac.
Date published: 2014-05-21
Rated 4 out of 5 by from Great product if only it didn't leak condensation into my home I installed this product in an efficiency apartment on my property to replace a window a/c and a ductless propane wall heater. Installation was easy... installed it myself in about 6 hours (I'm a retired contractor) and felt very comfortable that I had the perfect solution to my heat and air needs. It worked perfectly for about 2 months. Used both heat and air initially (installed in May of last year), then started using a/c only in June. About 2 months after the installation, I came home one day and noticed water had been dripping from the unit for quite some time. The floor and a nightstand below the unit were soaked from water dripping from the bottom of the unit! Checked the drain hose outside...no water coming out. I blew into the hose and felt resistance and water immediately began flowing again. Called tech support & got pretty much a run-around. The problem has persisted ever since. My solution has been to use a wet vac on the drain hose every time it starts dripping water inside the apt. which seems to correct the problem for a month or two. It only happens when I'm using the a/c since the condensation doesn't occur when in the heat mode, so I've resigned myself to the fact that I'll have to continue the wet vac solution every few weeks during the hot months. Seems like gunk accumulates in the drain pan and clogs the drain even though I religiously clean the filters every month. In other words, Ramsond needs to re-engineer the drain pan and either put a small pump to keep it cleaned out or make the pan and drain hole big enough to eliminate any debris that might accumulate there. Other than this ongoing maintenance problem, the unit seems to work very well... just be sure to install the indoor unit someplace where you can put a bucket underneath it while using it for a/c and invest in a wet vac to suck out the debris when it starts to leak.
Date published: 2012-05-25
Rated 5 out of 5 by from Good value for the money. So far i have tried it in both modes. Heat is great and also does keep the area comfortable when in cooling mode. Best feature is the dehumidification mode. Unit is quiet and efficient. Area in question is over 800 sq ft.
Date published: 2013-06-19
Rated 5 out of 5 by from Great System I got this unit to heat and cool my 16 x 20 garage. Installation was simple and took about 4 hours. Have not tried the Air conditioning yet, but the heat works great. So long space heater....
Date published: 2012-02-10
Rated 3 out of 5 by from Ran nicely after challenging install.despite claims to contrary Once installed, the unit ran quietly and effectively cooled the 450 sq ft space... but getting there was a challenge for the 2 engineers at every step in the 10-12 hr process. The instructions were poorly translated to English and required "reverse engineering" to figure out the intent of the designer. The bleeding instructions were ambiguous in spots and vague or incomplete in others. Something as simple as, "Once the two lines are connected, remove the access covers and using a hex wrench, completely open the valves. (A hissing sound would indicate the connection is not tight enough). Remove the remaining access cover on the lower valve to reveal the schrader valve. Pressing that valve for 1-2 seconds allows the trapped air to escape. About that time, cool refrigerant will escape, thereby signalling the trapped air is purged out of system. Replacing the access covers completes the process." would be clearer. Some annoying details: Inside mounting bracket on 16.5" centers; outside pedestal (bracket spacing) is 20". A 50 mm (2") hole is tight. The lengths of the copper lines coming out of the inside unit should have been made longer so as not to constrict the necessary tight bend coming out of the wall. In most cases, the 25' long line is too long and there is no way of coiling it out of sight and have it look neat. To reduce the length requires a flaring tool. (the US tool for 1/4" and 3/8" slipped a bit when flaring metric lines). Some mention about reducing the lengths would have been nice. No provision for attaching a shielded Romex (primary power) to unit. Instead a weather proof extension cord-like arrangement is used that requires a special clamp at the disconnect box. The plastic covers for the electrical and refrigerant connections are ill-fitting, fragile, and may not offer much protection in snow or heavy rain. (one of mine was cracked out of box.) In summary, I think the unit was rushed to the US market. More time could have been spent on instructions. I judge the primary power connection means to the unit to be marginal at best. Like I said in the beginning, once the unit was installed it seemed to do a respectable job of cooling the room. The unit was installed in a cabin which gets intermittent use. How it fares over long term is TBD. I will keep my fingers crossed.
Date published: 2012-05-31
Rated 4 out of 5 by from Very quiet, cools house very nicely This unit is very quiet and is cooling my living room and kitchen very nicely. The instructions need to be more detailed especially the electrical hookup. Found a good 24 photo step website that cleared up my electrical issue. strongly recommend hiring AC guy to vacuum system not expensive saves damage to compressor Will buy a unit next year for bedrooms.
Date published: 2013-07-04
Rated 1 out of 5 by from Not happy with AC system. MAY RETURN system! TERRIBLE INADEQUATE TINY instructions. Hard to read and follow for inexperienced person! No mounting pad came with it and tubing lines were FAR too long! Indoor Mounting bracket design was POOR and almost useless! Brick walls were not considered or addressed in instructions. I was in the heating and air conditioning trade for over 22 years and only my experience allowed me to make the installation work! NOT taking a photo of this disaster!
Date published: 2016-09-20
Rated 5 out of 5 by from Cool very well You do not need to be an HVAC tech to install this unit It comes with everything you need. Best price out there Unit work like a champ, cool my living room very well Just a quick FYI. The drain/condensation line needs to be clear all the way out. Don't let it make trap or anything like that since it needs air for the water to drip out. If you make a something like a water trap, the condensation will stay in the unit and later drain to you room. I had to drain mine some distance and figure it out. I added a t to get air and problem solved
Date published: 2014-04-08
