Model # PB20

Internet #202216492

Reliance Controls 20-Amp Power Inlet Box,
0851890000072

Reliance Controls

20-Amp Power Inlet Box,

$56.32 /each

Frequently Bought Together

Product Overview

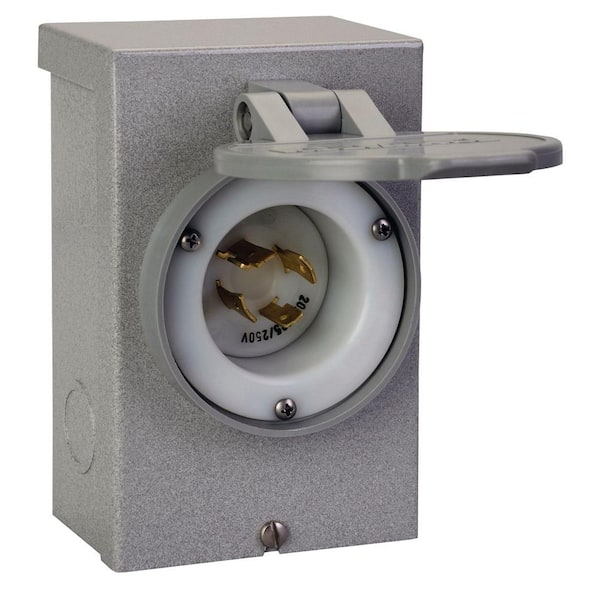

This 20 Amp power inlet box is designed for outdoor use and can be hardwired directly to a manual transfer switch or transfer panel, eliminating need for cords running through windows or doors. This raintight unit includes an NEMA L14-20P flanged inlet plug, inlet cover, four combination 1/2-and 3/4-inch knockouts, one on each side, bottom and back. The power inlet box is rated for 20A@125/250VAC. The exclusive patented design provides generous wiring space and facilitates rough-in.

  • NEMA L14-20 configuration
  • Removable face for fast installation
  • cULus Listed
  • 5 year warranty

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.

Specifications

Dimensions

Details

Warranty / Certifications

More Products With These Features

Search

Customer Questions & Answers

4 Questions5 Answers

Customer Questions & Answers

20-Amp Power Inlet Box,
20-Amp Power Inlet Box,

Ask your questions. Share your answers.



Clear Search Term


Sort By:
This question is from 20-Amp Power Inlet Box,

2 answers

Do you have other modles

This question is from 20-Amp Power Inlet Box,
Asked by
Rich
August 11, 2013
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers (2)

Asked by
Rockfall, Middlefield, CT 06481, USA
Read all my Q&A
November 8, 2013
Answer:
Most of the local HD stores in my area only stock the 30A (Reliance PB-30) model. The 20A (PB-20) I had to get from HomeDepot.com
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

August 12, 2013
Answer:
Yes, there is a 30 amp model PB30 (internet no. 202213702) and 50 amp model PB50 (internet no. 202216493). There is also a 30 amp model PR30 (internet no. 202216494) with circuit breaker protection built in if neccessary.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0
This question is from 20-Amp Power Inlet Box,

1 answer

Is this unit weather proof while in use or only when closed?

This question is from 20-Amp Power Inlet Box,
Asked by
Read all my Q&A
September 6, 2016
Description says water tight but cover does not close over the plug while in use like most outdoor weather proof boxes.
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answer (1)

September 6, 2016
Answer:
Water will not get in even when the cover is open and a connector is inserted. This inlet box does not have a cover that closes over the connector because those "while in use" requirements apply only to power outlets, not to inlets like this one.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0
This question is from 20-Amp Power Inlet Box,

1 answer

electrical recepticles

This question is from 20-Amp Power Inlet Box,
Asked by
Bethlehem, PA
Read all my Q&A
May 23, 2016
I am searching for a male plug to mount to the outside of a cargo trailer to plug and extension cord into to power a charger/maintainer.
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answer (1)

May 24, 2016
Answer:
This product is a power inlet box intended to connect a portable generator to household wiring. It is probably not appropriate for your application.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0
This question is from 20-Amp Power Inlet Box,

1 answer

Can it handle 30A? Is that legal?

This question is from 20-Amp Power Inlet Box,
Asked by
USA
Read all my Q&A
May 7, 2016
I want to put in 30 amp wiring ready to use either a 20 or 30 amp generator.
I can find a twist-lock adapter to hook a 30 amp generator to a 20 amp connection,
always in stock along with the cords by the generators,
but I don't see an adapter for hooking a 20 amp generator to a 30 amp house connection.

That would seem to imply that I need to install a smaller inlet like this, if it can
legally handle 30 amps, and use the 30-amp-source-to-20-amp-sink adapter.

What's the best way to go?
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answer (1)

May 11, 2016
Answer:
Do not connect a 30 amp generator to a cord or inlet box rated for 20 amps. For an installation that can use any generator up to 30 amps, install a 30 amp power inlet box (Reliance Controls model PB30, internet no. 202213702) and 10 AWG wire. To connect a 20 amp generator to the 30 amp inlet box there are a couple options. First, many 20 amp generators have a four conductor outlet rated at 30 amps. In Read More
Do not connect a 30 amp generator to a cord or inlet box rated for 20 amps. For an installation that can use any generator up to 30 amps, install a 30 amp power inlet box (Reliance Controls model PB30, internet no. 202213702) and 10 AWG wire. To connect a 20 amp generator to the 30 amp inlet box there are a couple options. First, many 20 amp generators have a four conductor outlet rated at 30 amps. In this case all you need is a standard 30 amp cord. If the four conductor outlet on the generator is 20 amps there are two options: 1. Use a 20 amp cord and replace the connector on the inlet box end with a 30 amp connector that matches the inlet box (internet no. 202216503), or 2. Use a 30 amp cord and replace the plug on the generator end with a 20 amp connector that matches the generator (internet no. 202216502). Read Less
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0
1 of 1
  • 2016-10-30 T23:26:19.857-05:00
  • bvseo_lps, prod_bvqa, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasquestionsanswers
  • loc_en_US, sid_202216492, prod, sort_default
1 of 1
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 72ms
  • QUESTIONS, PRODUCT

Customer Reviews

20-Amp Power Inlet Box, is rated 4.9 out of 5 by 7.
Rated 5 out of 5 by from Good Purchase experience. Good Quality Power Box. Speedy delivery and impressive return options. Very satisfied with this item.
Date published: 2011-12-07
Rated 5 out of 5 by from easy to order on time delivery! This web site isite is so easy to navigate!! Product was top of the line, reliance. Home depot restocks a lot quicker than Lowes.More helpful too. Quick shiping
Date published: 2011-10-04
Rated 5 out of 5 by from Well made,easy to install. Inlet box is perfect, easy to install on wall as well as installation of wiring.
Date published: 2011-12-14
Rated 5 out of 5 by from It was as good as stated. No issues. Would order this product again. Ordered and received within two weeks. Excellent service.
Date published: 2012-01-03
Rated 5 out of 5 by from Excellent Quality This is a very nice power inlet box. It is fairly small in comparison to some that I have installed and is of a higher quality. It makes for a nice clean looking installation for connecting your generator cable. I just wish they would bring the price down...
Date published: 2013-11-08
Rated 5 out of 5 by from Exactly what I was looking for! The area I live in, the electricity goes out WAY to much. Connecting these inlet boxes to my main electric box and outside makes things alot easier when I have to use my generator.
Date published: 2011-09-27
Rated 4 out of 5 by from Product satisfied my requirments Product worked well. HD had the part in stock. Shipping was quick
Date published: 2012-02-14
