Model # PK50

Internet #202216491

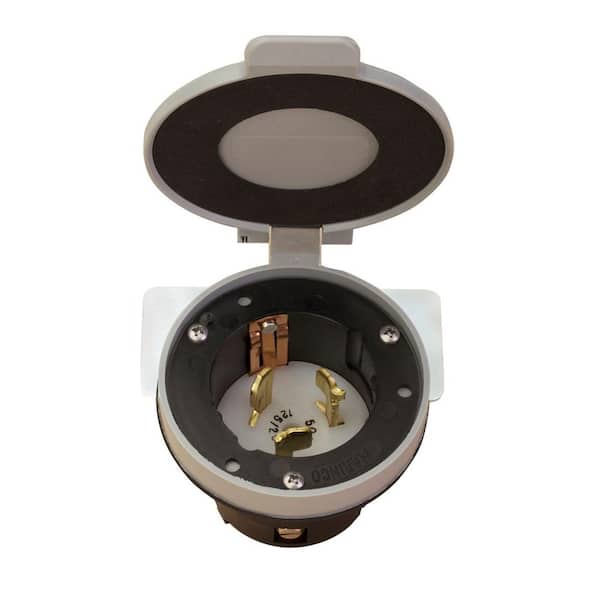

Reliance Controls 50 Amp Power Inlet Kit
0815181010089

Reliance Controls

50 Amp Power Inlet Kit

$6499 /each

Product Overview

This Power Inlet Kit permits fast connection of a portable generator of up to 12,500 running Watts to a manual transfer panel or generator-ready load center. Suitable for installation into 2-1/2 - in. knockout on any indoor or outdoor panel. The CS6365 configuration is rated 50 Amps at 125/250 Volts and matches the Reliance model LL550C cord connector.
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

This Power Inlet Kit permits fast connection of a portable generator of up to 12,500 running Watts to a manual transfer panel or generator-ready load center. Suitable for installation into 2-1/2 - in. knockout on any indoor or outdoor panel. The CS6365 configuration is rated 50 Amps at 125/250 Volts and matches the Reliance model LL550C cord connector.
  • CS6365 configuration
  • Easy installation in any 2.5 inch knockout
  • Cord-connect a genertor to any transfer panel
  • UL Listed

Product Overview

Model #: PK50
Internet #: 202216491

This Power Inlet Kit permits fast connection of a portable generator of up to 12,500 running Watts to a manual transfer panel or generator-ready load center. Suitable for installation into 2-1/2 - in. knockout on any indoor or outdoor panel. The CS6365 configuration is rated 50 Amps at 125/250 Volts and matches the Reliance model LL550C cord connector.

  • CS6365 configuration
  • Easy installation in any 2.5 inch knockout
  • Cord-connect a genertor to any transfer panel
  • UL Listed

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar

Price
$34.99 /each
$64.99 /each
$67.99 /each
$84.99 /each
Name 20 Amp Power Inlet Kit 50 Amp Power Inlet Kit 50 Amp Power Inlet Box 30-AmpPower Inlet Box With Circuit Breaker
Brand Reliance Controls Reliance Controls Reliance Controls Reliance Controls
Ratings (2) (3) (18) (7)
Maximum Amperage (amps) 20 50 50 30
Voltage (volts) 125/250 125/250 120/240 120/240
View Product View Product View Product View Product

Specifications

Dimensions

Product Depth (in.)
2.5
Product Height (in.)
4.5
Product Width (in.)
3.5

Details

Electrical Product Type
Distribution Load Center / Breaker Accessory
Maximum Amperage (amps)
50
Product Weight (lb.)
0.5lb
Returnable
90-Day
Voltage (volts)
125/250

Warranty / Certifications

Certifications and Listings
1-UL Listed,cUL Listed
Manufacturer Warranty
5 years

Specifications

Dimensions

Product Depth (in.)
2.5
Product Height (in.)
4.5
Product Width (in.)
3.5

Details

Electrical Product Type
Distribution Load Center / Breaker Accessory
Maximum Amperage (amps)
50
Product Weight (lb.)
0.5lb
Returnable
90-Day
Voltage (volts)
125/250

Warranty / Certifications

Certifications and Listings
1-UL Listed,cUL Listed
Manufacturer Warranty
5 years

Questions & Answers

What power cord do I need with a PK50 inlet kit?

Asked by: Frank
The connector that fits the PK50 inlet is Reliance Controls part no. LL550C, HomeDepot.com internet no. 202216505. You will need to assemble a cord with this connector on one end and the appropriate generator plug on the other end.
Answered by: RelianceControlsAnswers
Date published: 2016-09-08

What size wire do I need? 6/4? Can I use the same wire in the PK30?

Asked by: KS
Most installers would use 8 AWG wire (4 conductors) with this power inlet. However, electrical codes vary from state to state and you should check with your local authorities. The PK30 would use a 10 AWG wire.
Answered by: RelianceControlsAnswers
Date published: 2016-02-01

does the outlet come in 30 amp

Asked by: fishnet
Yes, the Reliance Controls part no. for a 30 Amp Power Inlet Kit is PK30 and the internet part no. is 202216490.
Answered by: RelianceControlsAnswers
Date published: 2015-09-17
  • y_2017, m_10, d_21, h_24CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.3
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_3
  • loc_, sid_202216491, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 19ms
  • QUESTIONS, PRODUCT

Customer Reviews

50 Amp Power Inlet Kit is rated 4.7 out of 5 by 3.
Rated 5 out of 5 by from 5 Star Review Rating provided by a verified purchaser
Date published: 2017-07-19
Rated 5 out of 5 by from Great Product Good Quality and allowed me to install in a larger box to make wiring much easier.
Date published: 2017-04-07
Rated 4 out of 5 by from 50 Amp Power Inlet Kit Well made. Facilitates a professional looking install on your panel. 50 amp generator cord twists right in and stays secure. Home Depot shipped item quickly. I would buy again, though it is a bit pricy.
Date published: 2011-10-23
