0851890000454

Reliance Controls

Model # L1430P

Internet # 202216504

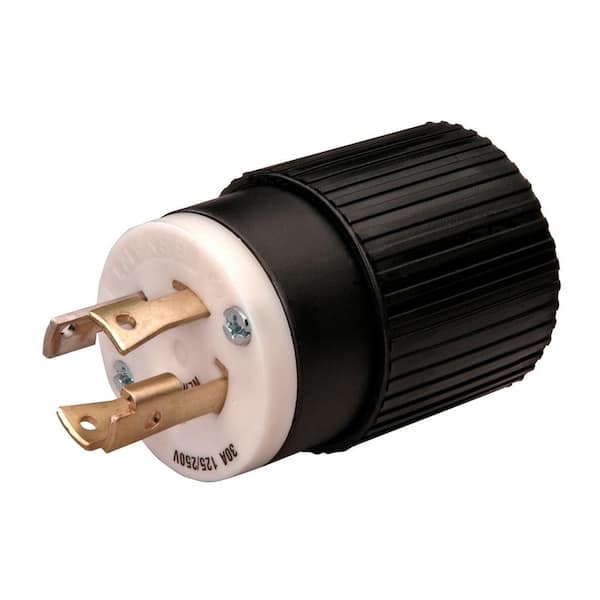

Twist Lock 30-Amp 125/250-Volt Plug

$18.99 /each
  • Male L1430 plug connects to L1430R outlets on generators
  • Rated for up to 8 AWG copper (4-wire)
  • Clearly marked terminals for easy identification and assembly

Frequently Bought Together

Product Overview

This heavy-duty cord plug is for use with portable generators up to 7500-Watt. NEMA L14-30 configured and UL listed, the L1430P features a 5-year limited warranty. Rated 30 amps at 125/250-Volt.

  • Rugged and durable
  • NEMA L14-30P configuration
  • 5 year limited warranty
  • UL listed

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents.  Download a free copy from the Adobe Web site.

Specifications

Dimensions

Product Depth (in.)
Product Height (in.)
3.75
Product Width (in.)

Details

Color Family
Black
Color/Finish
Black
Commercial / Residential
Commercial / Residential
Connection Type
Locking plug
Electrical Features
No Additional Features
Electrical Product Type
Plug/Connector
Material
Thermoplastic
Maximum Amperage (amps)
30
Package Quantity
Plug/Connector
Plug
Product Weight (lb.)
0.3 lb
Returnable
90-Day
UL Listing
1-UL Listed
Voltage (volts)
120/240

Warranty / Certifications

Certifications and Listings
1-UL Listed
Manufacturer Warranty
5 years

More Products With These Features

Search

Customer Questions & Answers

6 Questions6 Answers

Customer Questions & Answers

Twist Lock 30-Amp 125/250-Volt Plug
Twist Lock 30-Amp 125/250-Volt Plug

Ask your questions. Share your answers.



Clear Search Term


Sort By:

1 answer

Can I use this for a three prong dryer?

This question is from Twist Lock 30-Amp 125/250-Volt Plug
Asked by
Read all my Q&A
July 22, 2016
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answer (1)

July 25, 2016
Answer:
This is a four wire, 120/240 plug configuration. It is probably not the proper plug for your dryer.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answer (1)

July 10, 2016
Answer:
The ground plug that points out is probably a 20 amp L14-20 configuration (check the receptacle to be sure). This plug with the ground that points in is a 30 amp L14-30 configuration. There is no adapter to go from one to the other, but you can replace the plug on your cord with a 20 amp plug like Reliance Controls model L1420P, internet no. 202216502. Simply cut off the end that doesn't match and Read More
The ground plug that points out is probably a 20 amp L14-20 configuration (check the receptacle to be sure). This plug with the ground that points in is a 30 amp L14-30 configuration. There is no adapter to go from one to the other, but you can replace the plug on your cord with a 20 amp plug like Reliance Controls model L1420P, internet no. 202216502. Simply cut off the end that doesn't match and attach the proper plug (or connecter). Read Less
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

1 answer

What color wire goes to each terminal

This question is from Twist Lock 30-Amp 125/250-Volt Plug
Asked by
Read all my Q&A
April 30, 2016
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answer (1)

May 2, 2016
Answer:
Generally, the neutral (white wire) goes to the terminal marked "W", the ground (green wire) goes to the terminal marked "G", and the hots (red and black wires) go to the terminals marked "X" and "Y". The colors of wire in your cord may vary.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

1 answer

what is the 4th connector for?

This question is from Twist Lock 30-Amp 125/250-Volt Plug
Asked by
Woodleaf, NC
Read all my Q&A
August 30, 2015
I can only find 240V 10/3 wire. I need this to hook up to my generator for my well pump.
User submitted photo
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answer (1)

September 1, 2015
Answer:
This plug has two hot leads, a neutral, and a ground. Most 10/3 wire also has a ground wire for a total of four wires.
+4points
4out of 4found this answer helpful.
Was this helpful?helpful4unhelpful0
2 »
  • 2016-07-27 T14:57:32.876-05:00
  • bvseo_lps, prod_bvqa, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasquestionsanswers
  • loc_en_US, sid_202216504, prod, sort_default
2 »
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 39ms
  • QUESTIONS, PRODUCT

Customer Reviews

Rated 4.3 out of 5 by 6 reviewers.
Rated 1.0 out of 5.0 by Cord grip design stinks The cord grip design on this connector belongs on a cheap 15 amp extention cord. September 22, 2015
Rated 5.0 out of 5.0 by Twist lock plug model L1430P This plug is very sturdy. It is fairly easy to assemble even if one has only limited experience with these types of units. The only problem I encountered with assembly was with the built-in cable clamp. I was using no. 10 four wire lead cable for my feed into my transfer switch. This cable is approximately 3/4 of an inch in diameter, including insulation. The built-in cable clamp on this unit was too small to properly fasten my size cable to the plug without potentially cutting the insulated sheathing as the screws for the clamp get tightened. However, with a little bit of filing and grinding, the inside semi-circles of the cable clamp were easily increased to incorporate my no. 10 electrical cable and hold it securely to the plug. September 30, 2014
Rated 5.0 out of 5.0 by Good quality connector It would have been nice to have had it in stock, on the shelf, during the hurricane instead of my needing to order it and receive it 2 weeks after. My fault for procrastinating and not getting a generator setup weeks in advance. October 4, 2011
Rated 5.0 out of 5.0 by High quality product Very rugged design and easy to install. I use it with my 7000 Watt emergency generator and it works great. Only negative is that it took a few days to get it since it must be ordered. October 22, 2011
Rated 5.0 out of 5.0 by Has all the desired features The part was just what was needed to complete the the set up for the wiring of a standby generator. February 13, 2012
Rated 5.0 out of 5.0 by commercial grade Made a professional looking cable using 10 gauge wire. December 19, 2011
